Earlier in the month, I hosted a meetup aboard Iowa and John Schilling, CatCube and Randy M came to visit. One of the highlights was a chance to visit Turret 1, which was opened up since my last visit to the ship two years ago. We got in through the hatch on the back of the turret, although I didn't think to take pictures.

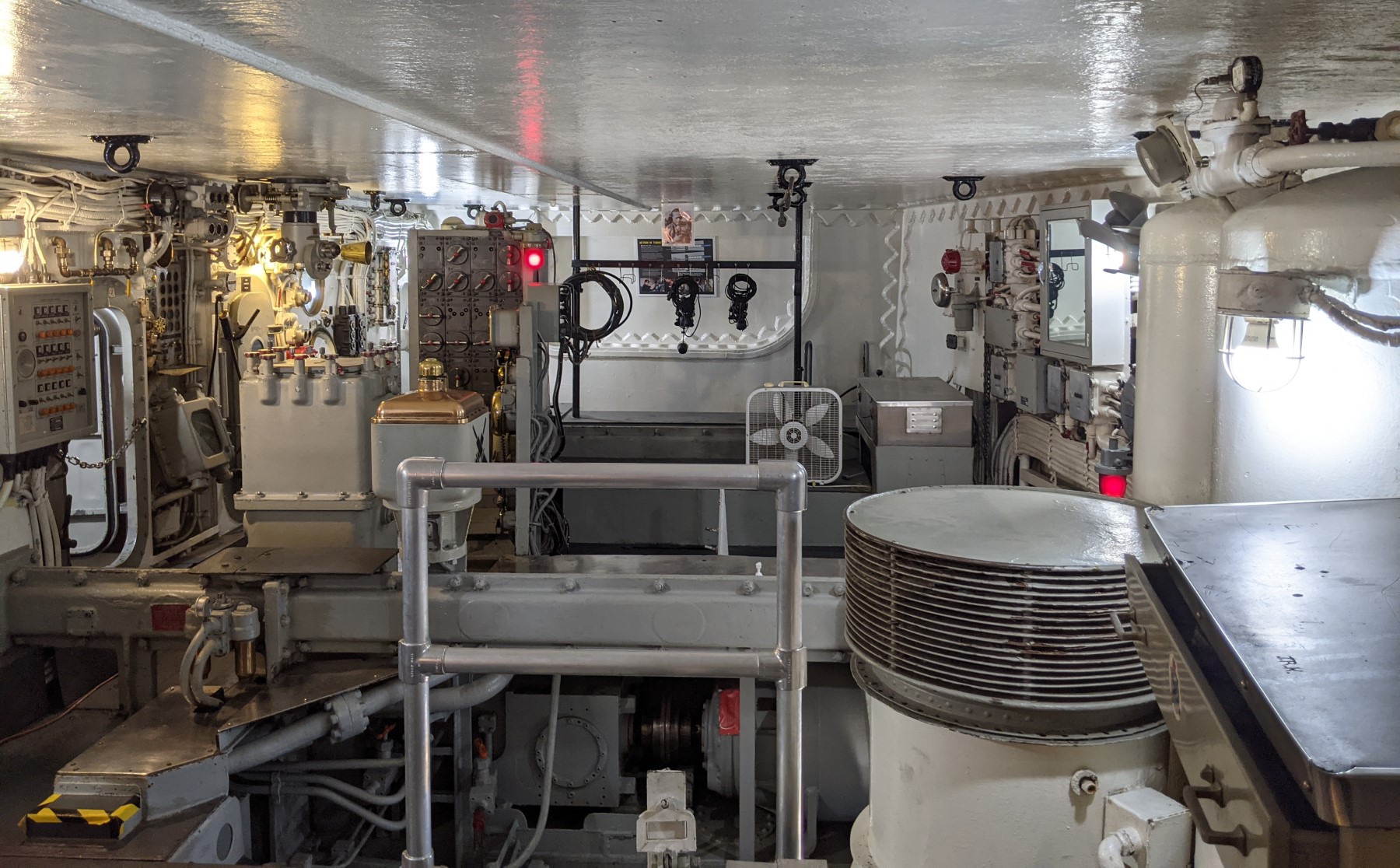

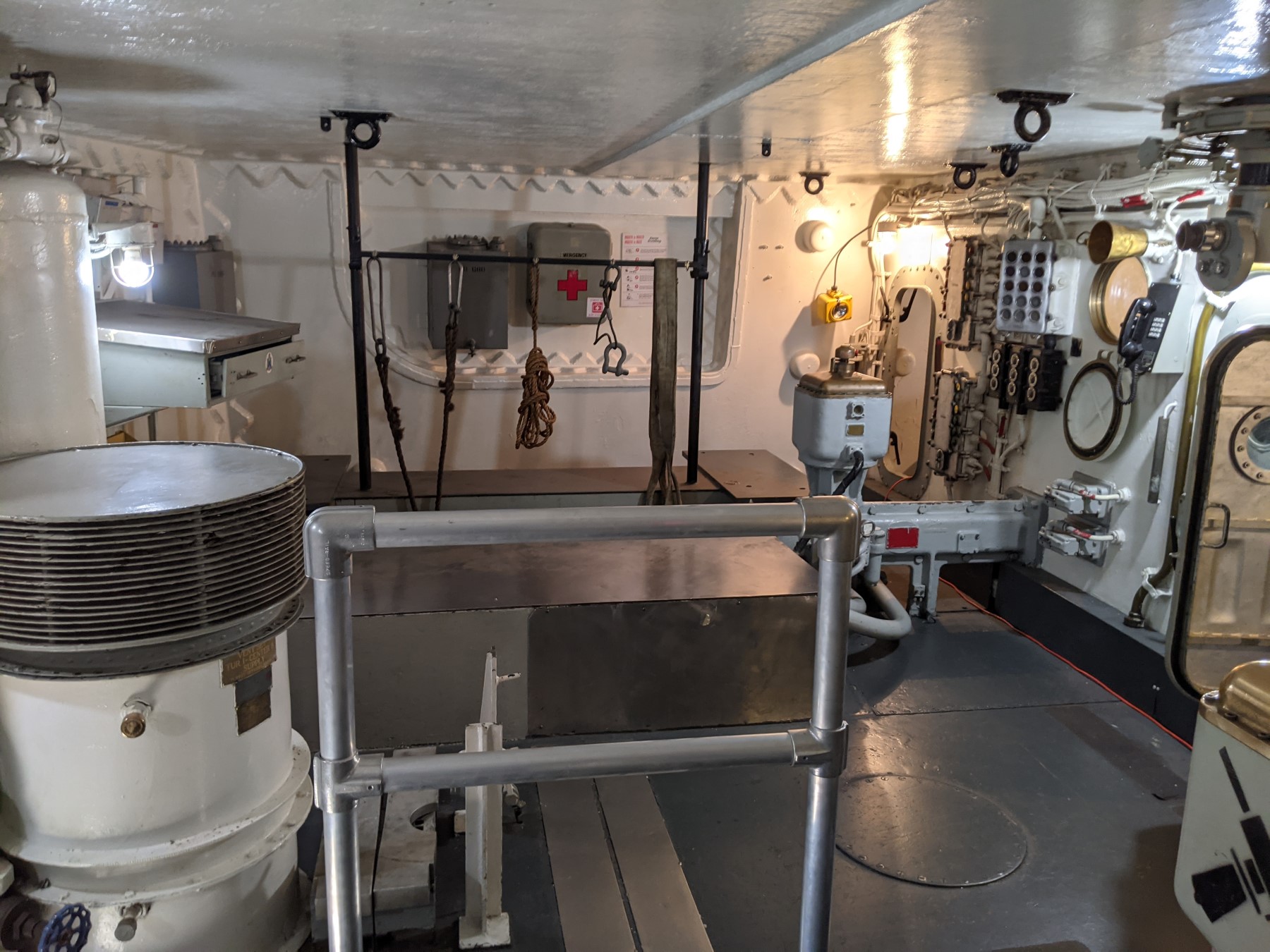

The inside of Turret 1

The first thing I noticed was how spacious the inside of the turret was. This is the result of the rangefinder that was originally inside the turret being removed in the 1950s. This made it much more spacious than the previous turrets I've been in, most notably one aboard Massachusetts.

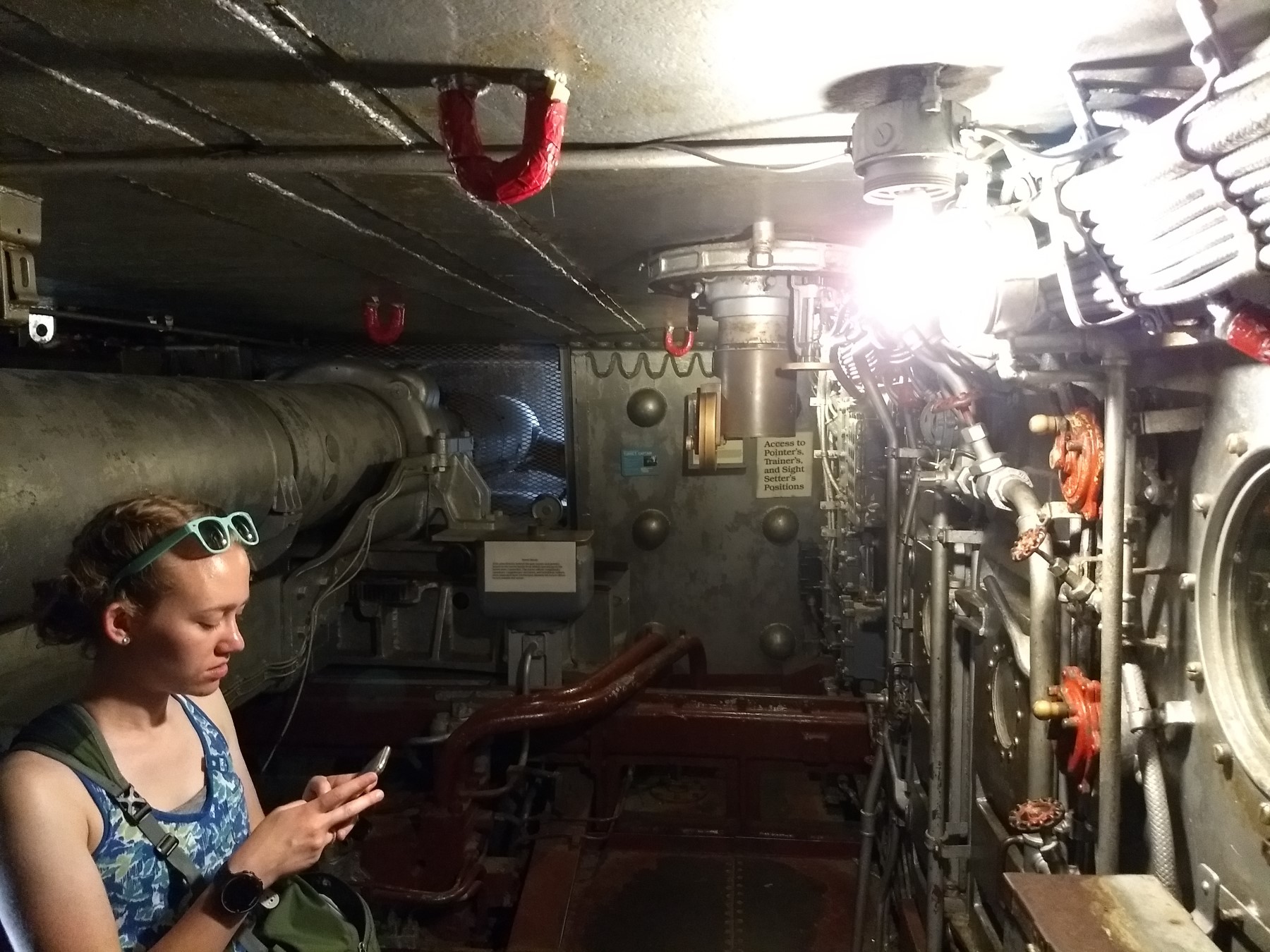

A similar view to the one above, but with a rangefinder and Sister Bean

Another general view, looking the other way

On both Iowa and Massachusetts, only the aft portion of the gunhouse was open, and you couldn't get right up around the gun breeches. (Massachusetts also had a magazine open, but I'll cover that separately.) But enough was open to give a reasonable view of the loading mechanism.

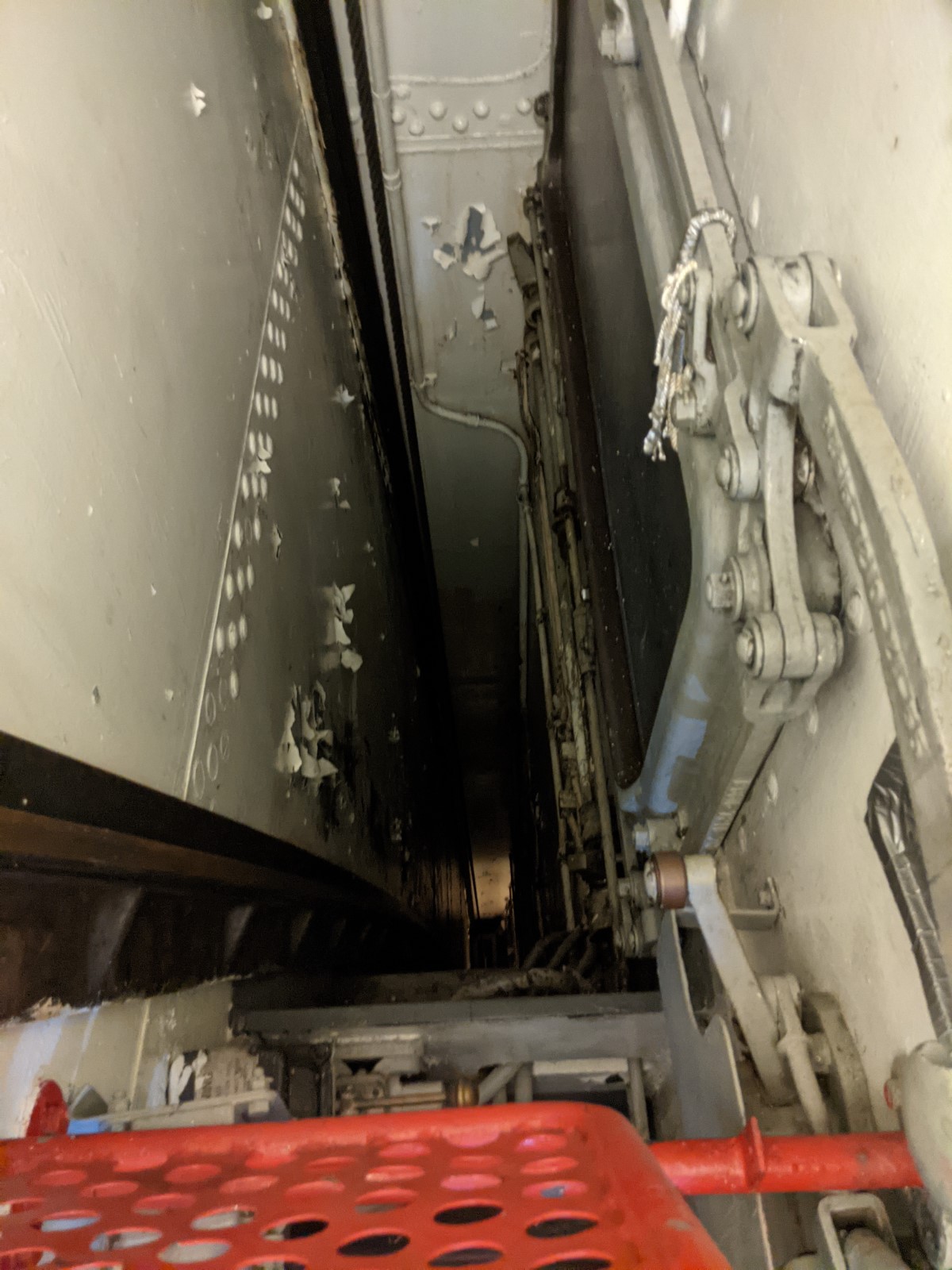

Powder comes up the powder hoist, seen here from the powder hoist operator's position

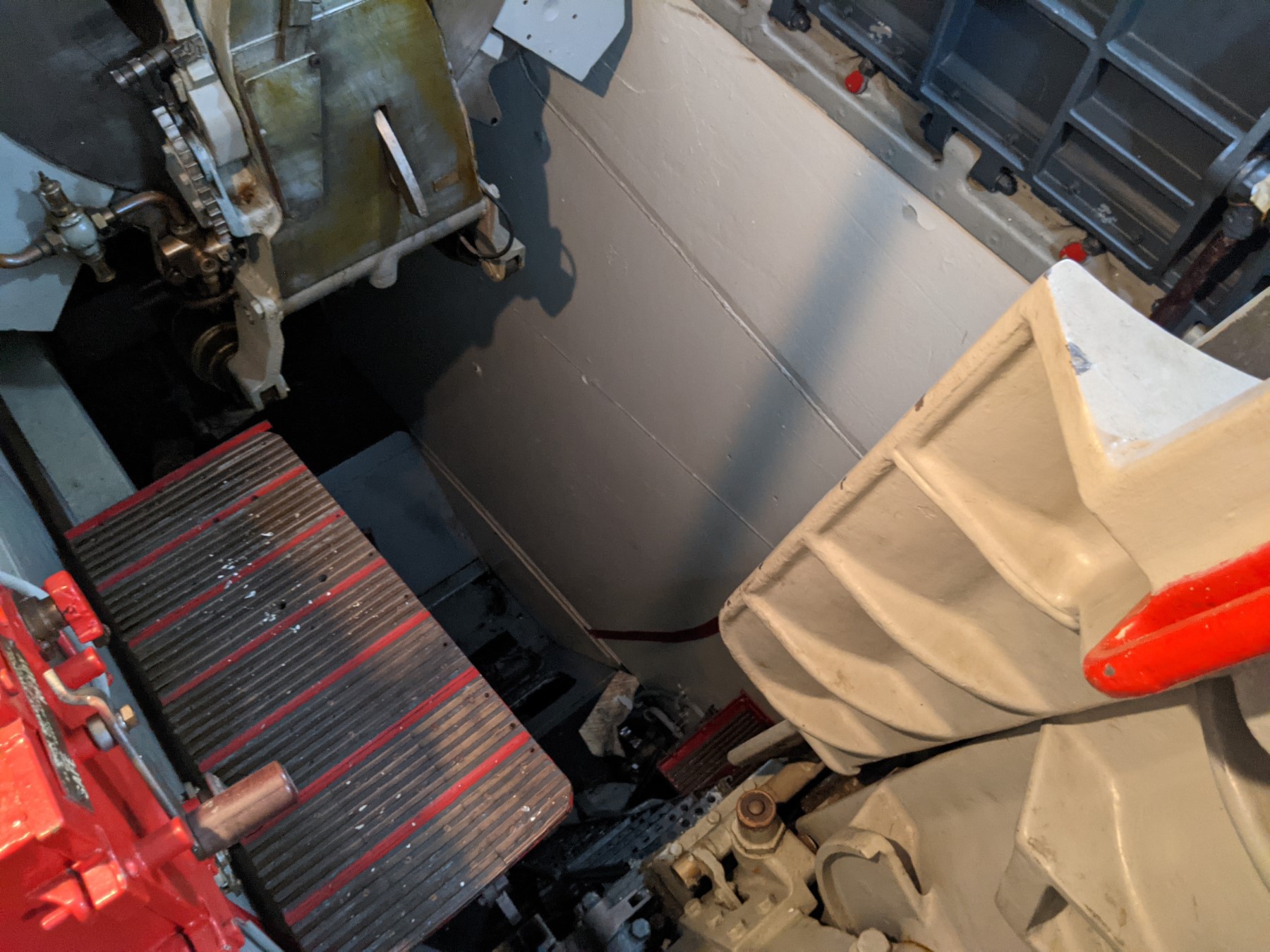

Shells come up the shell hoist...

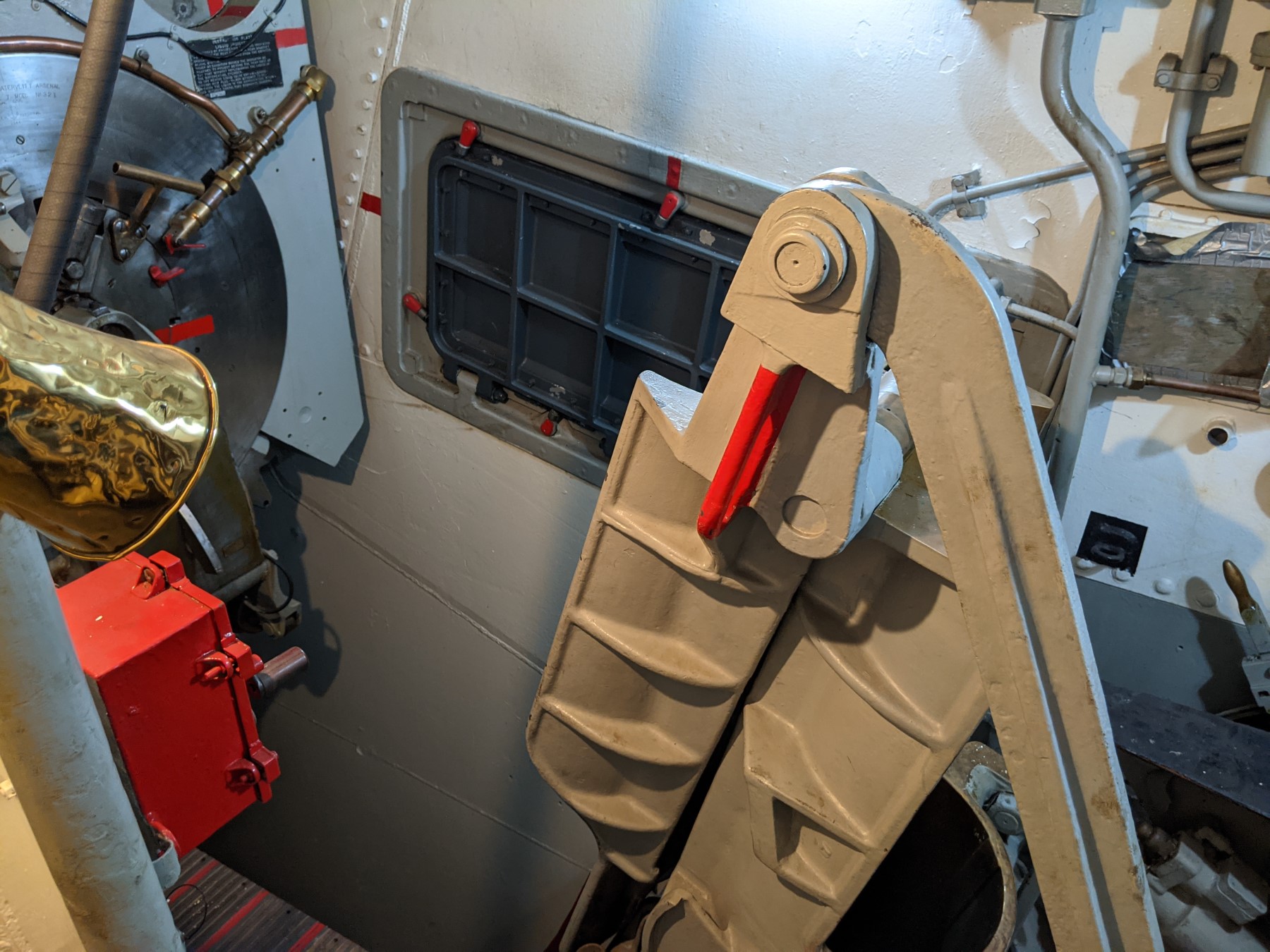

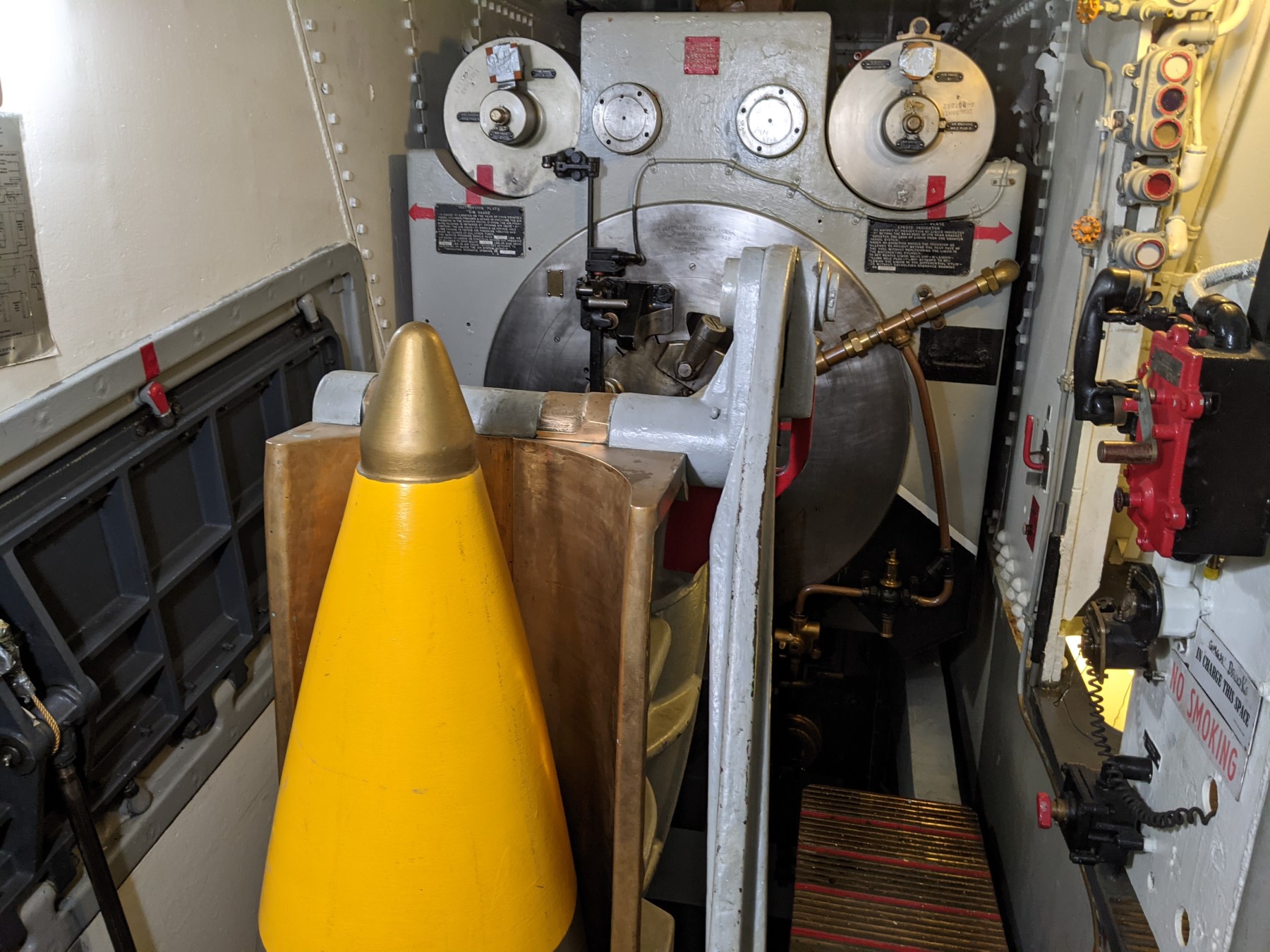

And are brought alongside the spanning tray, which then extends to align them with the breech for ramming

Powder comes out of the powder hoist through this hatch

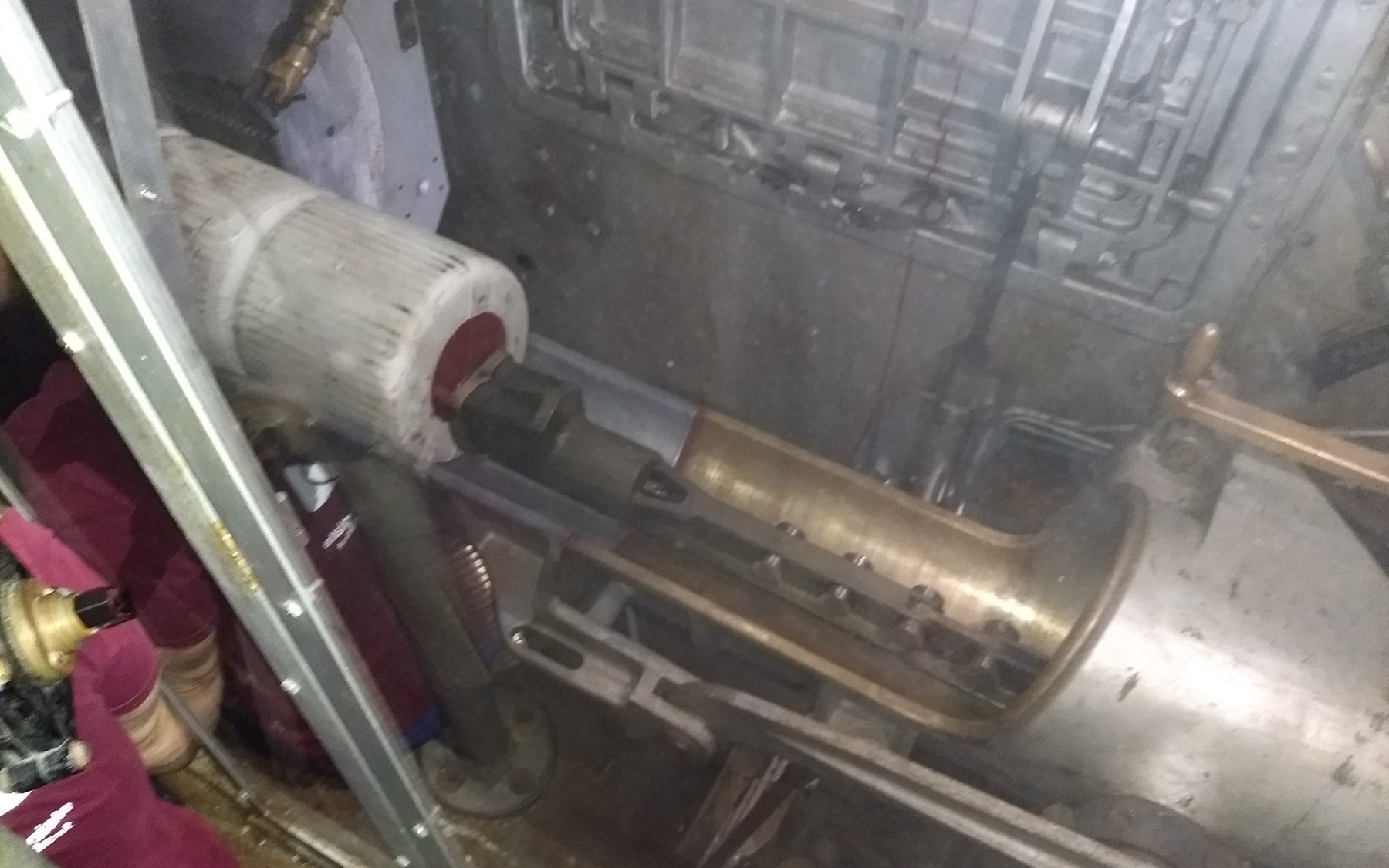

Falls onto the spanning tray (here aboard Massachusetts) and is rammed in behind the shell

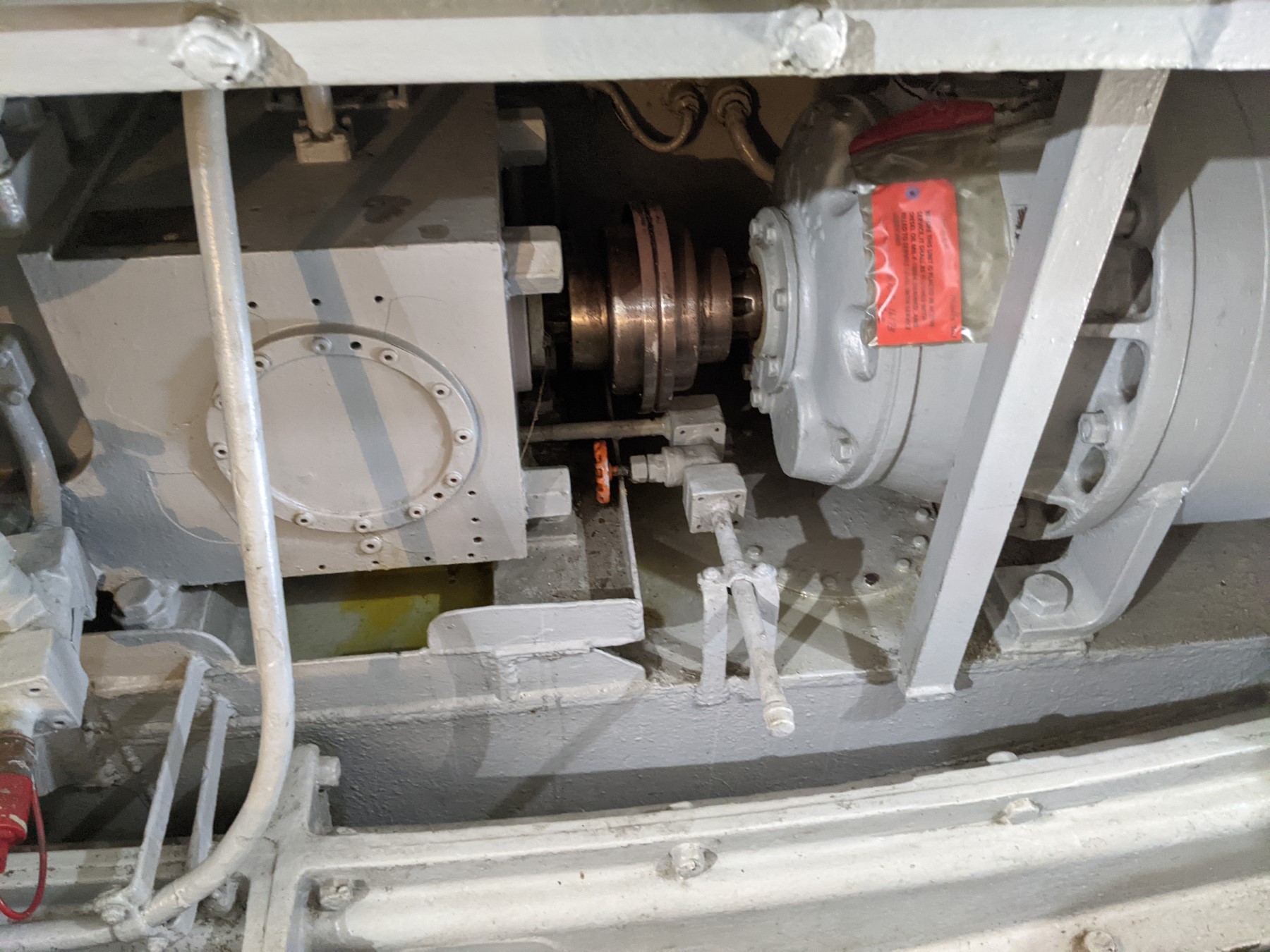

The motors that ram the shells into the guns are under the turret floor

Normally, the guns are fired by the central fire-control system, but in case of battle damage, the turret is capable of fighting on its own.

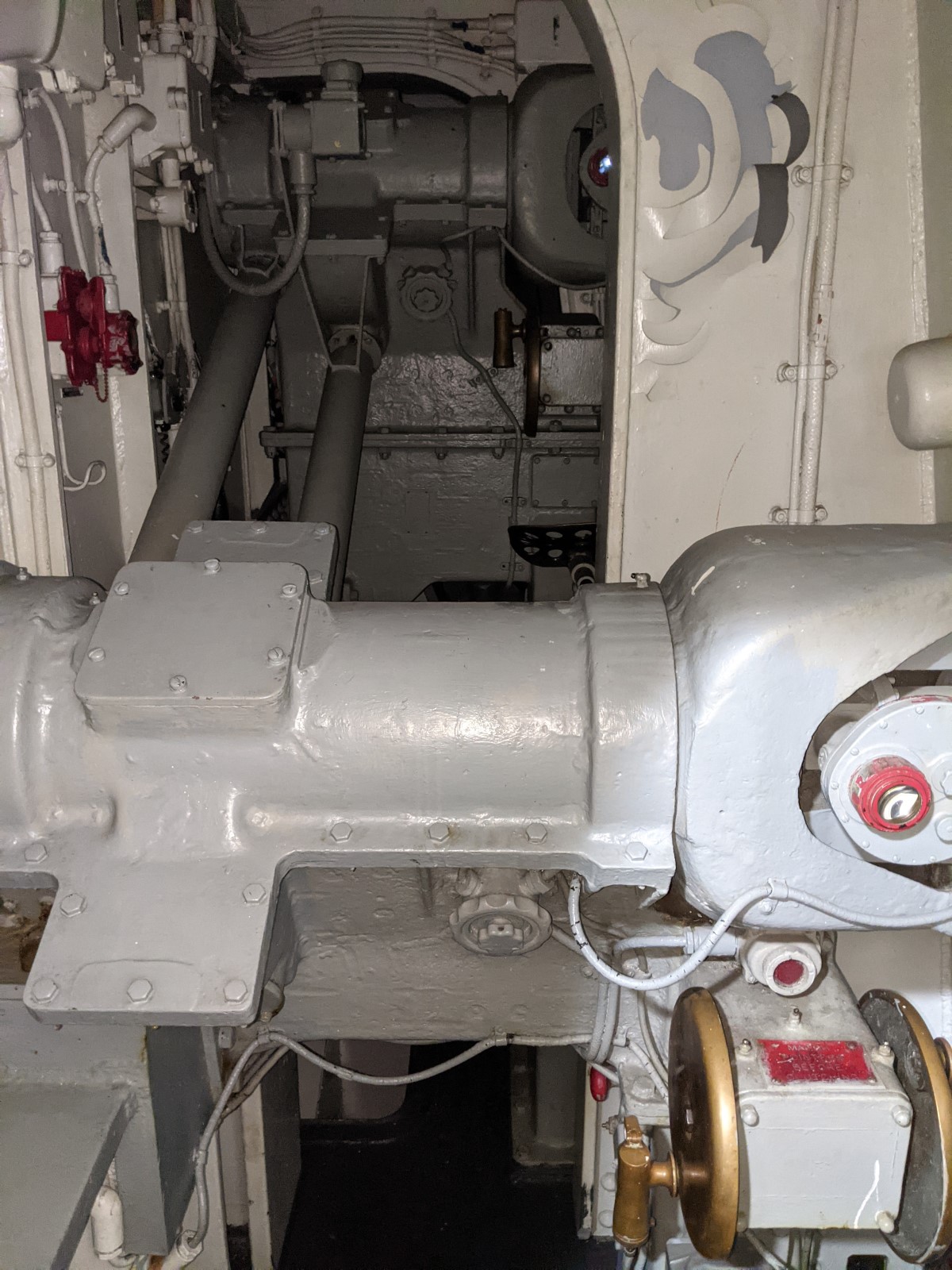

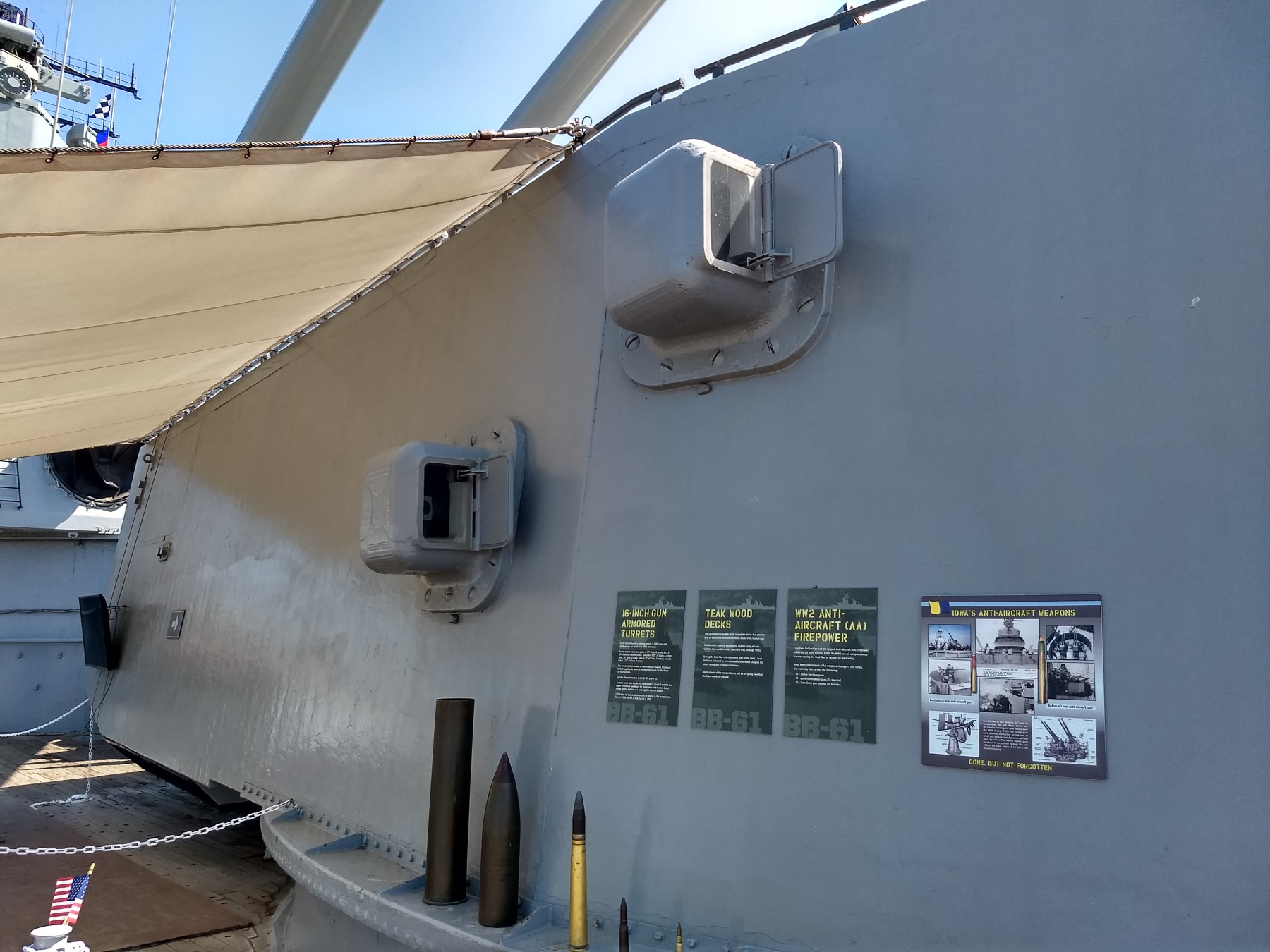

On each side of the turret, two scopes are fitted

They exclusively provide elevation and train data in case of loss of a connection with the director

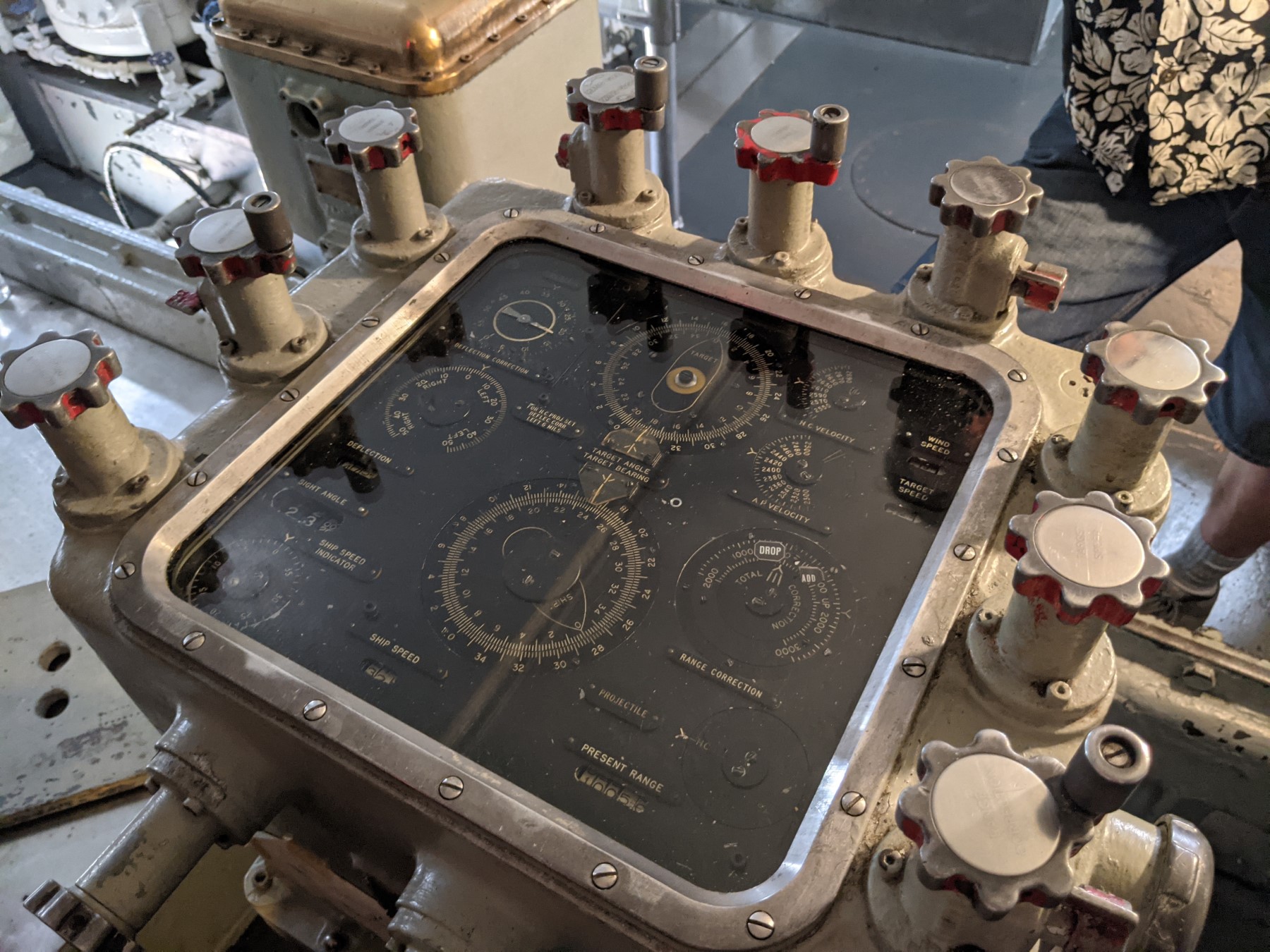

This data is fed to the turret computer, a smaller and simpler version of the main fire-control computer down in the plotting room

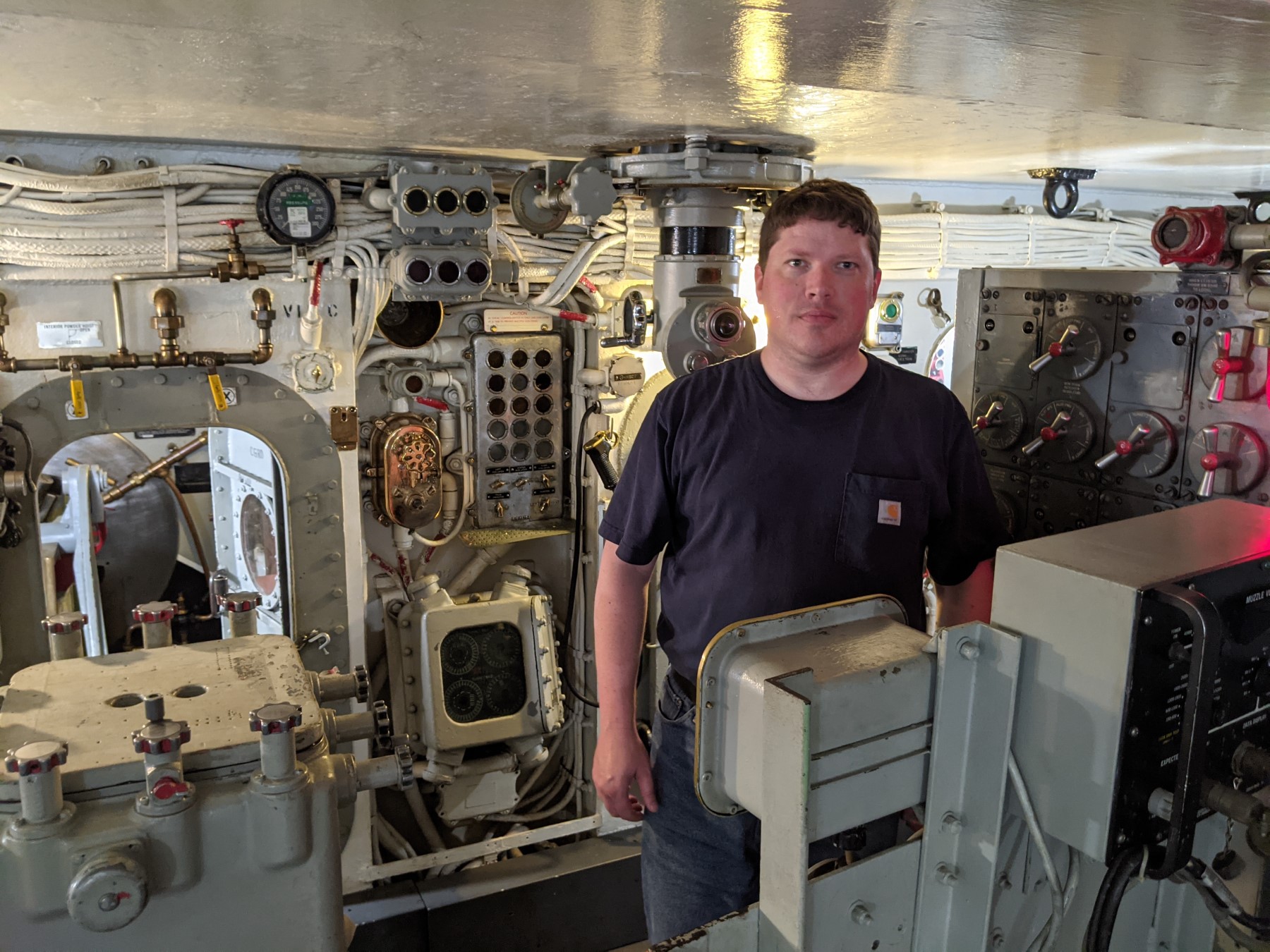

The turret captain (here portrayed by CatCube) will then fire the guns

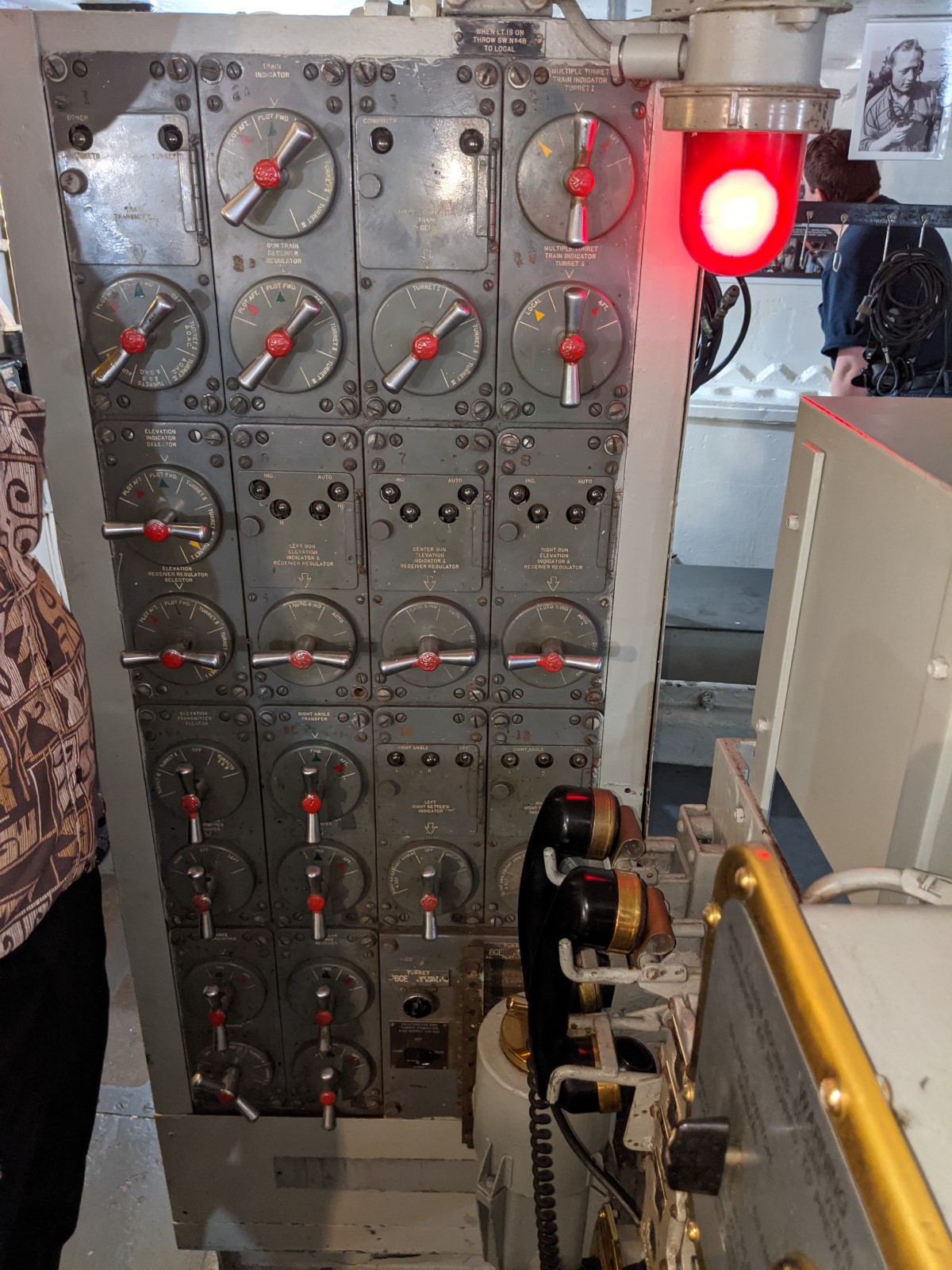

He sets what system controls the turret using this switchboard

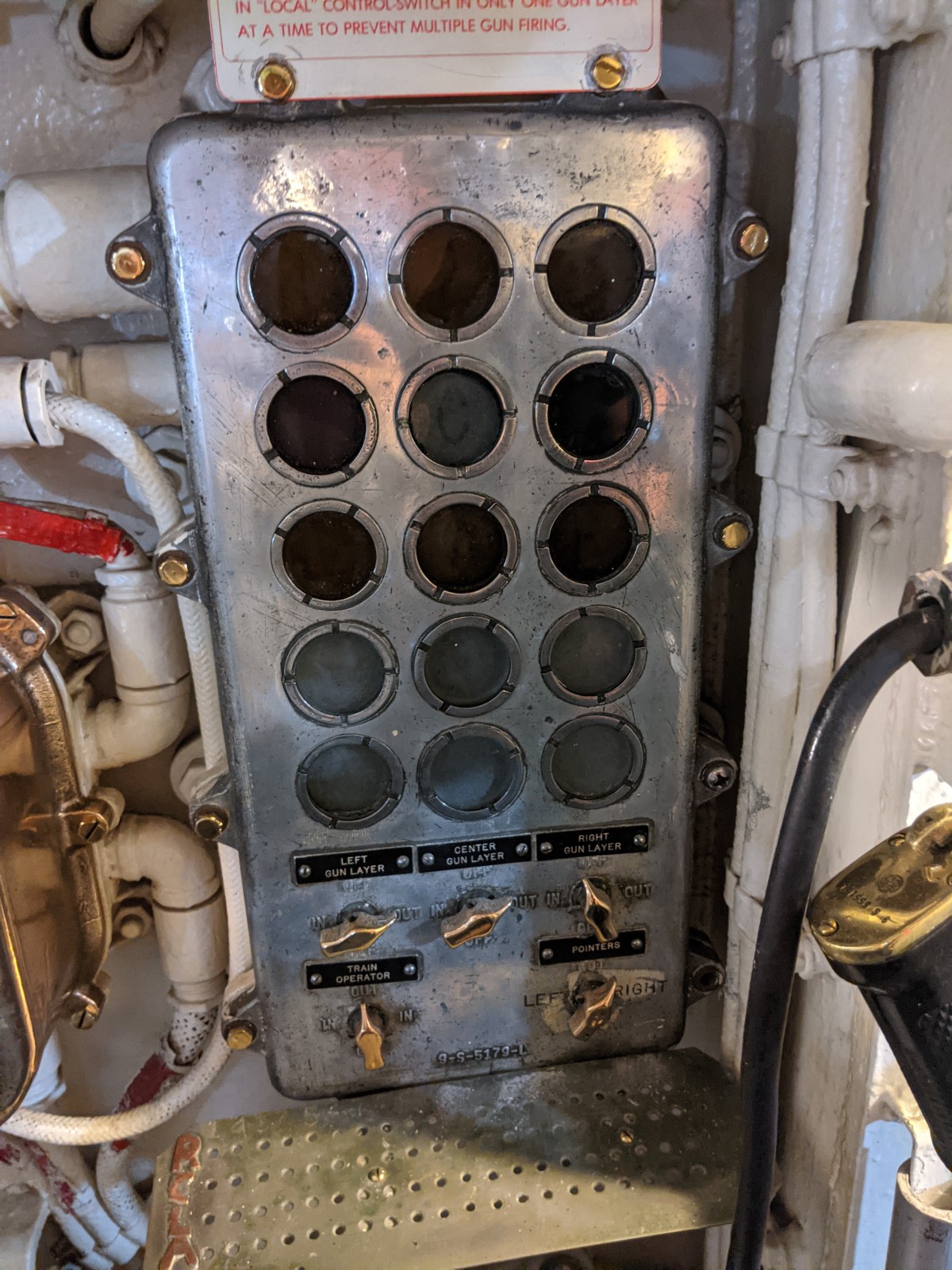

And can see the status of the various parts of the main armament using this indicator board
