The Nimrod Saga

For all of the disasters that bedevil American military procurement, we can always look to our closest ally, the UK, when we need to feel better about our ability to buy weapons. Twice in the last 40 years, the British have poured enormous sums of money into an airplane, and walked away empty-handed. To make matters worse, it was the same airplane both times, the Hawker Siddeley Nimrod.1 I thus feel confident awarding the Naval Gazing Worst Procurement Ever trophy to the Nimrod.

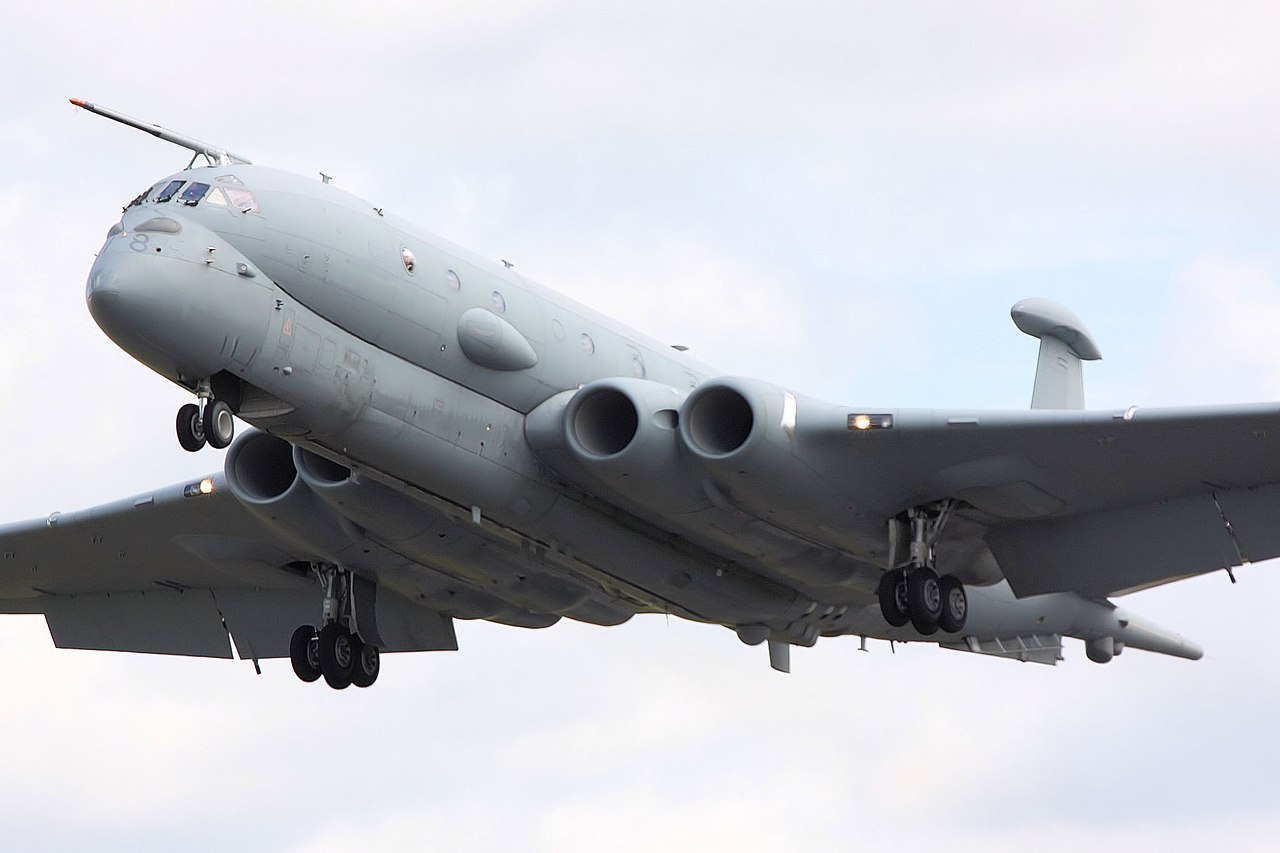

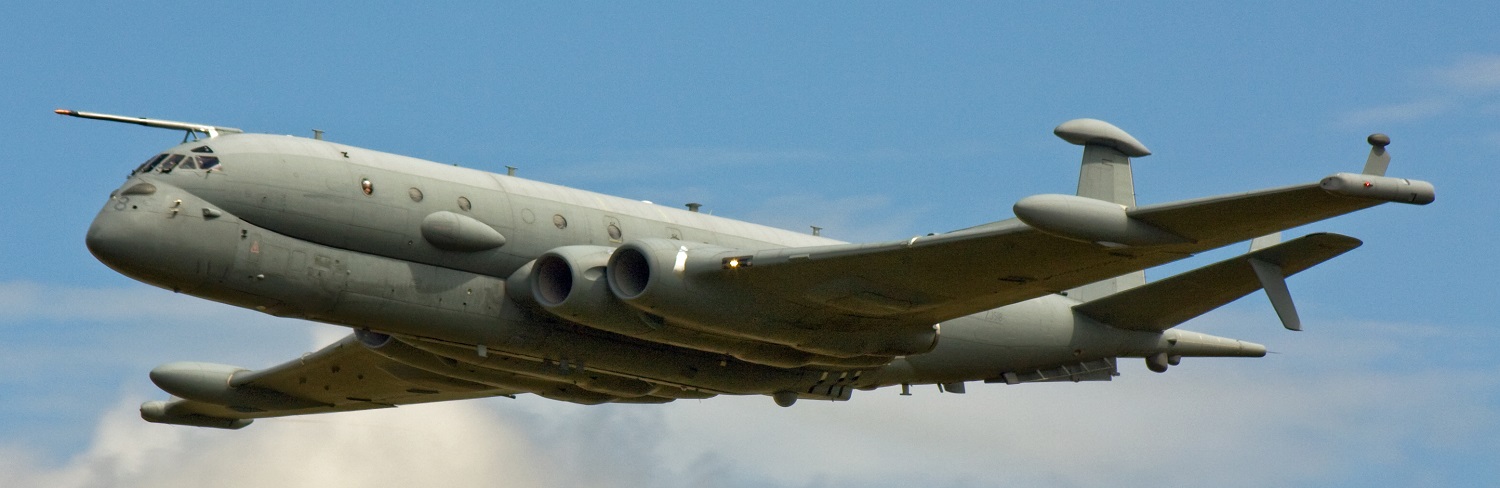

The Nimrod MRA4

The Nimrod2 was developed in the 60s from the De Havilland Comet, the world's first jet airliner, an airplane most famous for a series of crashes caused by fatigue cracking early in its career.3 But the Nimrod was based on a later Comet where they'd fixed that problem, and initially proved to be a reasonably good aircraft, being upgraded from the initial MR1 variant to the later MR2 maritime patrol and R1 signals intelligence versions.

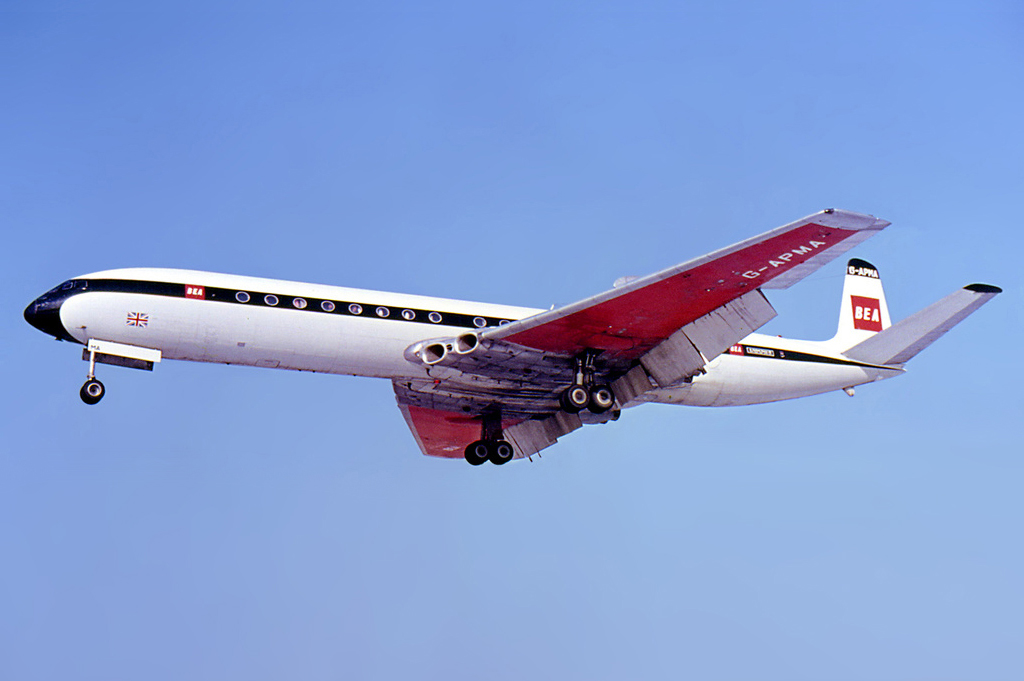

de Havilland Comet 4

Things began to go wrong in the mid-70s, when the British decided to introduce an AWACS4 aircraft to support their air defense efforts. They had several options. The E-2 Hawkeye and E-3 Sentry were both about to enter service with the USN and USAF respectively, and were rapidly proving themselves to have excellent radar systems during trials. The British could have had either aircraft, or bought their radar systems to integrate into an aircraft of their own. Or they could have only bought a few subcomponents, like the antenna or the radar transmitter itself, and built the rest domestically.

Nimrod MR1

They decided to take none of these options. Instead, they would produce an entirely new radar system. Instead of an American-style radome, separate antennas would be installed in the nose and tail, and the system would sweep through one, and then the other. This was far more expensive and much riskier than buying from the Americans, but it did produce a lot more jobs in the British defense industry, which was apparently the government's prime concern. In 1977, a contract was placed, making BAE and GEC-Marconi co-leads on the project to convert 11 surplus Nimrod MR1 airframes to the new configuration.

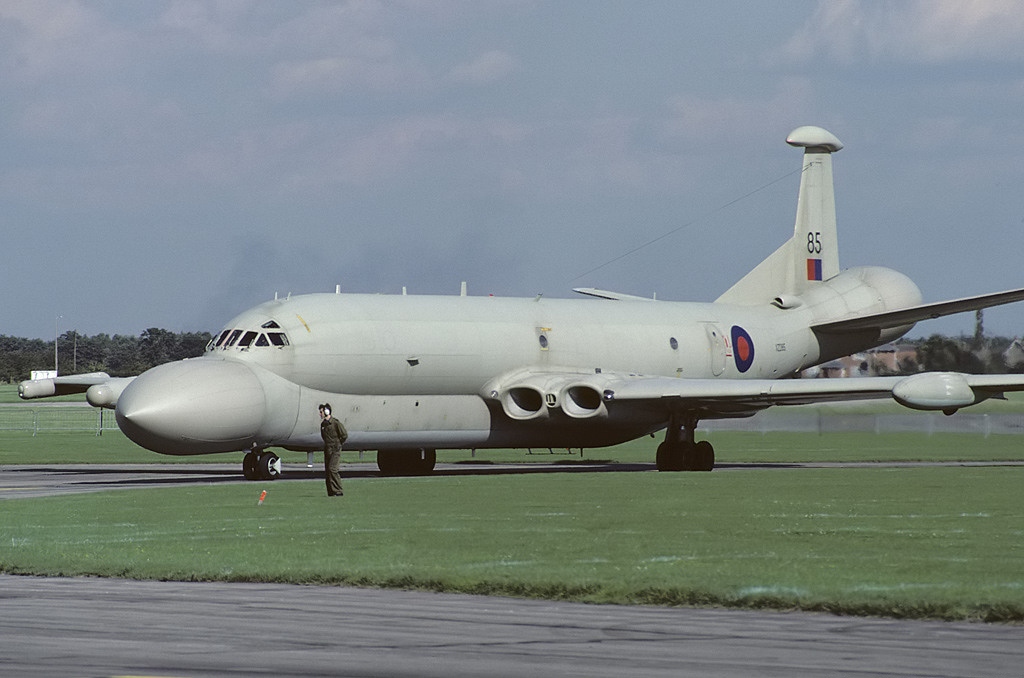

Nimrod AEW3

As might be expected based on that kind of decision-making, the resulting airplane had problems. The computer system chosen wasn't powerful enough to integrate all of the data, particularly the area where the nose and tail radars overlapped. It was also horribly unreliable, with a mean time between failures of only two hours, in a system which took 2.5 hours to load the mission data from the tape. The Nimrod, considerably smaller than the American Sentry, was unable to carry more equipment to solve this problem. Different electronics racks were earthed to different points in the airframe, and the resulting potential differences caused false tracks to appear, overloading the computer even more. To make matters worse, most of the electronics units weren't interchangeable for reasons that were never entirely clear. If one unit failed, several spares had to be tried before one that worked was found. The only system that functioned reliably was the IFF system, which could only track friendly aircraft and airliners. This was a major handicap in an aircraft intended to detect Soviet bombers.

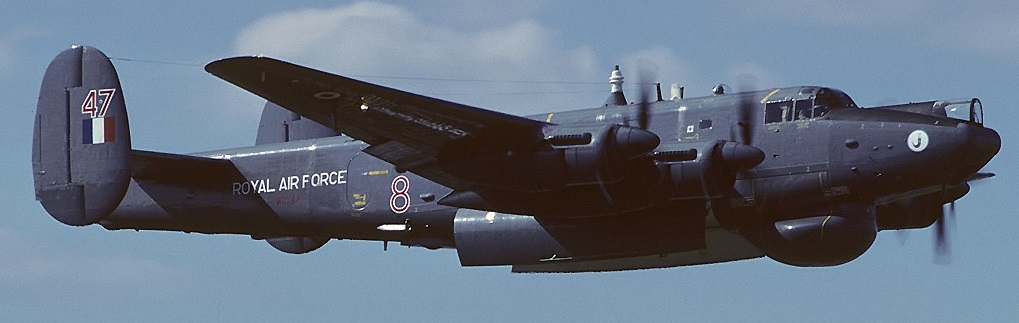

Avro Shackleton

There were other effects of the unusual configuration. The radars on the Sentry and Hawkeye could be mostly air-cooled, but Nimrod's nose and tail radomes couldn't, and a special system was installed which dumped the heat into the fuel. The major drawback to this system was that it didn't work when the fuel tanks were less than half full. All of these problems meant that the in-service target of 1982 was handily missed, and by 1986, the cost had escalated from the £200-300 million originally estimated to around £1 billion. At this point, the government finally pulled the plug, and decided to buy the Boeing E-3 Sentry instead. These finally began to enter service in 1991, replacing the Avro Shackletons the British had introduced 20 years earlier as a stopgap until Nimrod arrived.5

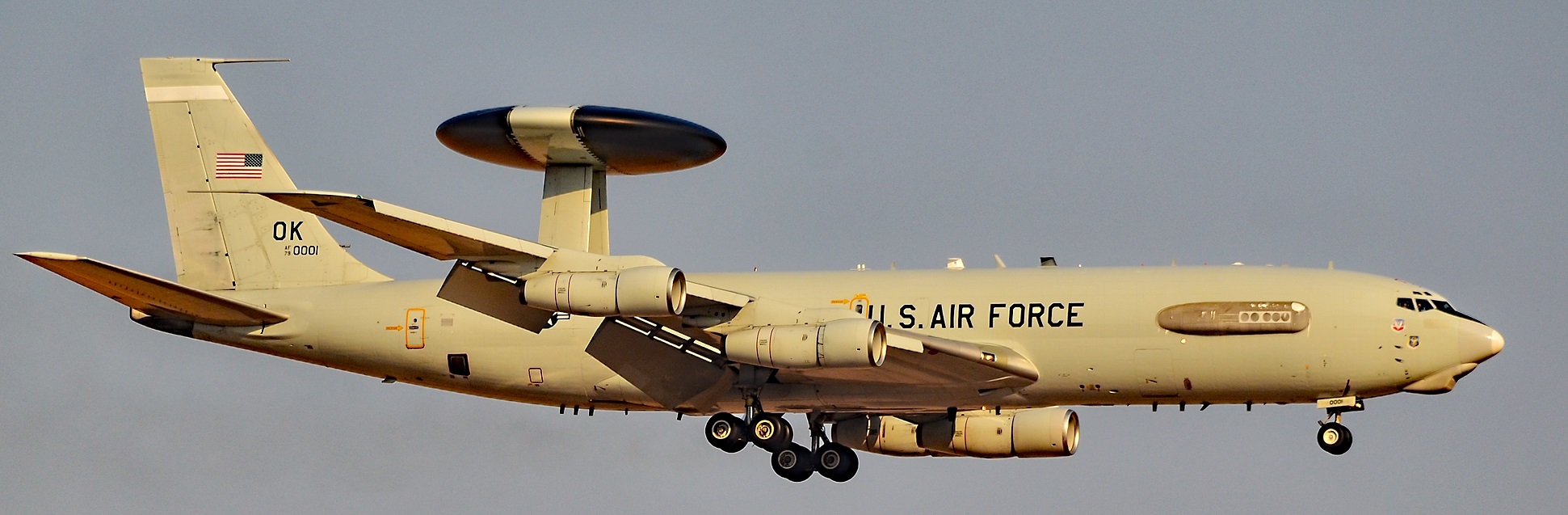

Boeing E-3 Sentry

But the Nimrod story wasn't over. In the early 90s, the RAF began to examine options for a replacement for the MR2 in the maritime patrol role. Lockheed offered an upgraded version of the P-3 Orion used by the US Navy, and Dassault offered its Atlantique, while BAE chose to offer a Nimrod modernization over a variant of the Airbus A310 airliner. The Atlantique was soon eliminated due to the RAF's unwillingness to consider a twin-engine MPA,6 and the Nimrod soon emerged as the winner of the competition. When asked about the structural problems inherent in trying to make a 30-year-old airframe last another 25 years, BAE claimed that the risk to the program of retained airframe items was "low," and that the Nimrod was "probably the best-understood airframe in the RAF inventory." These were claims which would come back to haunt them.

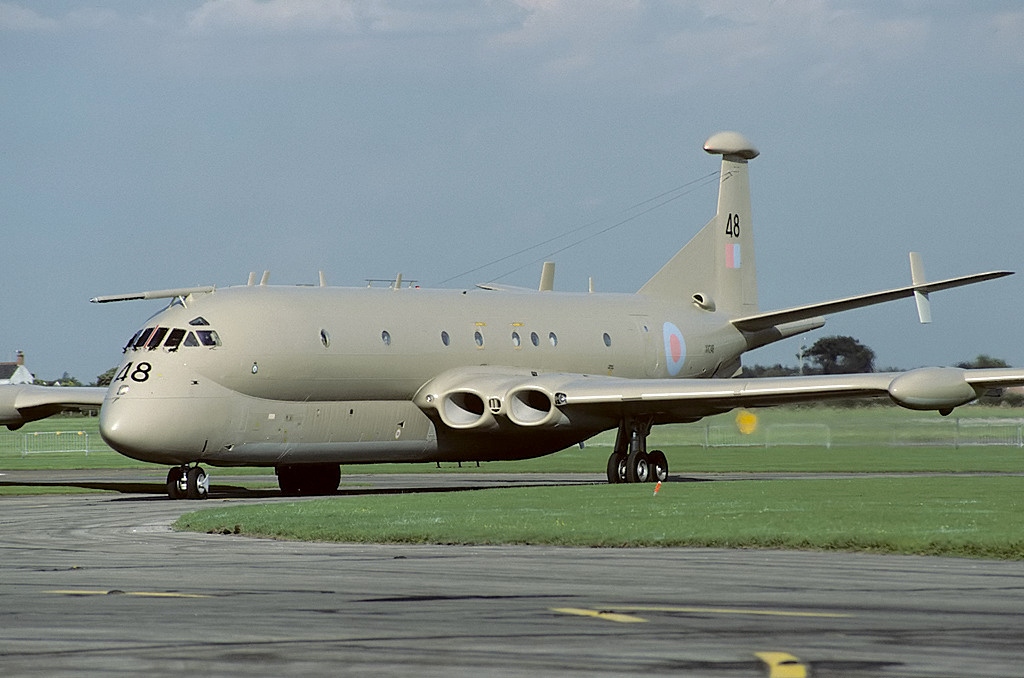

Nimrod MR2

In 1996, a contract was issued for the new aircraft, designated Nimrod MRA4. 21 aircraft were to be produced at a cost of £2.8 billion, and they would be essentially new airplanes, with only the fuselage structure being retained. The antique Spey engines would be replaced with modern BR700s. These engines were significantly larger, and required much more air, forcing BAE to design a new, larger wing.7 The combined effect of these two changes was to double the Nimrod's range and improve performance. Inside, the flight deck was replaced with one derived from the A340 airliner, and the mission systems were to be all-new.

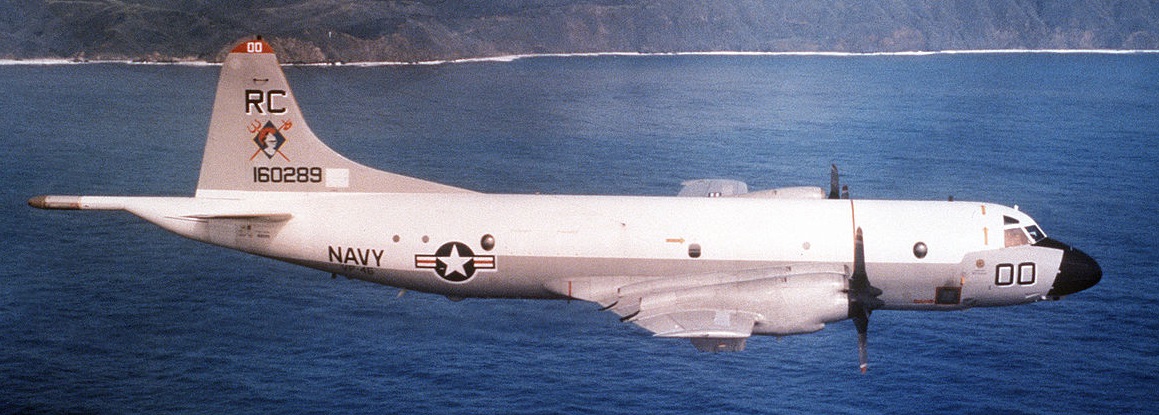

P-3 Orion

A fuselage was sent to be reverse-engineered for the design of the new wing, and BAE designed and built it, then pulled in another aircraft to make the modification. And discovered that the wing didn't fit. Apparently, the problem dated back to the initial construction of the aircraft. When positioning the frames, Hawker Siddeley had not done what all sensible manufacturers did, and measured from a common baseline. Instead, they had positioned each frame with a tolerance relative to the previous one, which meant that the position of the wings varied by as much as a foot across the fleet. Worse, the aircraft they had designed the wings for was one of the most extreme in wing position, so the new wings didn't fit most of the other aircraft.8 This forced a redesign of the wings, further delaying the program.

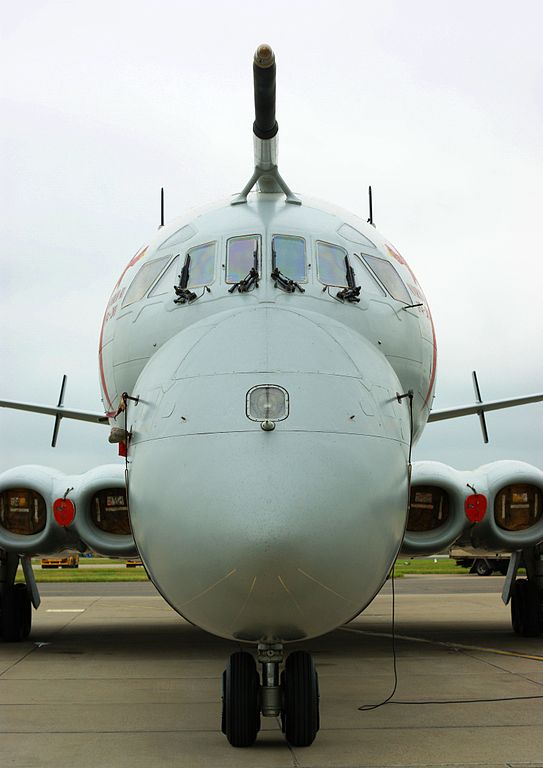

Nimrod R1

This started the MRA4 on its own spiral of delays and cost overruns. The original contract had the first aircraft entering service in 2003, but by 2002, this had slipped six years, and the number of aircraft to be procured was cut from 21 to 18. From this point on, there was a steady drumbeat of cutbacks. In 2004, another two aircraft were deleted, followed by four more two years later. In 2008, the number was down to nine, and when the first aircraft was delivered the next year, there was more bad news. Budget cuts meant the new Nimrod would not be operational until 2012, nearly a decade after it was supposed to enter service.

Nimrod MRA4

The end came with the 2010 Strategic Defence and Security Review, which announced that the MRA4 program was to be shut down immediately, and the existing airframes scrapped. This was immediately controversial, as £4 billion had been spent, and the aircraft was apparently on the verge of entering service. Many charged that the MoD had wasted an immense amount of money and left the UK without a maritime patrol capability for no reason. Others claimed that the aircraft was still far from being truly operational, as BAE had yet to solve numerous design flaws, including landing gear that didn't work, leaking fuel pipes, and overheating engines. To fix these would have taken another £1 billion, and required several more years. I strongly suspect that the latter is much closer to the truth.

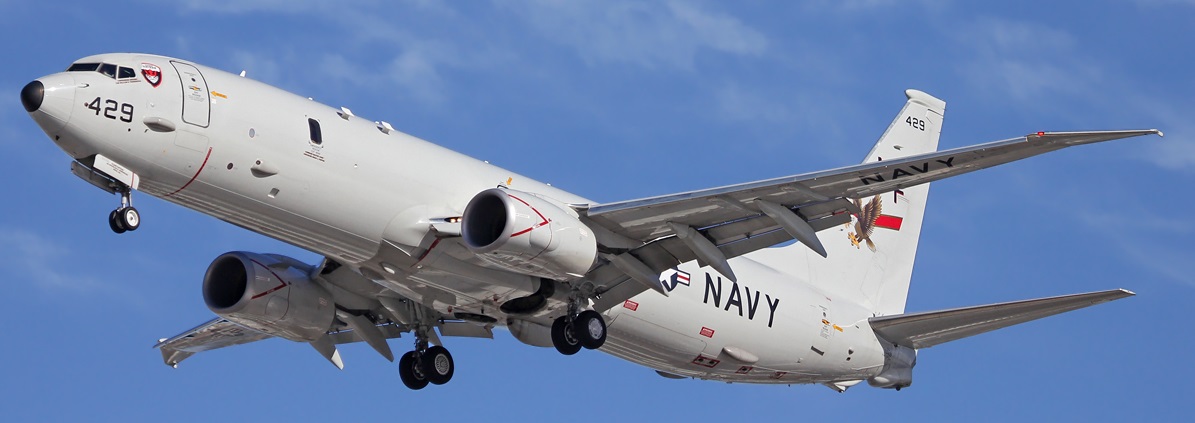

Boeing P-8 Poseidon

Five years after the demise of the Nimrod, the British decided to reenter the MPA game, buying P-8 Poseidons from Boeing. The P-8 is also a modified airliner, a variant of the Boeing 737 best known for carrying everyone everywhere, but Boeing is much better at building airplanes than Hawker Siddeley, and the airframes are all-new.9 There is an interesting symmetry to the situation, however. Boeing was a partner on the MRA4, working on the mission systems, which appear to have been the only part of the airplane to work well, and this work was fed into the P-8.

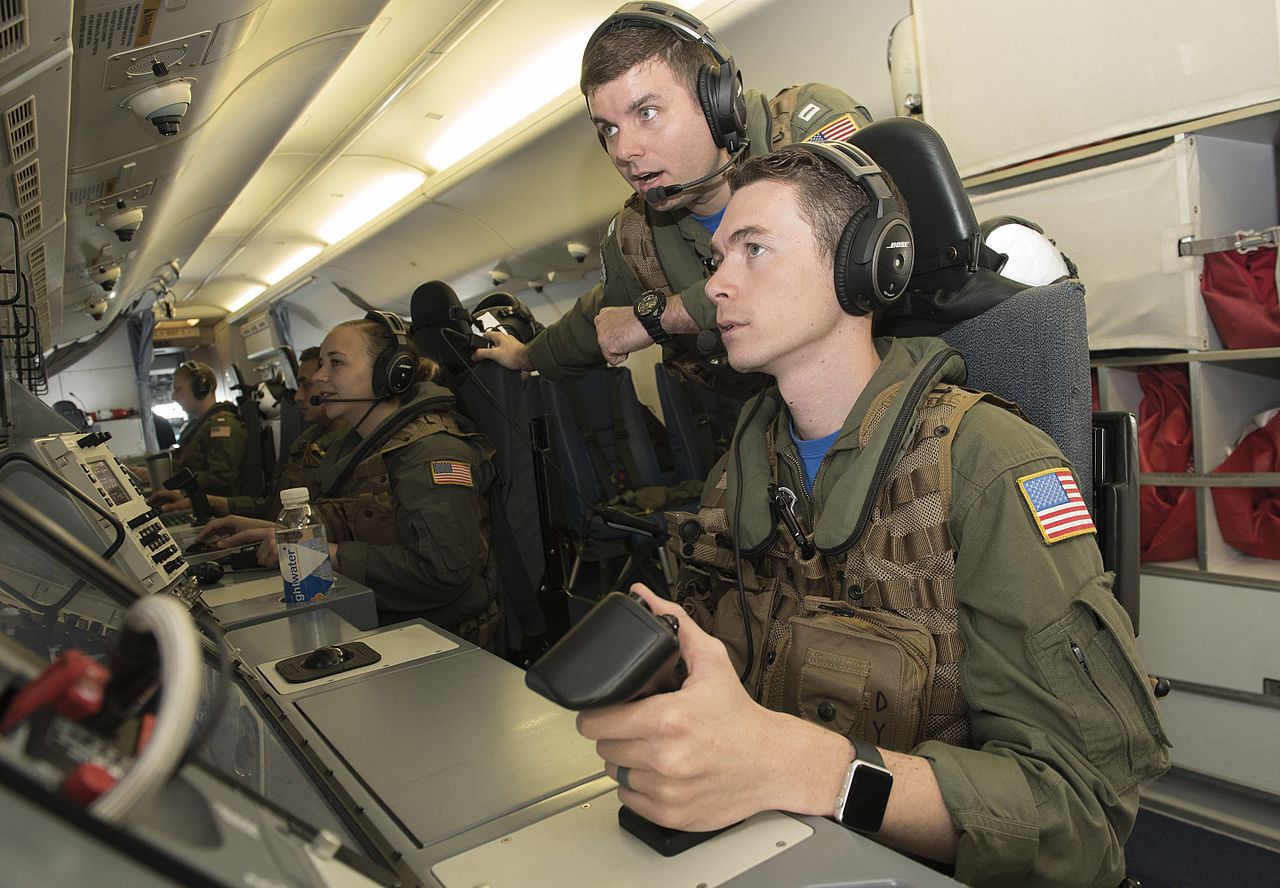

The interior of the P-8

Besides a good laugh, the Nimrod story provides us with valuable lessons. In both cases, BAE was able to sell the Nimrod through a mixture of political maneuvering and promising things they couldn't deliver. This is hardly unique to Britain, and many of the same problems are visible in the JSF program. In that case, the US has proven willing to keep spending money, and appears to have spent enough to get a pretty good airplane out the other side.10 Allowing political requirements to drive defense decisions rarely ends well, although the outcome is usually not as stark as it was on the AEW3 and MRA4 programs.

1 "Nimrod" is a reference to a biblical "mighty hunter" from Genesis 10. In this case, the American slang meaning of the term (which comes from the sarcastic use of the name for Elmer Fudd) is appropriate, too.

2 It's commonly believed that the specification for the competition the Nimrod won was written around the Breguet Atlantique. Politics probably dictated the selection of a domestic aircraft.

3 This is commonly ascribed to the fact that the designers didn't know that sharp corners on the windows would concentrate stress and lead to early fatigue. The problem with this rather simple explanation is that the Comet was far from the first pressurized airliner. That honor goes to the Boeing 307 Stratoliner, which entered service in 1940, 12 years before the Comet, and never suffered anything like the Comet breakups. There were several other pressurized airliners which preceded the Comet, most notably the DC-6, some of which are still flying in Alaska today, and which never suffered similar problems. In fact, the problem was poor detail design on De Havilland's part, which was fairly typical of the company. Also, the problems of sharp corners leading to crack growth were known before the Comet was designed, and had been publicly dramatized by the severe cracking suffered by some freighters in WWII.

4 Airborne warning and control system. Essentially a plane packed with radar, which can see much further than it can sitting on the ground, and a crew to manage an aerial battle.

5 It probably bears pointing out that the Shackleton was descended from the famous Avro Lancaster bomber of WWII, and was using a radar that had been developed during WWII. The Sentries themselves have recently been ordered replaced by a new aircraft based on the popular Boeing 737.

6 This was another bad decision in a story full of them. Modern jet engines are reliable enough that mission capability is slightly enhanced by having only two engines. Multiple engine failures are overwhelmingly caused by common factors, and four engines are no more use than two if you run out of fuel or fly through a cloud of volcanic ash. On the other hand, single-engine failures, which cause an abort but don't generally endanger the plane, are twice as common on four-engine aircraft, actually reducing reliability.

7 This was another case where the Nimrod/Comet design came back to bite them. Most airliners carry their engines on pylons, which makes changing engines relatively easy, but the Nimrod has its buried in the wing root.

8 Unlike the rest of this post, I don't have formal sourcing for this. The information comes from friends in the UK aerospace industry. Apparently, there was a section in the original plans marked "add 18" and cut to fit" to deal with this problem.

9 I've occasionally suggested in jest that the MoD is going to ask Boeing to fit the P-8 systems to old 737-400s, the predecessor aircraft to the 737-800 that the P-8 is based on. Fortunately, this is no longer a threat, as Poseidon MRA1 became operational with the RAF in April 2020. Interestingly, two of the five new 737 AWACS planes procured for the UK were former commercial aircraft rather than new-builds.

10 This may not have been possible on the Nimrod, due to the airframe issues. The B-52, an aircraft of an age comparable to the Nimrod, is currently scheduled to get a series of upgrades that together rival the MRA4 program in scope. Unlike the Nimrod, the B-52 has a long record of successful upgrades, and there's no reason to believe these programs will have more trouble than usual for defense procurement. Some of this is because the B-52 upgrades are incremental and decoupled, and some is because Boeing knew what it was doing when it built them in the first place.
