Mine Warfare Part 2

While the first naval mines were contact mines and they are still the dominant type numerically, the main focus of mine warfare in recent decades has moved to influence mines, which are set off by means other than physical contact with a ship’s hull. Influence mines are traditionally laid on the bottom, although they can be moored if the water is too deep for bottom mines to be effective.

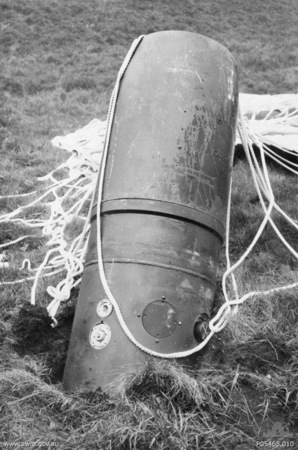

A German air-dropped magnetic mine

The first influence mine was a magnetic mine developed by the British and used in July of 1918. Magnetic mines, as the name implies, detect changes in magnetic fields caused by ships passing nearby. Early magnetic mines used a simple magnetized needle switch which would detect the vertical component of a ship's magnetic field. This could be defeated by magnetizing the ship in the opposite direction, a procedure known as deperming. This was developed by the British to counter German magnetic mines during WWII, which were mostly laid by aircraft in British waters. These magnetic mines were also easy to sweep with a magnetic signature generator towed behind the sweeper. However, the sweeper had to either be degaussed or have an inherently low magnetic signature (which usually meant a wood hull). Some aircraft were also fitted with magnetic coils and used to sweep for magnetic mines.

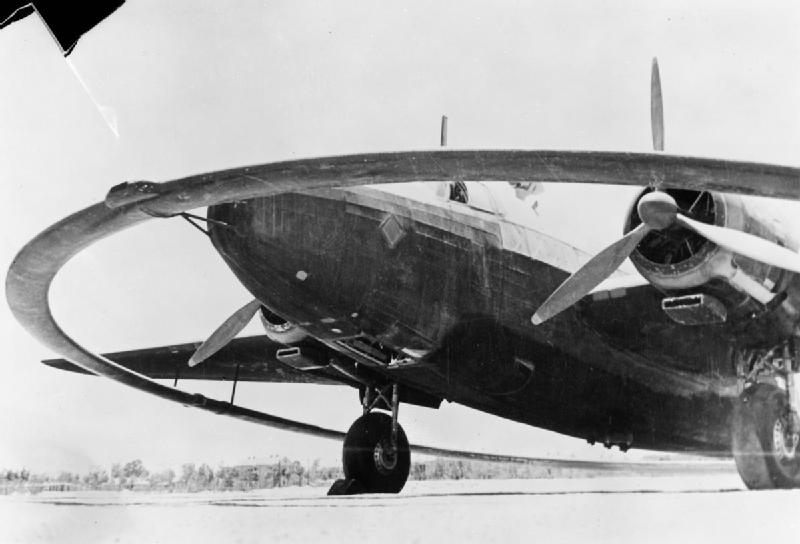

Vickers Wellington modified to sweep for magnetic mines

Later WWII magnetic mines used induction coils. These would detect the horizontal effects of the ship, which in turn meant that the original deperming was no longer effective, although a version that cancelled the ship's permanent magnetic field remained in use. The other major advantage of using the horizontal component is that induction coils pick up the rate of change, allowing the mine to be fired when the magnetic field starts to drop, which usually means that the mine is somewhere near the screws instead of near the bow of the target ship, greatly increasing damage. To counter this, some ships were fitted with deguassing coils, which compensated for the effects induced by the presence of the ships on the Earth's magnetic field, which the mines could also sense. Today, mines use sensitive magnetometers, which have rendered deguassing ineffective, and made sweeping much harder. The net result is a significantly more dangerous mine, although deperming continues to reduce the risk from less sophisticated weapons.

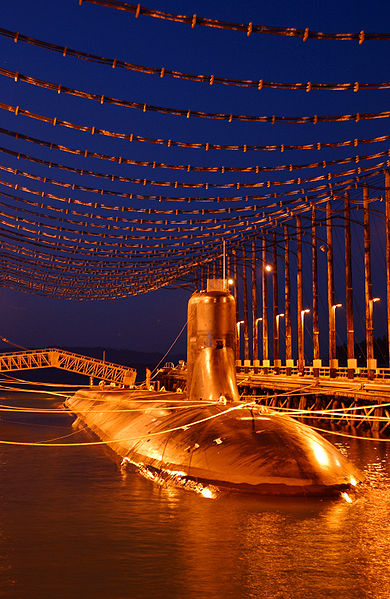

USS Jimmy Carter being depermed

The Germans introduced a second type of influence fuze: the acoustic fuze, which (obviously) detects sound. Through the 1970s, acoustic mines were simply fired when the sounds around them got loud enough (although there was some protection against noises like explosions that could be heard from far away). This made sweeping relatively easy, as the sweeper just had to quietly tow a loud noise generator.

As technology advanced, it became possible to look at factors other than raw volume, and mines began to be developed that are targeted at specific types of ships. For instance, some Soviet/Russian mines are fuzed to only go off if they hear an LM-2500 gas turbine, the standard unit used on US surface warships. This is a serious challenge for sweeping, requiring both knowledge of what was being listened for and the ability to duplicate it. As a result, sweeping had to be abandoned as a practical method for dealing with these mines.

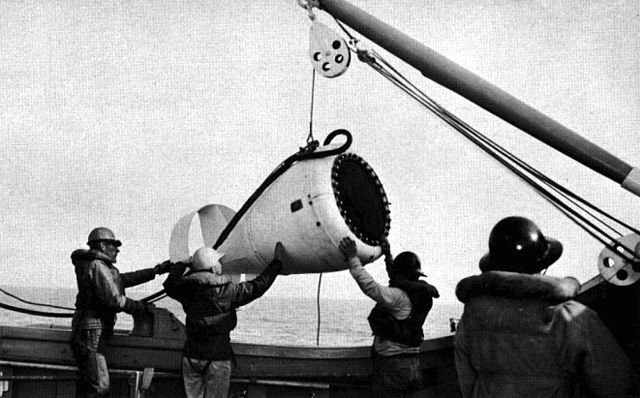

Acoustic minesweeping device

The last major type of influence mine is the pressure mine, first deployed in WWII. This is a fuze that operates by detecting the pressure drop caused by a ship passing overhead. Not only does it have to be a bottom mine, but it also has to be laid in a specific depth range. Too shallow, and it can be set off by wave action; too deep, and it can’t detect ships. However, if it is properly laid in this depth range, there is effectively no way to sweep it. Because the mine is tuned to only detect the type of pressure waves produced by ships, the best way found to sweep fields of pressure mines is to use ‘mine bumpers’: sacrificial ships packed with buoyancy material, and a crew either sitting on mattresses or operating the vessel by remote control. Needless to say, this is not a popular way to clear a minefield.

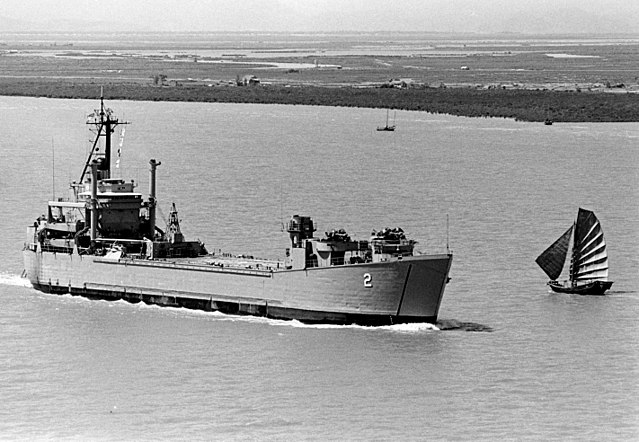

USS Washtenaw County being used as a mine bumper in Haiphong Harbor, 1973

The most advanced mines incorporate fuzes that use multiple elements, the most common being magnetic-acoustic mines. One problem acoustic mines have is that they require significant power for their detection sensors, which means that they have a limited lifespan. To solve this, a very rudimentary magnetic fuze is used to trigger the acoustic fuze. This requires very little power while on standby, and does not need fine discrimination, as the acoustic component takes care of that. Sweeping these mines requires producing the right combination of signatures in the right order.

There are even more problems with sweeping for modern influence mines. Many mines incorporate clocks that hold them inactive for some time after they are laid, so sweeping last night might not mean there are no active mines this morning. And you have to sweep multiple times, as many mines incorporate counters. Instead of going off on the first signature they detect, they can be set to ignore up to a certain number before going off, traditionally 15. This makes sweeping incredibly time-consuming, as a given area must be swept 16 times, even neglecting the effect of timers.

So if modern influence mines are effectively unsweepable, how do we counter them? The answer is minehunting. Instead of blindly dragging devices through an area suspected of being mined, special sonars are used to detect individual mines, which are then inspected and destroyed either by divers or remotely operated vehicles (ROVs).1 Minehunting ROVs are a major area of research, with new models rapidly appearing. This is making the task of the minehunter easier, although it is still specialized and difficult work. Advances in unmanned and autonomous vehicles mean that most minehunting systems are no longer tied to specific ships, but can be deployed by any vessel with space for a few trailers and the equipment to launch and recover the ROVs. As a result, the specialized minehunter is dying off, replaced by multi-mission vessels like the American Littoral Combat Ship.

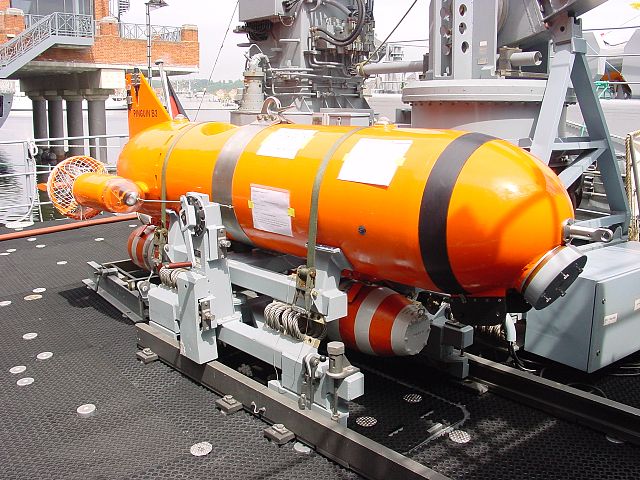

Minehunting ROV

There are also a couple of specialized types of mines that deserve discussion. One is the rising mine. This is a mine that is anchored in deep water and has a much better sensor system than is typical for stationary influence mines. When it detects a target, it releases ballast and begins to rise towards the target, steering itself into a hit. The Soviets even introduced some rocket-propelled rising mines, which are particularly dangerous because they can be laid much deeper than normal influence mines without using mooring chains and they threaten a much larger area than a traditional mine. A related type is the CAPTOR mine, short for encapsulated torpedo. This is essentially an anti-submarine torpedo that is programmed to listen for passing targets, usually submarines, and then fire its torpedo at them.

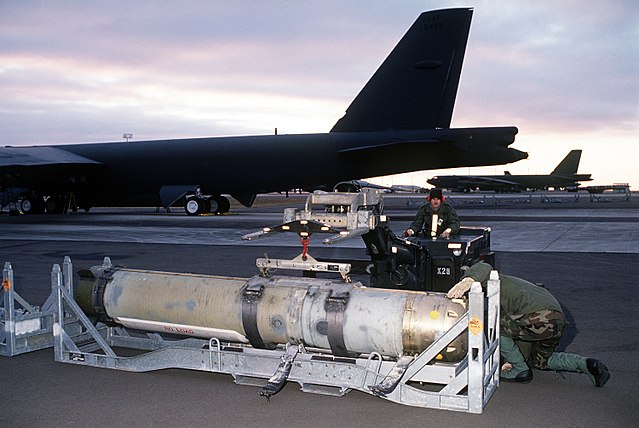

CAPTOR mine, being prepared for loading onto a B-52

Some mines are converted from other weapons. Many countries use ‘destructors’, aerial general-purpose bombs equipped with a mine fuzing package. These make it easy for any aircraft to lay mines, and the US has even looked at fitting some of its destructors with guidance packages. This would, if nothing else, make them easier to get rid of after the war because they could be precisely located. In fact, the US version, known as Quickstrike, can even be dropped on land and set to go off when it detects the magnetic or seismic signature of a passing vehicle. There are also submarine-launched mobile mines, old torpedoes converted to mines. Once they run out of fuel, they simply lay on the bottom and wait for ships to sail past.

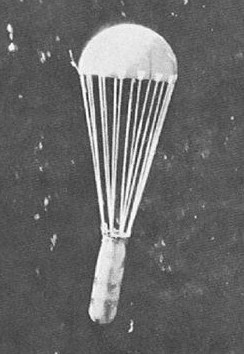

Aerial mine being laid by a B-29 off Japan

Mines have had a great influence in naval warfare. The Germans used an extensive aerial and submarine mining campaign against the British during WWII, which took great effort to counter. The British mining of the Danube was also a critical and often-overlooked effort. In the closing months of the Pacific war, mines laid by B-29s became the leading killer of Japanese shipping, bringing their economy to a standstill. It was called Operation Starvation, and if the war had continued, it would have done just that to the Japanese. The US used mines in 1972 to close Haiphong harbor, a critical element in bringing North Vietnam to the negotiating table. These were later swept using helicopters.2

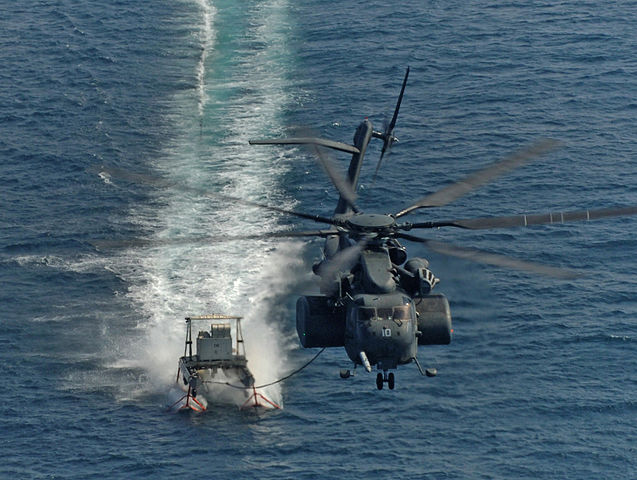

US Navy MH-53E Sea Dragon sweeping for mines

I’ve mentioned Wonsan and the use of mines in the Persian Gulf earlier as examples of the importance of mine warfare even today, but the actual use of mines isn’t even always necessary to make a minefield; in fact, all you need is a press release. Even that isn’t strictly necessary if you can make the opponent think there’s a minefield while publicly denying it, for instance by sending submarines with minelaying cradles to sea and bringing them back empty. Because of the difficulty of mine countermeasures, any suspected fields must be dealt with with extreme care. A competent mine warfare team will lay dozens of cheap dummy mines for every real mine, each of which must be dealt with, as must any random junk on the seafloor in the area. There are classified programs that attempt to discriminate between dummies (and old refrigerators) and real mines, but we don’t know how effective they are. Booby traps can be used to attack ROVs or clearance divers, and most nations do not have large stocks of either.

Though unglamorous and unloved, mines are undeniably effective weapons. They’ve exerted an influence on naval warfare out of all proportion to their cost since the dawn of the 20th century, and will continue to do so well into the future.


1 The US Navy has also trained dolphins and sea lions to locate mines which are then destroyed by other means. When I first wrote this post, it was announced as being phased out, although it now appears that this has been reversed and the program will continue.

2 The US Navy is pretty much unique in its use of helicopters for minesweeping. This is because its primary concern is minesweeping during amphibious operations, which requires the mine warfare force to be able to keep up with the amphibious force. Unfortunately, a requirement to make 20 kts would drive up the size and cost of a minesweeper far too much. Other NATO navies were much more concerned about minesweeping near their coasts, and prefer ships instead.
