Survivability - Mission Kills

As important as keeping the ship afloat is, the purpose of a warship is not to float. It is intended to fight, and there are many ways a ship could be knocked out of a fight without succumbing to flooding or fire. Even though the crew would vastly prefer a mission kill over an actual kill, it's nearly as good from the enemy's perspective. In addition to their attention to the aforementioned threats, designers and operators thus have to figure out how to keep fighting despite damage.

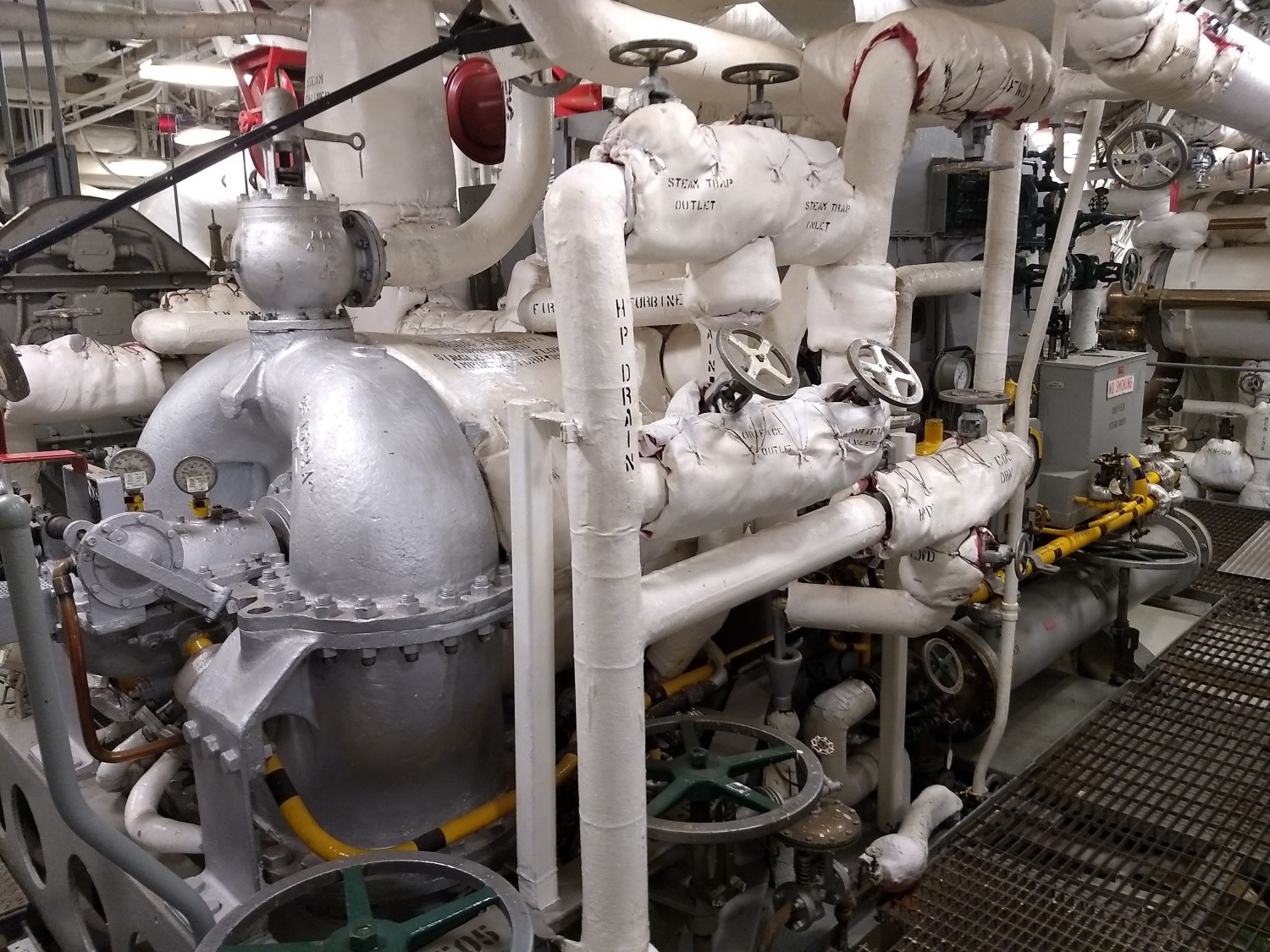

A turbogenerator in engine room 2 of Iowa1

The most likely source of a mission kill is loss of power. If the steam stops, the ship is a sitting duck,2 while loss of electrical power renders the ship unable to fight effectively. The main defense is redundancy. The boilers, which provide steam to both the engines and the generators, were usually split into two or more separate systems in separate spaces. This required careful design, and some early systems were reportedly compromised by common lubrication oil lines. Cross-connections allowed the crew to route around damage, so that a ship which lost, say, boiler 3 and engine 2 could use boiler 2 to power engine 3. Primary electrical power was from steam-driven turbogenerators, and these were dispersed throughout the engineering spaces. Diesel generators were fitted to provide reduced power if steam was lost, and widely separated from the turbogenerators and each other.

One of Iowa's main electrical switchboards

But the real Achilles heel of electrical power was distribution. In a number of cases, ships with operational generators were disabled due to problems with the electrical system. The most prominent example was the USS South Dakota at the Naval Battle of Guadalcanal. When she first opened fire, the shock caused a circuit breaker to close, connecting two different power phases and knocking out power throughout much of the ship for about a minute. The crew soon fixed the problem, except for two of the 5" mounts, which remained offline.

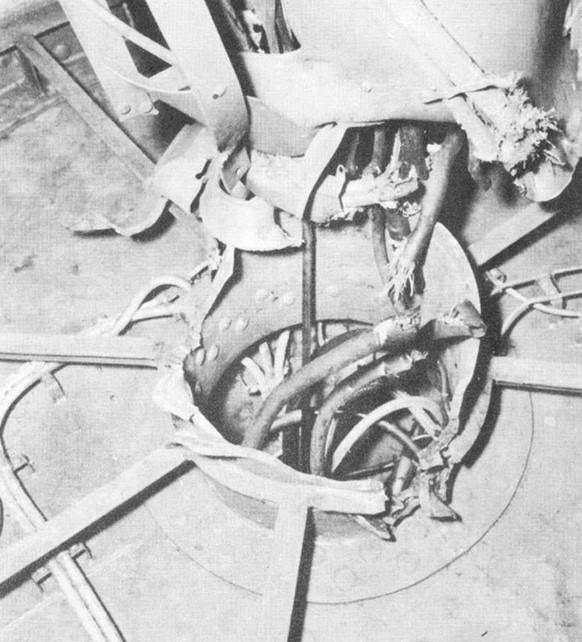

The wires of South Dakota's forward secondary director

Most critically, however, the loss of power took down the radars, giving all hands "a feeling of being blindfolded". The loss of situational awareness caused South Dakota to silhouette herself against a burning destroyer, and the Japanese quickly trained their searchlights on her. Over the next 15 minutes, she took a total of 26 hits from shells ranging from 5" up to 14". Most of these hit the superstructure and passed right through without bursting,3 but the fragments created on impact wreaked havoc with the superstructure wiring. Short circuits in the power, fire-control, and internal communications wiring resulted in main power being lost for about three minutes. In theory, the local fuses should have blown, isolating those circuits, but the main circuit breakers opened first, and the shorted circuits had to be manually isolated.

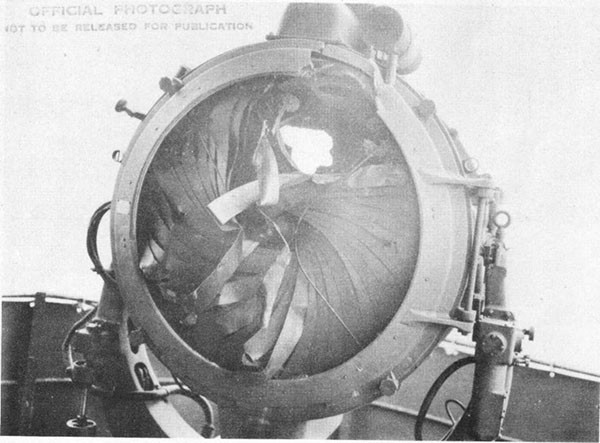

A destroyed searchlight aboard South Dakota

Even after power was restored, there was substantial damage remaining. All radio and radar equipment was inoperable, except for the radar on the aft main battery director. All cables to the forward secondary battery director were severed, as were other ducts, leads, and pipes. Minor fires were started, in some cases by the short circuits, and a total of 38 men were killed and 60 wounded.4

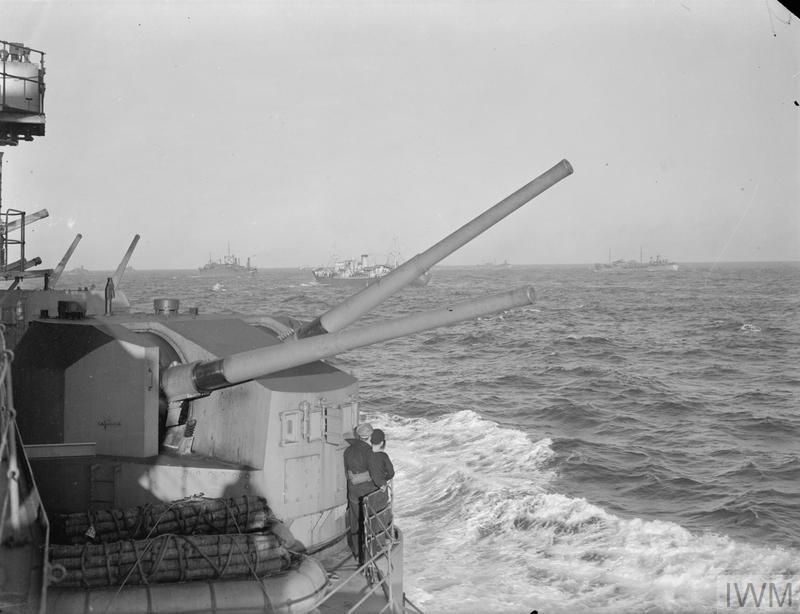

A 5.25" turret aboard Prince of Wales

Similar electrical problems occurred aboard HMS Prince of Wales during her last battle. The initial impact knocked out five of the eight generators, and cut power to the entire aft ring main, as well as six of the eight secondary turrets. The steering gear was also knocked offline, preventing the ship from dodging more torpedoes. The catastrophic effects of the loss of electrical power meant that HMS Vanguard, then under design, saw many auxiliaries, such as pumps and ventilation, changed from electrically-powered to steam-driven. More diesel generators were fitted and scattered throughout the ship, as both of PoW's were lost to the first torpedo hit.

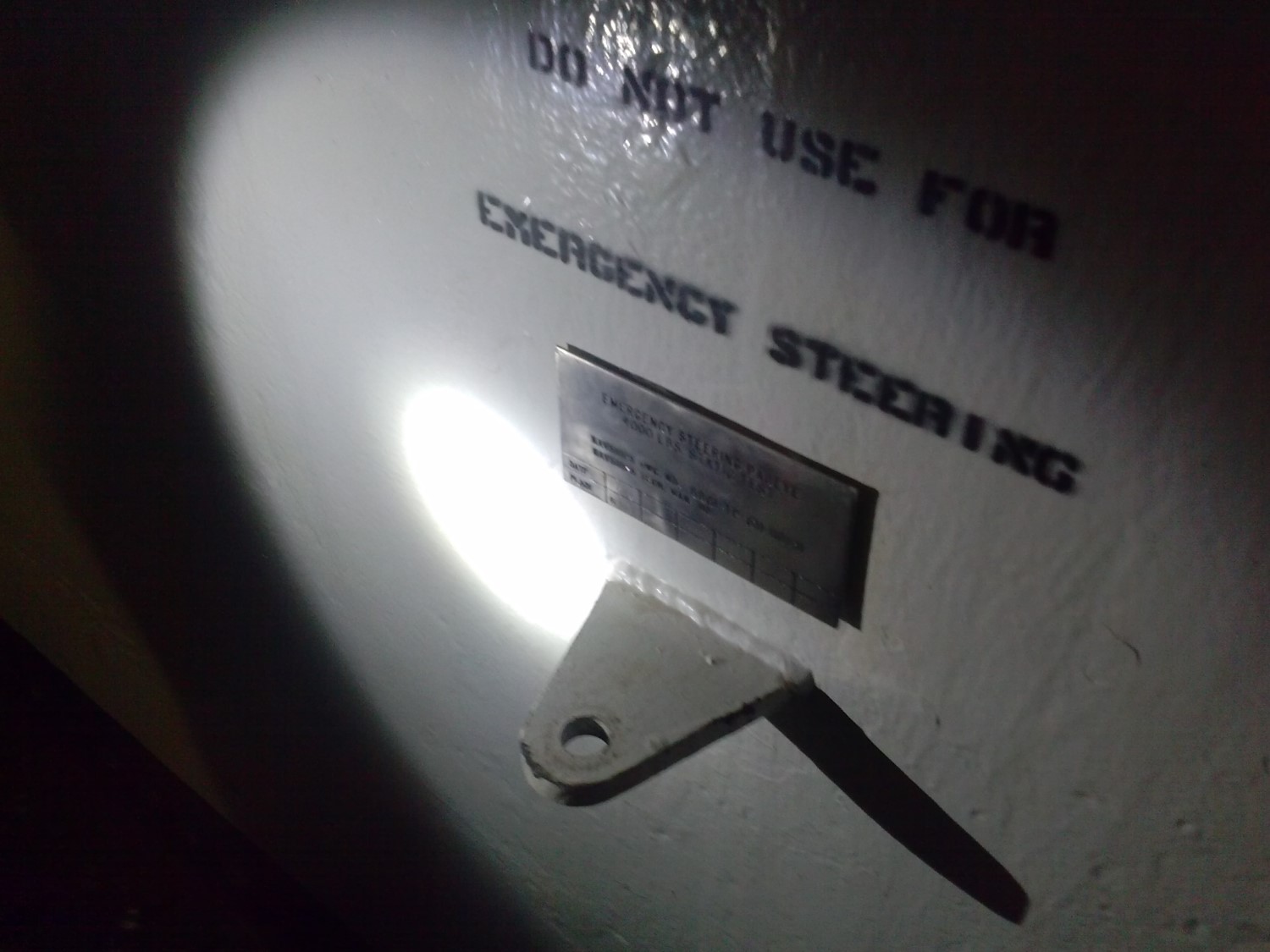

An emergency steering eye on Iowa. No, I don't have a good explanation for the warning above it.5

Of course, there are many ways to mission-kill a ship besides causing electrical problems, and several of these were demonstrated by Bismarck during her cruise. The shell hit from Prince of Wales after Hood's destruction contaminated a significant amount of fuel,6 and a later torpedo hit on her rudder from a Fairey Swordfish doomed the German ship. When the British finally caught up with her, her armor held up very well, but her combat-effectiveness was quickly destroyed by hits on the lightly-armored portions of the ship. The forward director was taken out by an 8" cruiser shell about 15 minutes into the engagement, and the aft director followed half an hour later. British shellfire soon riddled the conning tower and put the turrets out of action, but she remained under power and afloat for another hour. Surprisingly, Bismarck managed to avoid taking any shaft hits, but the exposed nature of the last part of the propulsion system was a definite vulnerability, even ignoring the propensity of bent shafts to form flooding paths.

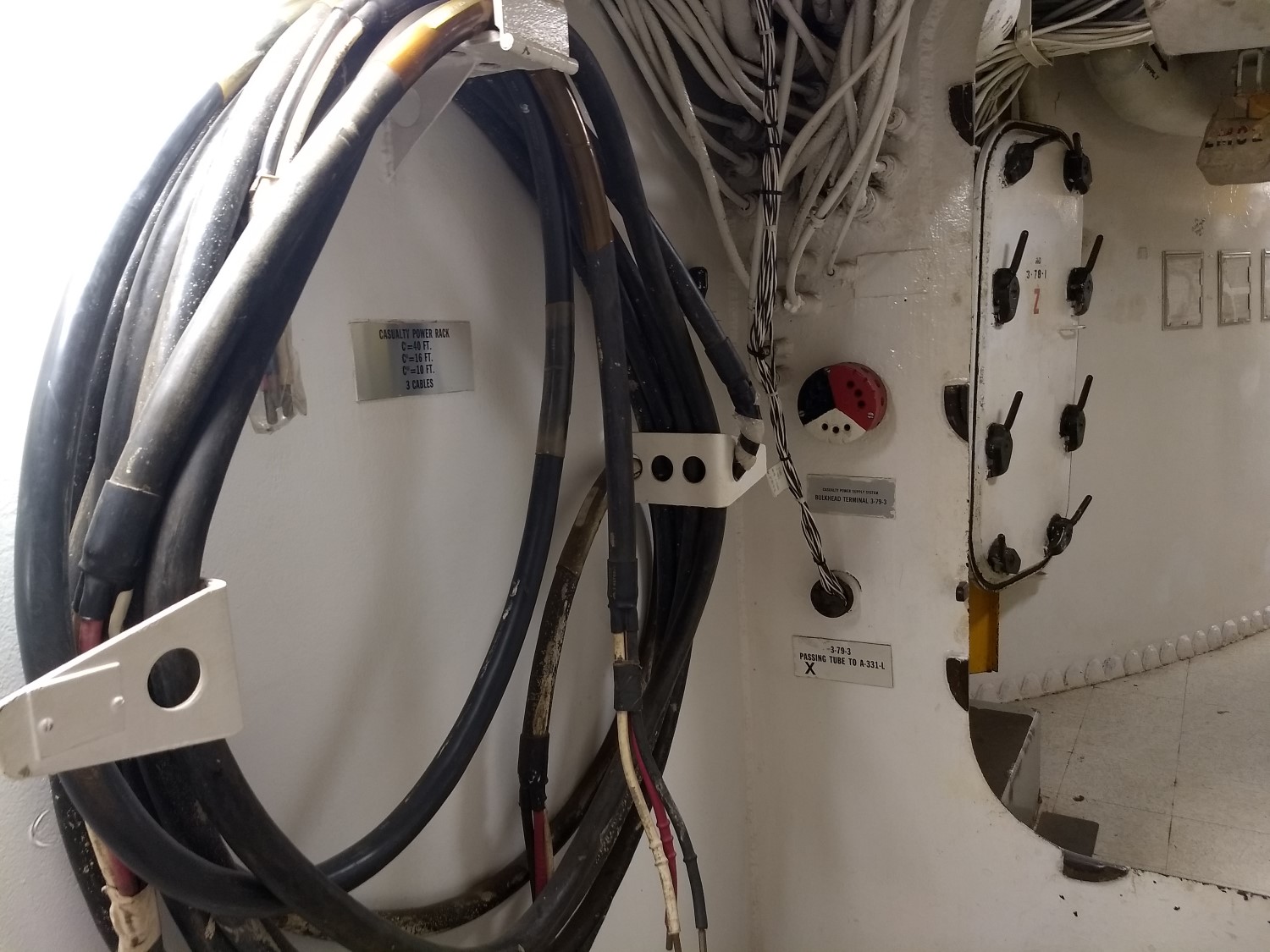

An emergency power cable aboard Iowa. The colored circle in the center is a connection for passing power through bulkheads.

Another major risk was shock damage, from underwater explosions or more rarely from the ship's own guns. Besides the electrical problems that South Dakota experienced, shock could easily break machinery foundations, unseat turrets, and injure crewmembers.

Mission kills are difficult to protect against because many of the components required to accomplish the mission must be exposed to do their work. The proliferation of electronics on modern warships has made the situation worse, as radar antennas must be large and mounted high in the ship, where topweight makes them impossible to protect. But redundancy and good design allows ships to keep moving and fighting despite damage.

1 All Iowa pictures are from my collection.

2 Not all warships use steam, but the principles are the same if the ship is diesel or gas turbine, and the extension to those forms of propulsion is obvious.

3 The Japanese had designed their AP shells with very long delays in hopes of getting hits below the waterline, so this happened during a number of battles.

4 The problems posed by damage to electrical leads have gotten worse since then. During the Falklands War, a British frigate was disabled by a single 30mm hit to the main data bus.

5 If it were to be used for emergency steering, a come-along would be stretched between it and an eye on the rudder post, and used to turn the rudder.

6 A related problem doomed the Panzerschiffe Graf Spee during the Battle of the River Plate. The British destroyed her fuel-processing equipment, which meant she could not use most of the intact fuel.
