Survivability - Flooding

When I discussed underwater protection, I focused only on the systems designed to keep water out of the ship. But naval architects had long been concerned about flooding, and included a second line of defense to deal with water that got inside the ship. This could be from a torpedo, a mine, a shell hit near the waterline, being rammed by another ship, or even running into rocks. In any case, the basic principles were the same, as were the problems they faced.

Patching a hole in a partially-flooded compartment

The first and most important line of defense was compartmentalization. Ships sink when the inside fills with water, and dividing the interior of the ship up into watertight compartments means that, in theory at least, the ship will only sink if enough of those compartments are damaged and opened to the sea. The downside to this arrangement is that watertight bulkheads get in the way of actually using the space. Machinery, for instance, requires large spaces below the waterline, and living spaces are more difficult to use if access routes have to go through a limited number of doors. The resulting inefficiencies drive up cost and ship size. As a result, standards have been developed specifying that all large ships, military and civilian, must be able to remain afloat and stable with a certain number of compartments flooded. The general measure of resistance to sinking is known as "reserve buoyancy", and is calculated as the volume of the hull between the waterline and the height at which water will begin to enter the ship if the ship sinks that far.1

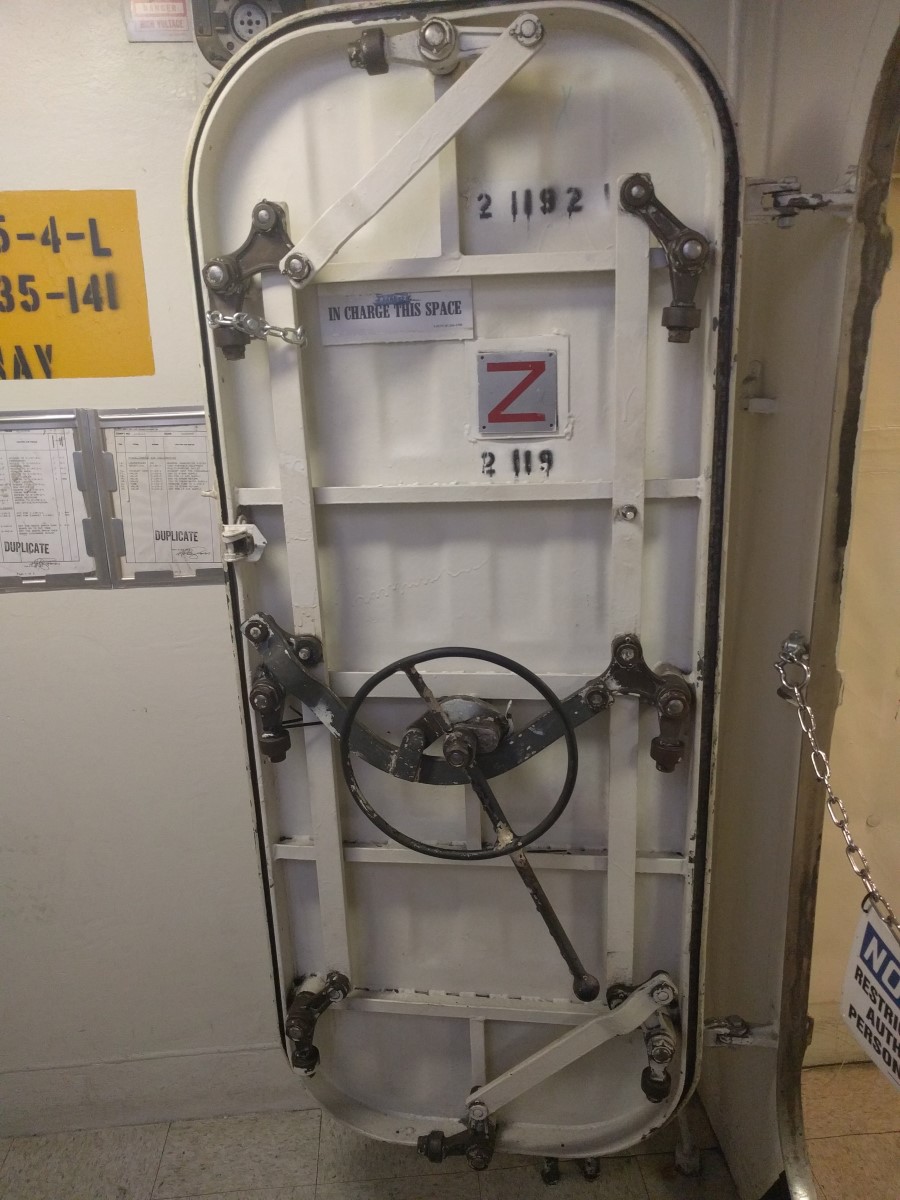

A typical watertight door aboard Iowa

Warships often supplement these with standards based on weapon damage. The USN, for instance, would estimate the effects of underwater damage based on the theory that a torpedo hit would damage a certain length of a ship's side. This "damage" would be placed at the point on the ship calculated to cause the most flooding, and the stability and buoyancy would be checked again. This standard resulted in a late revision to the design of the Iowas. The original plan had been to use unit machinery, where each of four rooms would contain two boilers and a turbine. However, this would have resulted in 64' machinery spaces, for a total flooded length of 128 ft. This was unacceptable, and the ships were redesigned with separate engine and boiler rooms, each 32' long. There was a slight increase in displacement, but it was acceptable since the treaties had been suspended at the start of the war.

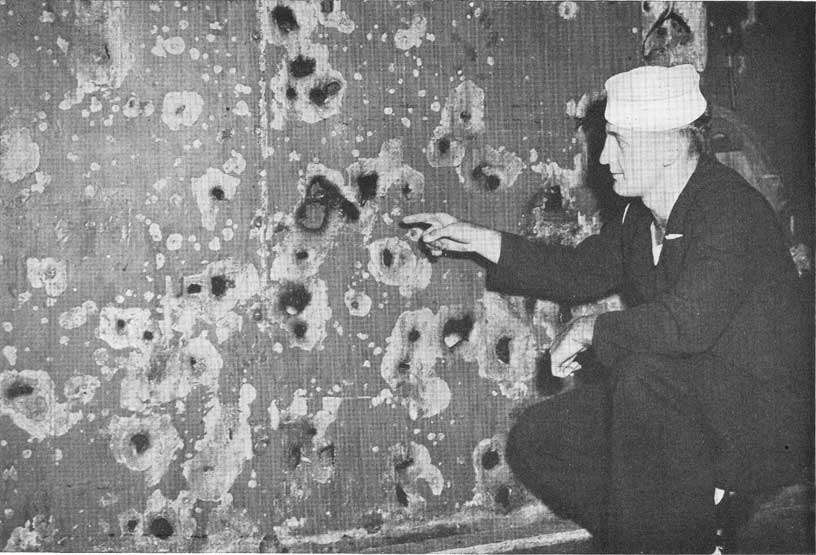

A riddled bulkhead, another possible route for progressive flooding

Unfortunately, keeping a ship afloat after damage is not just a matter of making sure that the designers provide enough compartments. A ship that is simply a collection of sealed compartments would be very difficult to sink, but also not very useful. Men, cables, pipes, and even voice tubes need to get in and out of compartments, and these all open up paths for water to penetrate undamaged bulkheads. The most obvious path is a watertight door that is left open due to the ship being unprepared or her crew not following proper procedure. But water is insidious, and unless care is taken, any penetration of a bulkhead will allow water through. Cable glands leak if not maintained, ventilation systems are natural flooding paths and the seals on watertight doors are easily damaged by careless sailors or compromised by dirt. The result is known as progressive flooding. Designers learned to mitigate this by designating a damage-control deck above the waterline, and limiting communication between compartments below it. For instance, there is no way to go from one of Iowa's engine room to another below Broadway, well above the normal waterline, and where possible cable and pipe penetrations are kept above this deck, too.

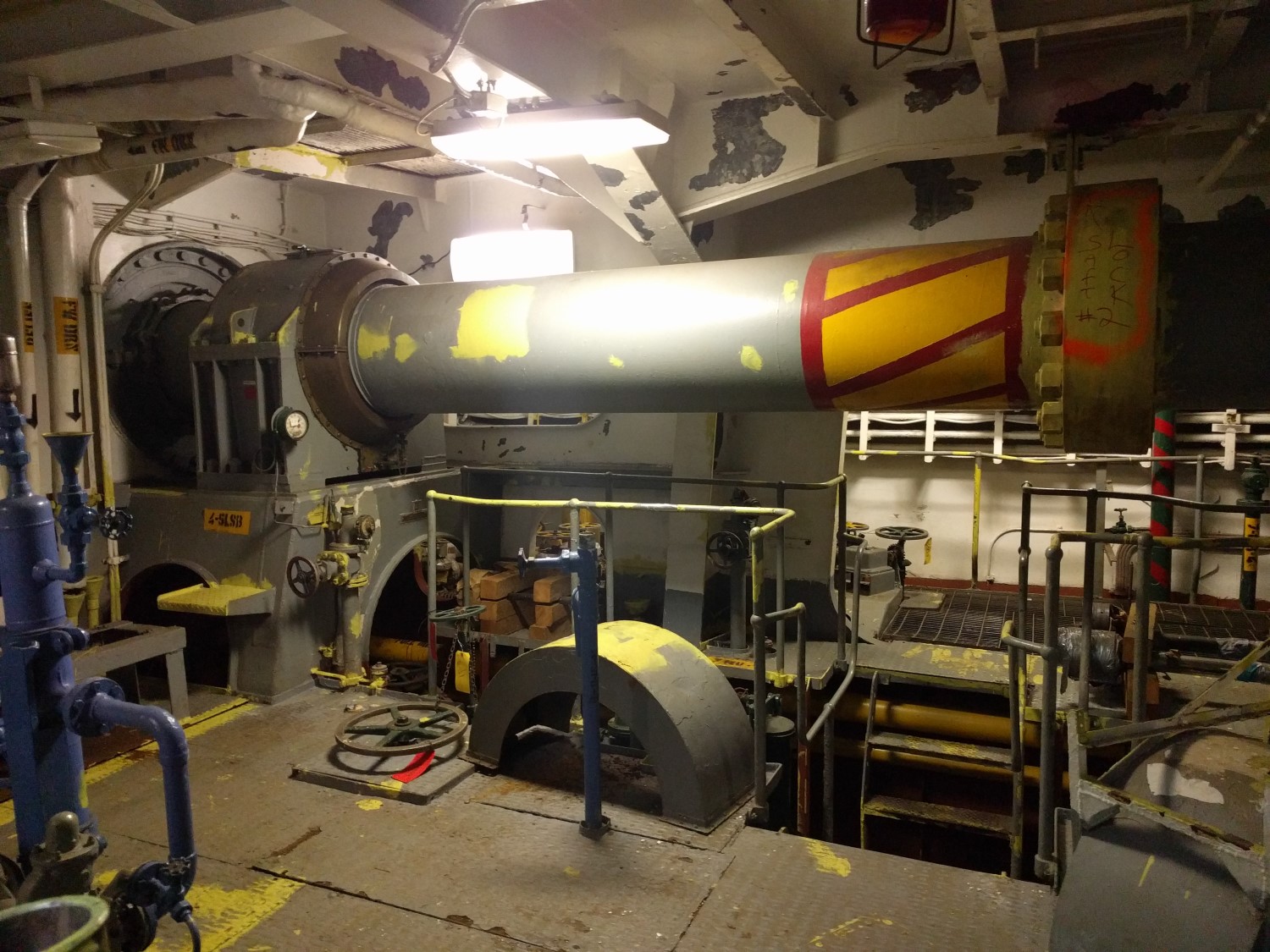

One of Iowa's shafts

Unfortunately, some penetrations couldn't be kept above this deck, most notably the propeller shafts. While the shafts themselves are not normally substantial leak paths,2 in the event of damage, things can go very bad very quickly. The most notable case of this was when Prince of Wales was torpedoed off Malaya. Her still-rotating port outboard shaft bent under the force of the explosion, ripping open the glands and causing extensive flooding. The damage was so bad that a diver on a recent survey was able to travel the entire length of the shaft from outside the hull to the engine room where it terminated. Unfortunately, damage like this is essentially impossible to prevent, although good detail design of the shaft components can mitigate it some.

HMS Britannia, shortly before she capsized

But the picture was even more complicated than that. Besides simply flooding and sinking lower in the water, ships also capsized. This was often due to the designers installing longitudinal bulkheads in the machinery spaces, which divided the relevant space into port and starboard sections. Any damage resulted in off-center flooding, and a badly-listing ship, made worse by the free-surface effect. All six British pre-dreadnoughts that were sunk by torpedo attack during WWI capsized,3 thanks in part to another design problem. As the ship listed, the water reached the casemates and began to flood into the ship. This in turn made the list worse, and the ship quickly capsized.

Musashi down by the bow, shortly before she sank

After the war, some navies, most notably the USN, avoided longitudinal bulkheads entirely. This meant that the ship was not as compartmentalized as possible,4 but was also quite resistant to capsize. It didn't mean that the ship couldn't capsize, but most American ships capsized after flooding had destroyed their stability. This was in contrast to the Japanese, who used longitudinal bulkheads on most of their ships, and sometimes paid the price for it. An excellent illustration is the fates of the two Yamato class battleships. Musashi was attacked on both sides and took 19 torpedoes and 7 bombs before sinking. The USN, who had a reasonable idea of Japanese design standards, ordered the pilots going after Yamato six months later to attack only on the port side. Most of them did so, and it took only 11 torpedoes and 6 bombs to sink her.5

A sailor checks shoring during a damage control exercise

A competent crew could significantly increase survivability against flooding. Besides maintaining watertight integrity through regular maintenance,6 they were able to fight back after damage. Standard damage control procedure was to establish the flooding boundaries, where the crew would make their stand to contain the water pouring in. This selection involved evaluation of the damage and leakage rates in the bulkheads, and the availability of pumps to remove water that made it through. Damaged bulkheads would be supported by shoring, the creation of temporary wooden supports to take the strain off of the bulkhead, and leaks would be gradually found and stopped. If there was a serious list, for instance due to flooding in the TDS, undamaged spaces on the other side of the ship could be counterflooded to restore an even keel.

Dewatering a compartment. Note the strainer employed to protect the pump from debris.

After the flooding boundary was established, the crew would attempt to dewater the flooded spaces. In many cases, the leakage rate would be low enough that pumps could get most of the water out of a space, allowing the crew to go in and patch leaks, close watertight doors that were left open, and eventually dry the compartment out completely. Divers might be sent in if the pumps were insufficient, to clear blocked drains, close doors, and patch any large leaks that prevented normal dewatering.

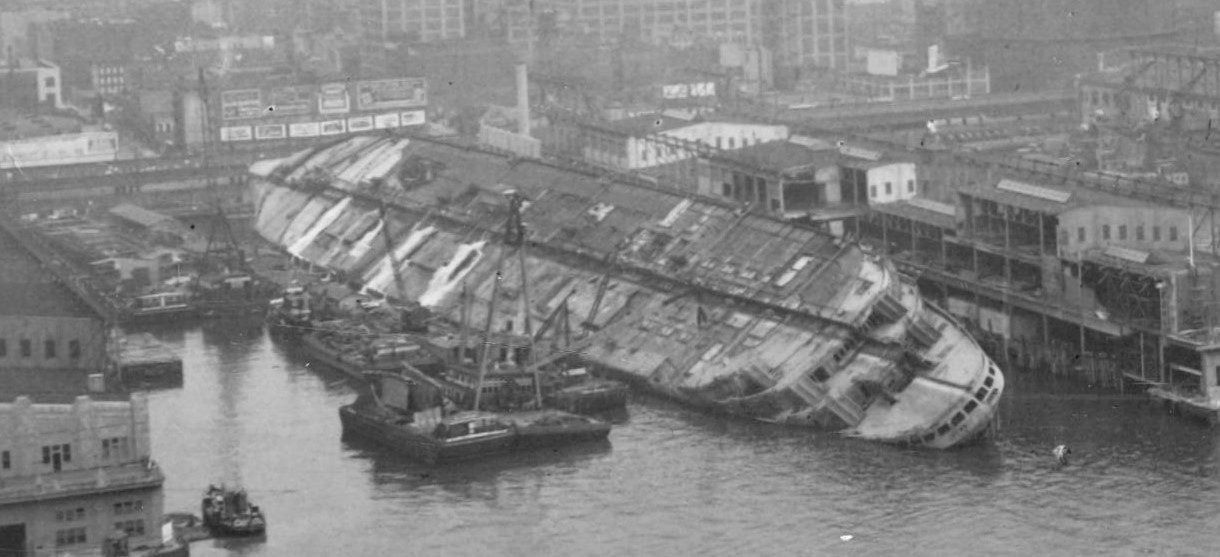

Normandie capsized in New York Harbor

Weirdly, underwater damage was not the only possible cause of flooding. Firefighting involved spraying lots of water around, and it could build up and eventually cause stability problems. The most notable case is the French liner Normandie,7 which caught fire pierside and eventually capsized due to free surface from the firefighting water.

Ultimately, flooding was probably the greatest danger to battleships in action, but far from the only one. Fire, structural failure, and magazine explosions were also major threats, and the prospect of a mission kill from above-water damage was never far from the minds of the designers, either.

For more information on the mechanics of flooding and how it was fought, see the 1945 USN Damage Control Handbook. Here is a good video from Tom Scott of the RN's flooding control trainer, focusing mostly on the use of wooden wedges to plug holes. And you can experiment with this yourself, at least in 2D, with Sinking Simulator.

1 This was one of the major causes of the loss of HMS Victoria, which sank when water reached the gunports. The other major factor was insufficient watertightness, as doors were either not closed or leaked, and other paths for progressive flooding undermined any attempt to combat the flooding.

2 I say "substantial" because in normal operation the aftmost shaft gland does drip a thin stream of water into the ship. This is necessary to allow the shaft to rotate, and is easily handled by the bilge pump.

3 Four more were sunk by mines. One capsized, two more sank with large lists and the only one that sunk upright was reported to have suffered damage to the center bulkhead.

4 Iowa's boiler rooms could almost certainly have been divided in half at minimal cost in weight, for instance.

5 Interestingly, the third of the Yamatos, Shinano, was converted to an aircraft carrier and sunk by the submarine Archerfish on her first trip to sea. She succumbed to progressive flooding due to a lack of watertightness and an untrained crew.

6 Compartments were often tested by raising air pressure above atmospheric, then seeing how quickly the pressure dropped.

7 Technically, she was known as Lafayette at the time, as she was taken over by the US after the fall of France.
