June 20, 2018

Second-Generation Battlecruisers

The first battlecruisers were the product of Jackie Fisher's efforts to find a more cost-effective way to protect British trade. They were the size of contemporary battleships, trading armor for guns. The Germans answered with ships that were better-balanced, with lighter armament but battleship-scale armor.

Around 1909, the battlecruiser grew rapidly, much as contemporary battleships did. In Britain, this was spearheaded by HMS Lion and her sister ship, Princess Royal, both part of the "We want eight" 1909-1910 program. Lion was the first British ship armed with the 13.5" gun, a change from the slightly improved Indefatigable originally planned that was made possible because she was being built in the Royal Dockyards instead of a commercial yard. Making late changes to a design in a commercial yard would have meant serious penalties under the contract, but the Dockyards were under the navy's direct control.1

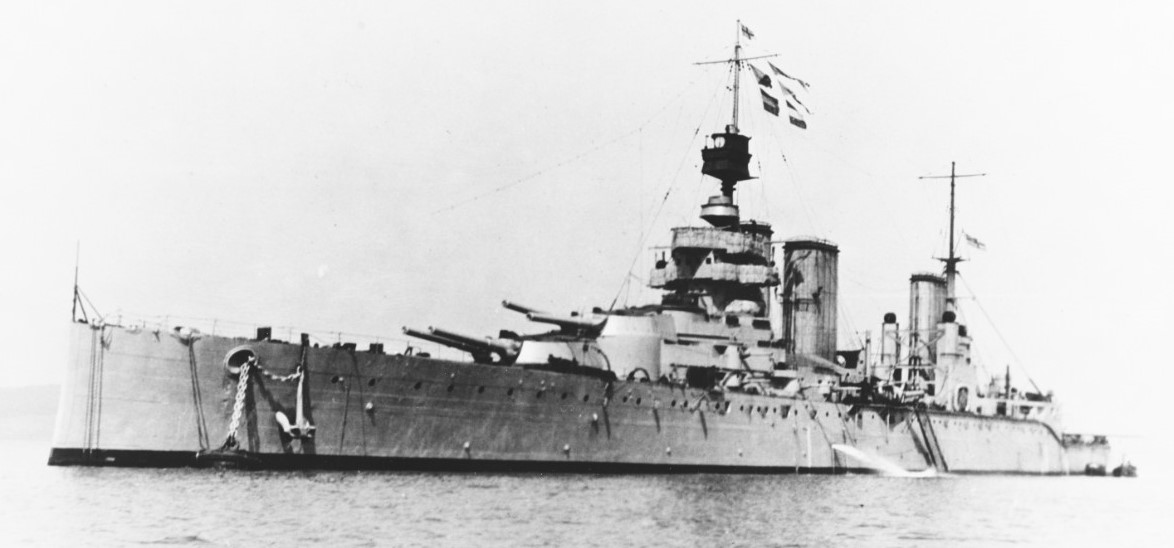

HMS Lion

Lion was a dramatic move away from the previous lightly-armored battlecruisers and into a ship that was more of a fast battleship, although not to the extent of the German battlecruisers. The 9" belt was 50% thicker than those of the previous classes, and a 6" upper belt was fitted, something completely absent from the previous classes. One of the major drivers for this was the increase in battle ranges, which meant that armor was now potentially useful against heavy shells. The four 13.5" twin turrets were finally all on the centerline, including a superfiring turret forward.2 Speed also increased from 25 to 28 kts, to match the German Moltke.

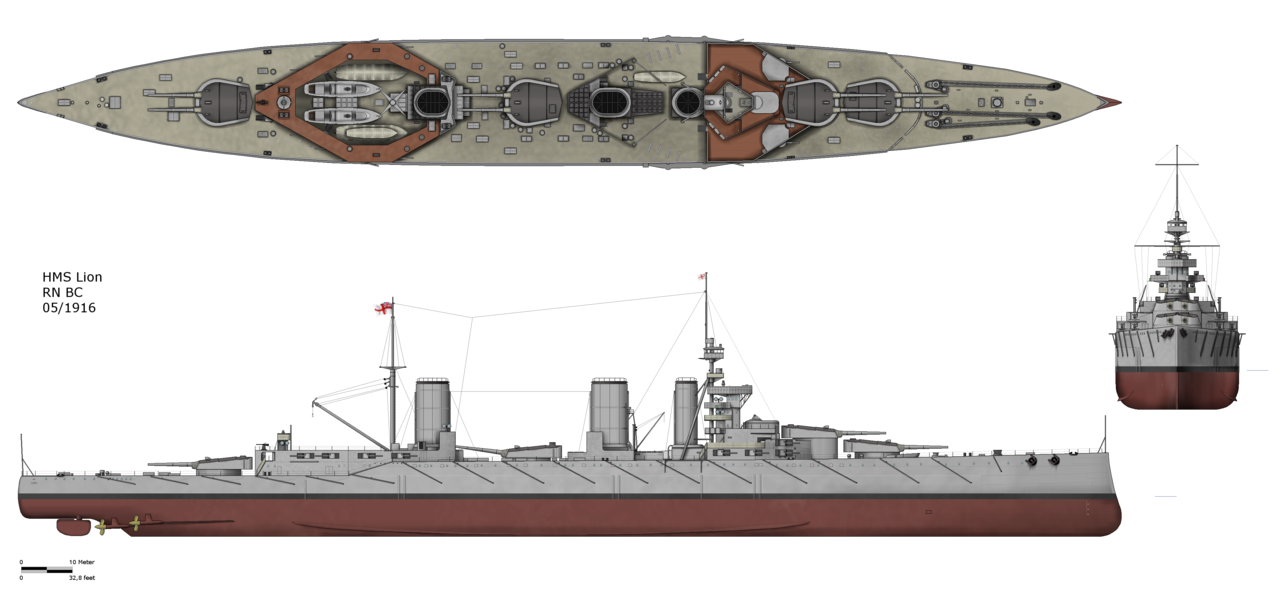

Lion at the time of Jutland

All of this didn't come cheap. Lion was 7,600 tons heavier than the 18,750 ton Indefatigable, 110' longer, and 8'6" wider. She was the largest warship afloat, 1,400 tons heavier than Seydlitz, the most recent German battlecruiser. However, Seydlitz had an extra 3" of belt, provided largely because of much smaller machinery spaces for nearly the same power.3 The only retrograde step was in range, which fell from 6,700 nm to around 5,600 nm at 10 kts. This is indicative of a pivot from the original mission of raider hunting to a greater focus on operations with the fleet in the narrow waters around Europe.

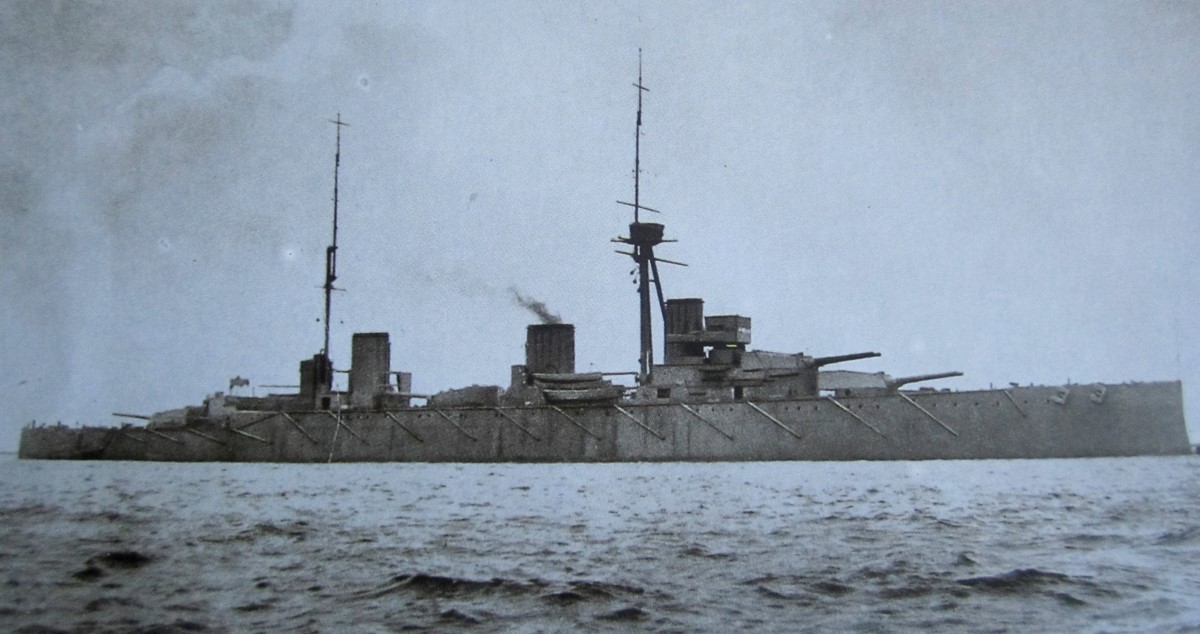

Lion before being rebuilt. (Compare to top photo.)

While a great leap forward relative to their predecessors, the Lions did have a serious flaw. All of the 1909-1910 ships had a single mast aft of the funnel, and their high-powered machinery meant that Lion's top proved totally uninhabitable during trials. The entire arrangement had to be rebuilt, at considerable expense, moving the funnel behind the top.

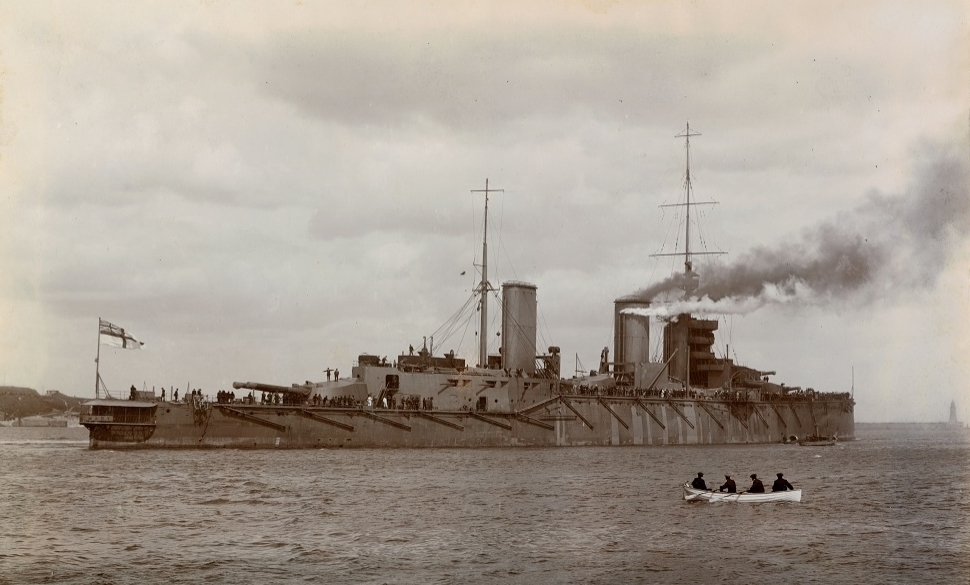

HMS Queen Mary

The next British battlecruiser, Queen Mary of the 1910-11 program, was a near-sister of Lion. The changes mirrored those between the Orions and the King George Vs, slight tweaks to the armor and better protection for the secondary guns.

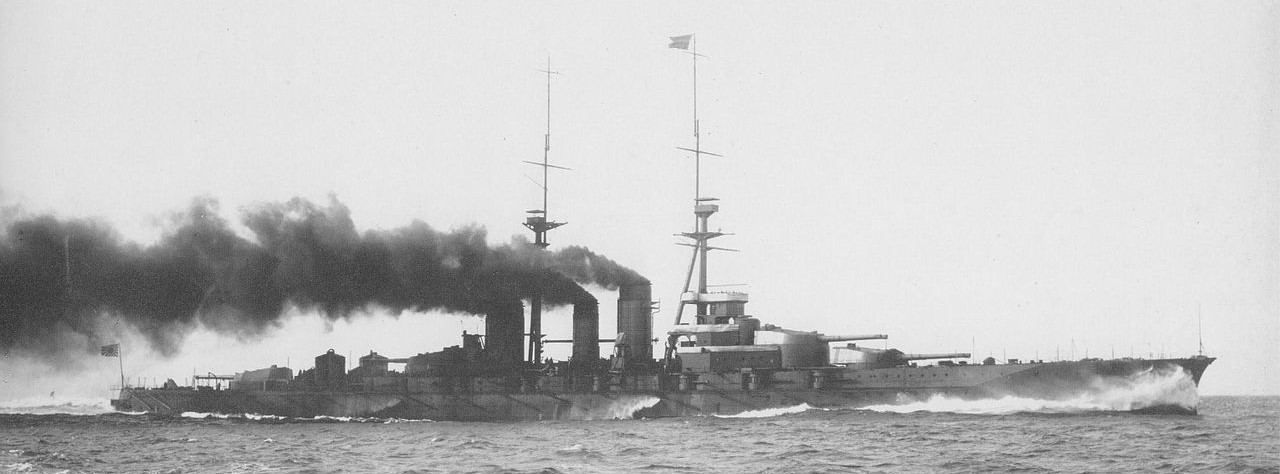

Haruna of the Kongo class on trials

Two months before Queen Mary was laid down, another battlecruiser was started at the Vickers yard in England. This ship, the Kongo, was the lead ship of a class built for the Japanese. The other three units were built in Japanese yards, giving that nation possibly the finest battlecruisers in the world. The design was closely based on the Lion class, but the guns were 14", and the third turret was placed behind both funnels, giving better arcs of fire. The belt armor was somewhat thinner than in the Lions, 8" to the waterline and 6" above it.4 The secondary armament was 16 6" single guns and 8 submerged torpedo tubes. These ships were extensively reconstructed between the wars, emerging as early examples of the fast battleship.

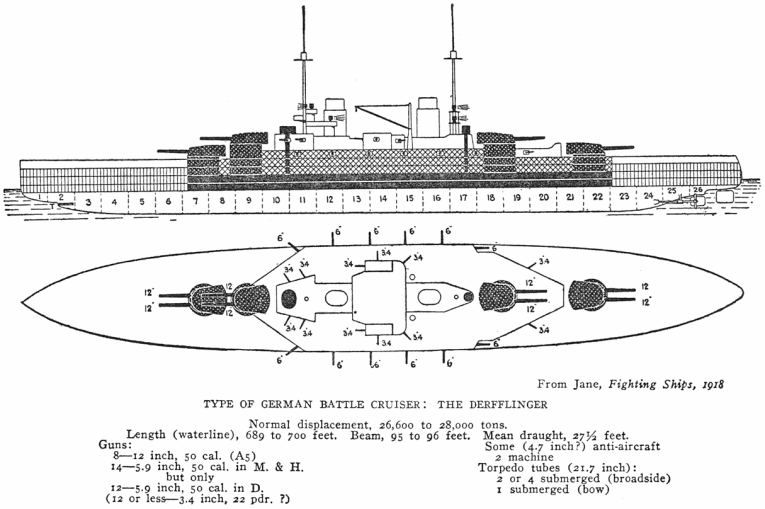

The Germans finally made the leap to the next generation with their 1912 battlecruiser, Derfflinger. She was only slightly larger than Seydlitz, but the 10 11" guns were replaced by 8 12" guns, in an arrangement similar to Kongo. Tirpitz was not happy with this growth, but it was increasingly difficult to hold down the size of his vessels in the face of the new British ships. The initial plans had the ships built with three shafts, instead of the four of previous ships, and the center shaft powered by diesel engines. This arrangement was not used when it turned out that diesels were simply not ready to fill the role, in either power or reliability.

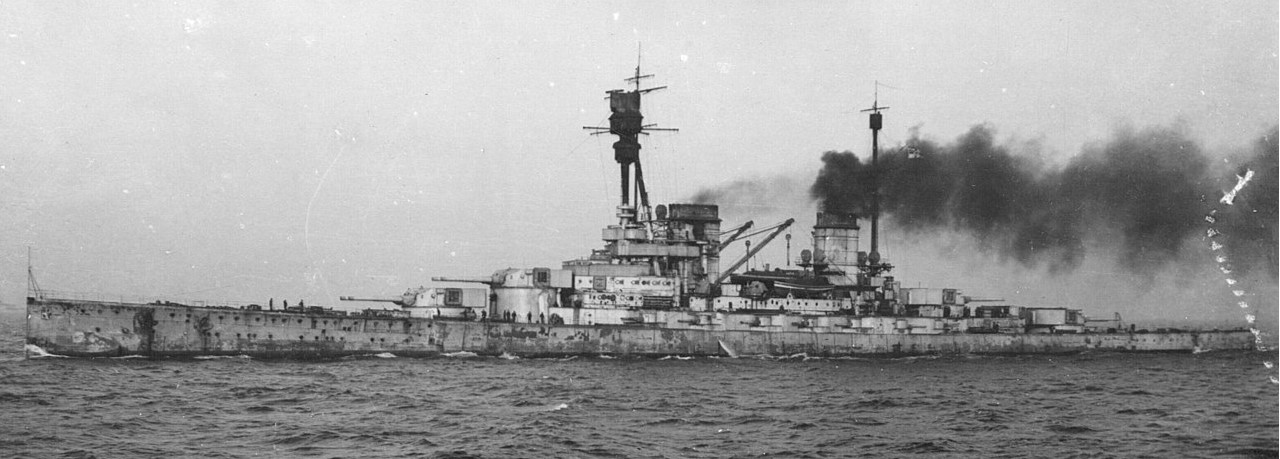

Hindenburg surrendering to the British at Scapa Flow

Two more ships of the same class followed Derfflinger, Lutzow and Hindenburg. Derfflinger had been fitted with anti-roll tanks,5 but these were found to be ineffective and not fitted in the later ships. As a result, the anti-torpedo-boat armament was increased from 12 to 14 6" guns. The four submerged torpedo tubes were also upgraded to 24" in Lutzow and Hindenburg from the 19.7" of Derfflinger and previous classes. This meant an enlarged torpedo room, which proved a fatal weakness for Lutzow at Jutland when it flooded due to British shellfire. Hindenburg had more powerful engines giving her an extra knot of speed, but she was completed too late to see action.

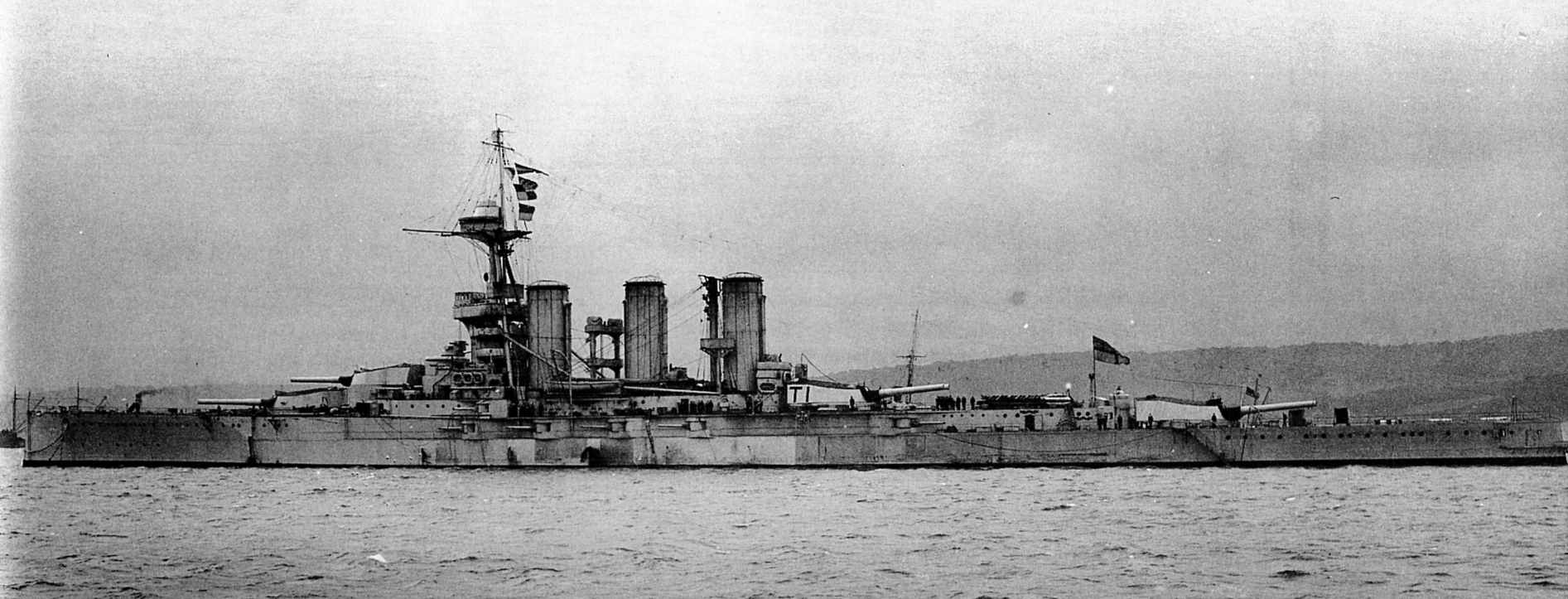

HMS Tiger

At nearly the same time as the Germans were laying down the Derfllingers, the British started the last of the "Splendid Cats", their term for the 13.5" battlecruisers,6 Tiger. She was the battlecruiser equivalent of Iron Duke, with 6" guns in casemates with 6" armor, and the former center turret moved aft of the funnels. Speed was increased to 29 kts, and an extra pair of submerged torpedo tubes were added. She was generally considered broadly equivalent to her German contemporaries, despite her heavier armament.

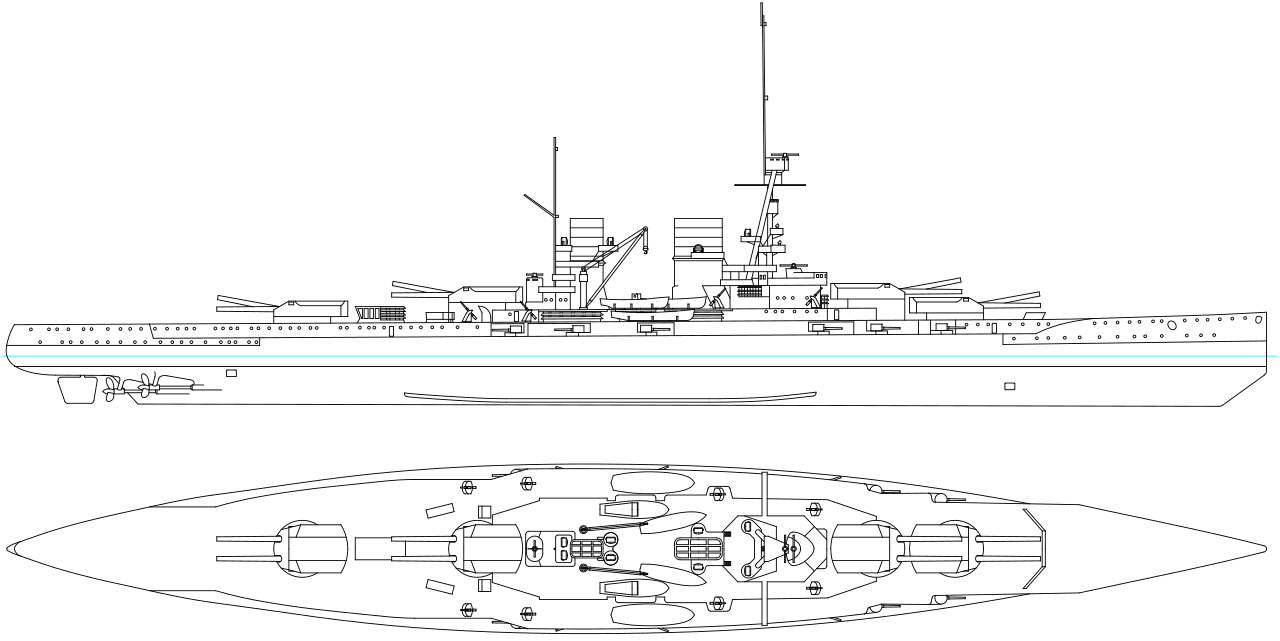

A drawing of the Mackensen class

The development of the fast battleship in the form of the Queen Elizabeth class removed the incentive for further battlecruiser construction on the part of the British, but the same wasn't true on the other side of the North Sea. The next German battlecruiser had a contentious birth. Tirpitz was attempting to keep costs down, particularly as the German Army was getting an increasing priority for funds. The Kaiser was not happy that Hindenburg had not been fitted with bigger guns, as had the battleships of that program year, the 15" Bayern class. Eventually, the decision was made to go with 8 14" guns, as Tirpitz was still focused on maintaining a gap between the battleship and battlecruiser while trying to hold size down below 30,000 tons, in accordance with a promise made to the Reichstag. The first pair of the resulting Mackensen class were ordered days after the outbreak of war, and ultimately none were completed due to other demands on Germany's resources.

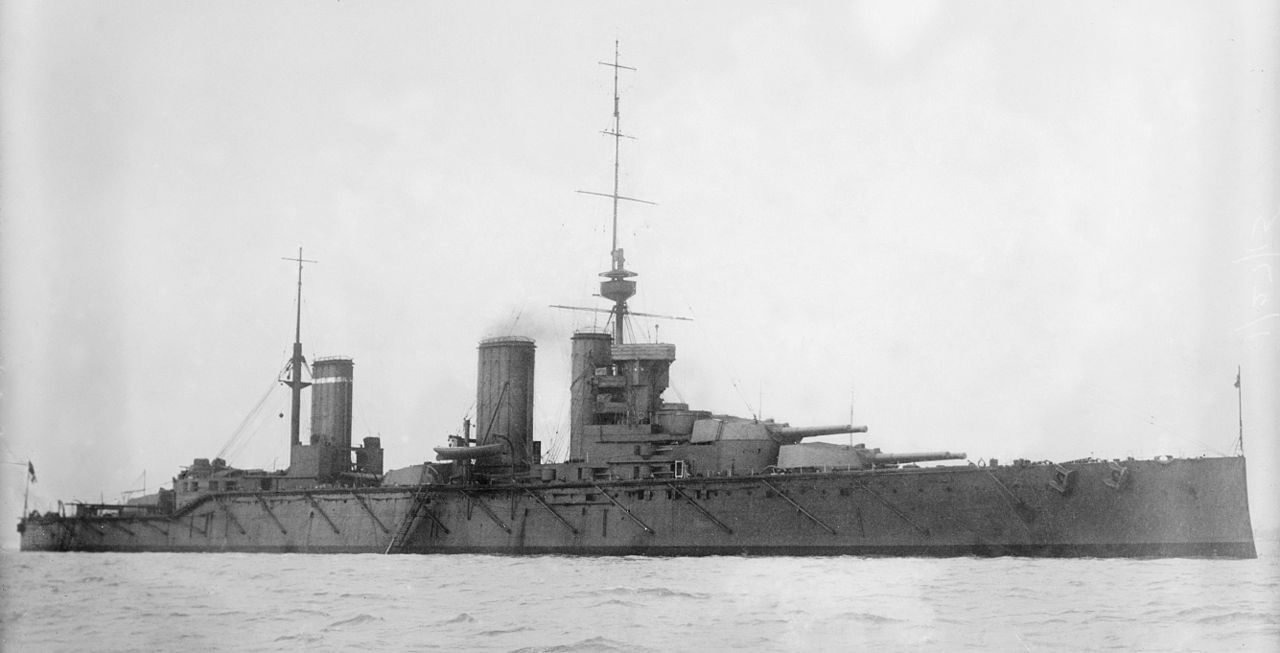

Princess Royal

The war would give a new lease on life to the battlecruiser in British service as Jackie Fisher returned to the Admiralty, ultimately producing both some very strange ships and a true fast battleship in the form of Hood. The Germans made plans for more battlecruisers, too, but they never carried them out. Even the Americans got into the picture, trying to buy some very large, very fast, and very lightly armored ships. We'll look at the various wartime battlecruisers next time.

1 This also applied to Orion, and to many later ships on both sides of the Atlantic.

2 There was a late proposal to stretch the ship 3 frames (12') and add a second turret superfiring aft. The marginal cost, except to the armament budget, was minimal, but for unknown reasons, the suggestion was not adopted.

3 This is largely a matter of design standards. The British, expecting to operate at sea for long periods and in distant waters, built in much greater access to their machinery than did the Germans.

4 One of my sources indicates that the armor was specified to resist 14" fire at 20-25 kyrd, possibly the first example of the immune zone I've ever seen.

5 These are spaces partially filled with water and carefully shaped so that the period of water flowing back and forth damps out the ship's rolling.

6 This name was used even though neither Mary, Princess Royal nor (Queen) Mary of Teck were cats. At least as far as we know.


  1. June 20, 2018Tony Zbaraschuk said...

    So, how did it possibly come about that someone thought that putting the mast behind the funnel would result in anything other than barbecued topmen??

  2. June 20, 2018bean said...

    I honestly have no clue. Maybe they thought that because it wasn't totally uninhabitable on Dreadnought, it would work for Lion, too. I really should look into that more.

  3. June 20, 2018Gareth said...

    I vaguely remember reading somewhere that the German battlecruisers and/or dreadnoughts had superior protection than their British counterparts because, not being designed for long distance cruises, they didn't have space devoted to crew accommodations. I was reminded of this when you mentioned machinery access, it seems a bit too cute to be true. Do you know if there's anything to that?

  4. June 20, 2018doctorpat said...

    anti-roll tanks, but these were found to be ineffective and not fitted in the later ships.

    How do you build a big feature into a major warship and it turn out to not work? OK, I'll grant this in cases of actual weapons or protection, because the enemy may not cooperate with your efforts the way tests assumed. But this was stability, they could test it perfectly well anywhere they had an ocean available.

    Is it that it worked on smaller test cases, but in the battlecruiser it didn't scale up as expected? Did the construction mean that they got the feature wrong and it would have worked if they'd redesigned it? Or did they not even try on smaller test cases?

  5. June 20, 2018bean said...


    That was a part of it. Particularly at the time, habitability standards weren’t the driver of ship size they are today, they still had an impact. The German ships were much worse than the British, to the point that, IIRC, the British on getting their first look at Baden assumed that the German sailors stayed in barracks ashore when in port because of how bad they were. They didn’t. They just had terrible accommodations.


    I suspect it was not scaling up well. There were lots of aspects of ship movement (pitching is a major one) that weren’t sorted out until computers became available, despite trials with models. The same problems are going to come up in this kind of dynamic fluid device.

  6. June 20, 2018RedRover said...


    Somewhat related, the gun on the Zumwalts is effectively non functional because they stopped developing ammo for it.

  7. June 21, 2018bean said...


    That's a bit different. I believe those were cancelled because it had become obvious that the Zumwalt was never actually going to fight, because it's a stupid and useless design.

    @doctorpat (again)

    How do you build a big feature into a major warship and it turn out to not work?

    It's more common than you might think. The USS South Carolina spent a few years with no functional weapons because different computer systems onboard used different word lengths. An anti-roll tank is small change by those standards.

  8. June 21, 2018Gareth said...


    Thanks, I think the source I'm remembering was repeating the barracks story uncritically.

  9. June 22, 2018bean said...

    Don't get me wrong. There were a lot of features driven by the short range/North Sea focus of the KM. I've mentioned restricted access, and I'd guess that a ship in port is somewhat nicer to live on than a ship at sea, even if you really should be in barracks ashore. For instance, it was common to let men sleep on deck, but that's much more pleasant in harbor than while at speed in the North Sea.

Comments from SlateStarCodex:

  • bean says:

    Naval Gazing is looking today at the second generation of battlecruisers.

    • Nornagest says:

      The single mast forward of the funnel common to the 1909-1910 ships was used on them…

      Should this be “aft of the funnel”, or am I misreading this somehow?

      • bean says:

        Are you by any chance interested in being a proofreader?

        • gbdub says:

          Who the hell was proofreading the battlecruiser design and thought that “right behind and above this tube spewing a huge cloud of thick black smoke” was ever a good place to put a structure whose main purpose was to house people needed to provide forward visibility?

          • Aapje says:

            A smoker?

          • bean says:

            I’d have to check to be sure, but it may have been Jellicoe.

          • gbdub says:

            It just seems so obviously stupid, like the proverbial screen door on a submarine.

            One thing that seems odd is that the funnel the mast is behind is noticeably smaller than the other two funnels. Presumably it was connected to fewer boilers? How did this layout come about?

            Maybe it was a funnel only used occasionally? But then the times you need to go fast are probably also the times you want to be extra sure you have good visibility. Maybe you only fired up those boilers to go real fast and at those speeds the smoke was blown clear of the top?

            Even then though it’s unclear why that mast location would ever be a better option as opposed to a merely tolerable one.

          • bean says:

            One thing that seems odd is that the funnel the mast is behind is noticeably smaller than the other two funnels. Presumably it was connected to fewer boilers? How did this layout come about?

            It is indeed connected to fewer boilers. Figuring out how to lay out the upper deck was a really complicated issue. Funnels take up deck space, but trunking lots of boilers together into a few funnels takes up a lot of volume, too. I don’t know all of the details that lead to the design adopted.

            Maybe it was a funnel only used occasionally? But then the times you need to go fast are probably also the times you want to be extra sure you have good visibility. Maybe you only fired up those boilers to go real fast and at those speeds the smoke was blown clear of the top?

            Nope. I’ve never even heard of that as a possible solution, actually. Which is rather strange. There’s an article on the subject that DK Brown references, and which I don’t have access to.

          • gbdub says:

            FWIW I was inspired by this picture of Lion steaming apparently without the front funnel boilers lit. And of course at anchor it looks like they used only the boilers under the middle funnel.

          • bean says:

            Interesting. I can’t recall having ever seen a picture like that. I don’t ever recall seeing that mentioned as the plan, but they apparently did do it. Given that that’s after the rebuild, I suspect it may have been to keep the bridge clear of smoke, not the top.

          • John Schilling says:

            If this is the explanation, I hope they had the sense to put an extra repeater for the engine telegraph in the tops. With “full” and “flank” relabeled as “slow roasted” and “extra crispy”, just to be fair.
