Secondary Armament - Anti-Destroyer Weapons

While the quick-firing batteries of the pre-dreadnought were eliminated with the arrival of Dreadnought, the secondary gun was not dead. Torpedo boats remained a threat, and one that could not be countered by the main guns, because they trained and fired too slowly.

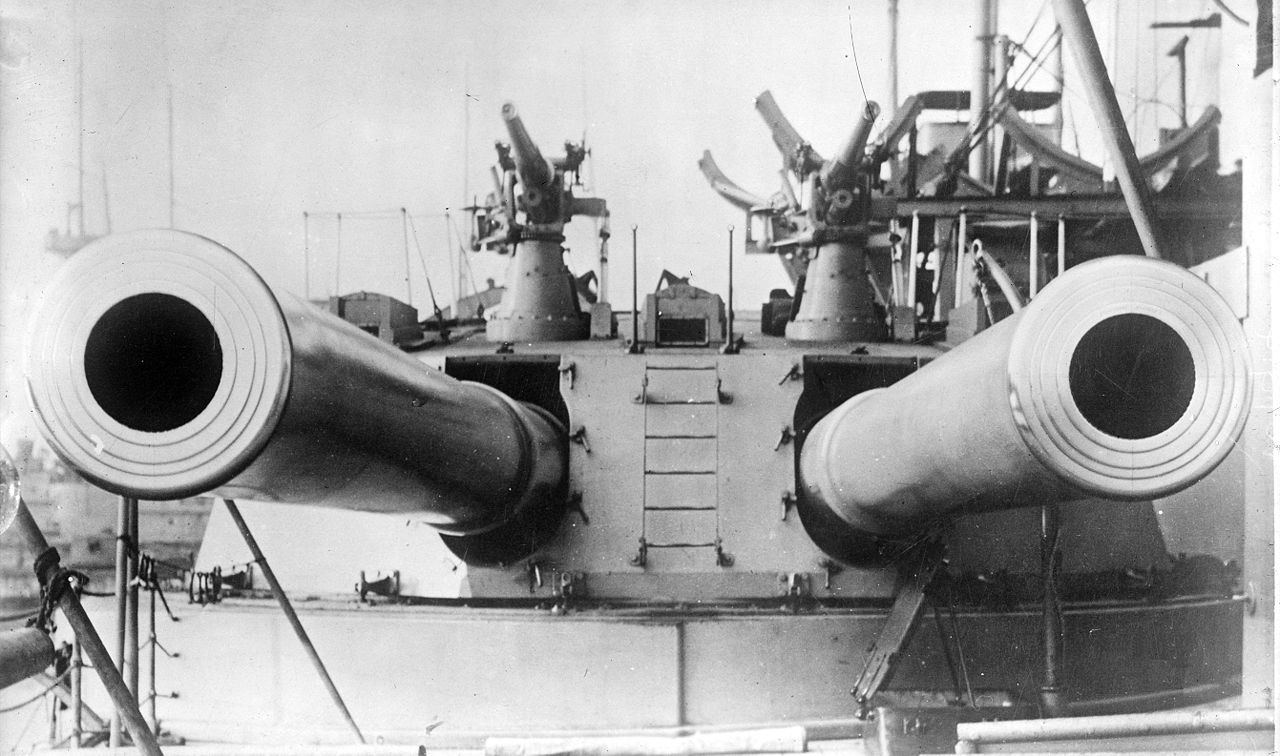

12-pounder guns atop one of Dreadnought's turrets

Dreadnought herself had a light secondary armament, 27 single 12-pounder (3") guns, designed around the threat of independent attack by torpedo boats at night. This meant that the guns would not have to be manned during a fleet action, when the main guns were firing, and thus did not need armor. In fact, it was thought that widely dispersing them would provide greater protection than grouping them and providing light armor. However, they did need to be handy, quick-firing, and have positions with wide arcs of fire. As such, guns were mounted in the open on the main deck and on top of the turrets. Both positions had drawbacks. The ones on the main deck were vulnerable to damage from gun blast when the main guns were fired, although some of them could retract into the deck to mitigate this, while the turret-top guns couldn't easily be supplied with ammunition. Guns at night were useless without searchlights, which had problems of their own.

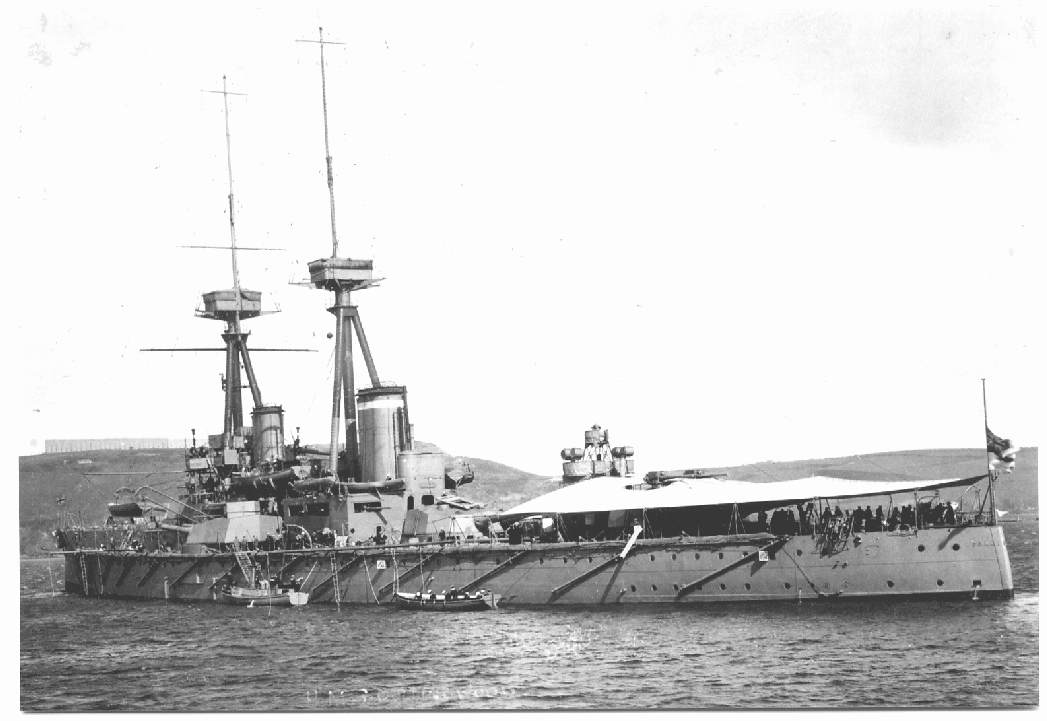

Secondary guns are visible on Collingwood atop Y turret (under awning) and in the aft superstructure

After Dreadnought was laid down, the need for an increasingly powerful secondary armament became apparent. A trial with the destroyer Skate showed that the 3" was only marginally effective, but that the 4" shell was very potent. The increasing range of torpedoes also meant that a longer-range weapon was necessary, and the follow-on Invincible and Bellerophon classes had 4"/50 guns, which remained the standard for most of the prewar ships. However, the fundamental assumptions behind the layout remained the same, and the guns remained exposed until the King George V class five years later. On these ships, some of the 4" guns were moved into the superstructure, behind light armor plating, due to the realization that German destroyer doctrine was very different from their own.

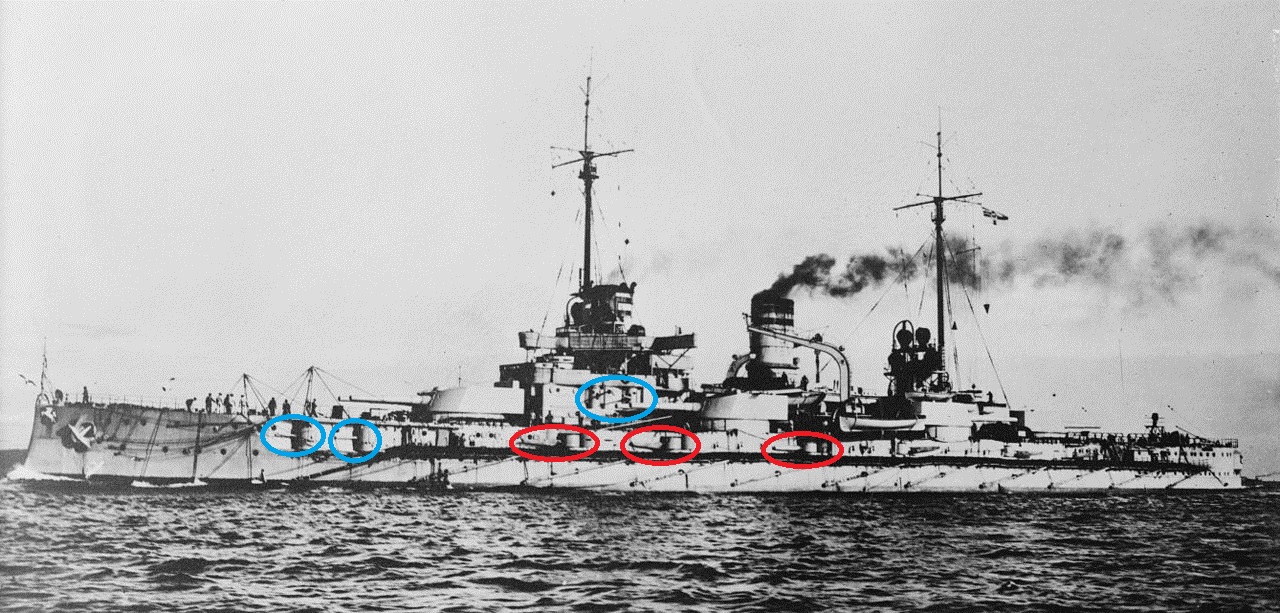

SMS Westfalen of the Nassau class, showing 5.9" (red) and 8.8cm (blue) secondaries

The Germans had long focused on combat in the North Sea, where bad visibility was expected to keep combat ranges short. This meant that the torpedo was expected to be a viable weapon in most battles, and the Germans planned to keep their torpedo boats with their fleet even during a daylight action. This meant that the British would need to use their secondary guns during a fleet action, which in turn required armor and positions that were reasonably safe from the blast of the main guns.

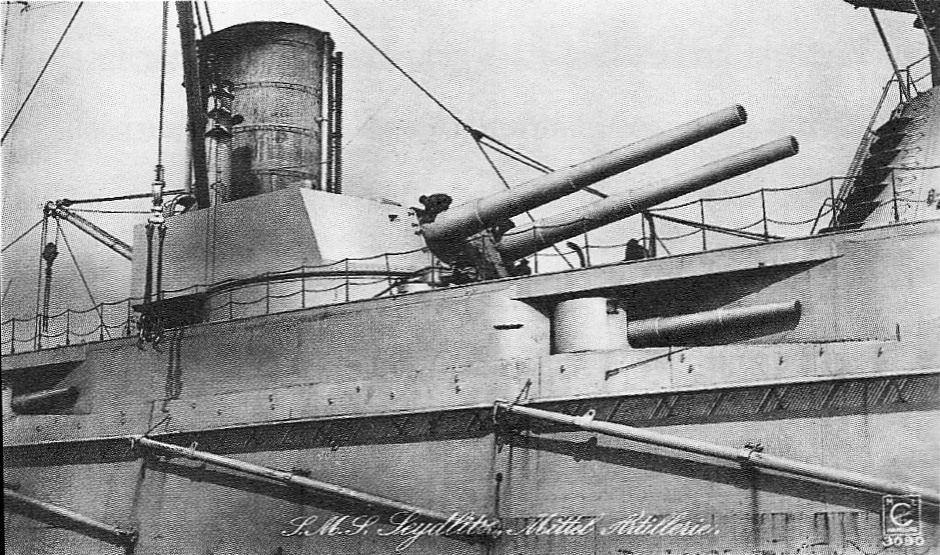

5.9" gun in casemate aboard SMS Seydlitz

This philosophical difference also showed up in the secondary armament of the German dreadnoughts. They were unusual in retaining medium-caliber (5.9") guns in their first dreadnought class, the Nassaus, and used them on all subsequent dreadnoughts. At least initially, this was in large part because the Germans did not fully accept the philosophical underpinnings of the dreadnought. They believed that at the short ranges they expected to fight at, the QF gun remained a valuable weapon against other capital ships, as it had during the pre-dreadnought era. The British believed that they were specifically mounted to strip away the secondary weapons of the opposing fleet, opening the way for the destroyers to attack. The fact that these were not true secondary weapons meant that the Germans mounted another secondary battery of 8.8cm guns, also in casemates, to deal with torpedo attacks. This battery persisted through the penultimate completed class of German dreadnaughts, the Konigs.

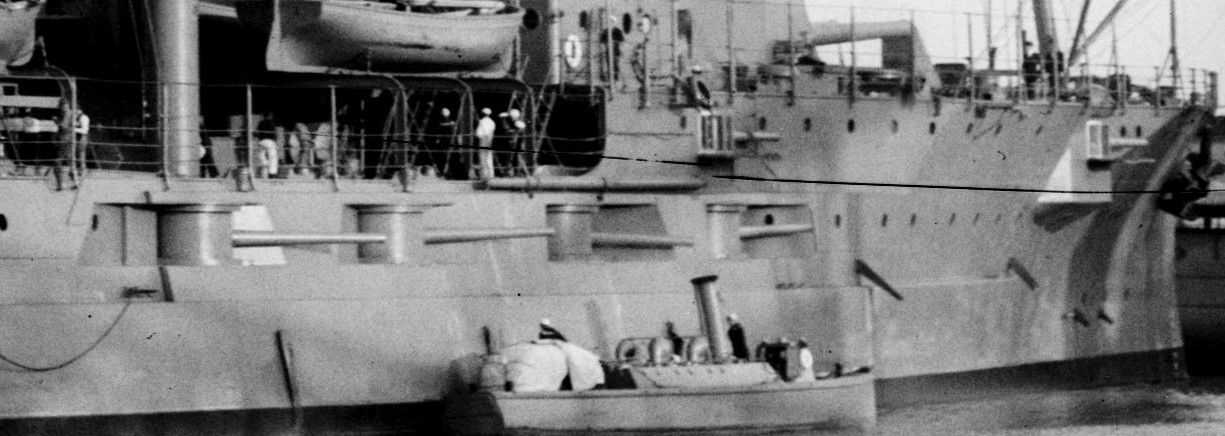

Casemates on USS Utah. Note the sponsoned gun forward.

By 1910, torpedo ranges had gotten longer and destroyers had become bigger and tougher, making the 4" gun marginal, while more armor was needed to protect the secondaries during a fleet action. However, adoption of a 6" secondary was held up until the Iron Dukes of the 1911-1912 program by Jackie Fisher, who opposed it, partially due to an association with the pre-dreadnought, and partially due to a belief that the weight could be better used on speed and firepower. This change accounted for the majority of the 2000-ton increase from the previous King George V class, and the weight of the bigger guns and thick armor meant that the secondary battery now had to be fitted into casemates in the side of the hull, below the main deck, to hold down topweight.1 As with all casemates, these proved very wet. At Jutland, the secondaries on both sides proved rather ineffective, particularly against other capital ships, and several ships saw the ammunition for their secondary guns go up. HMS Malaya in particular suffered a major cordite fire in her starboard 6" casemate, which killed over 100 men and for a time threatened the survival of the ship.

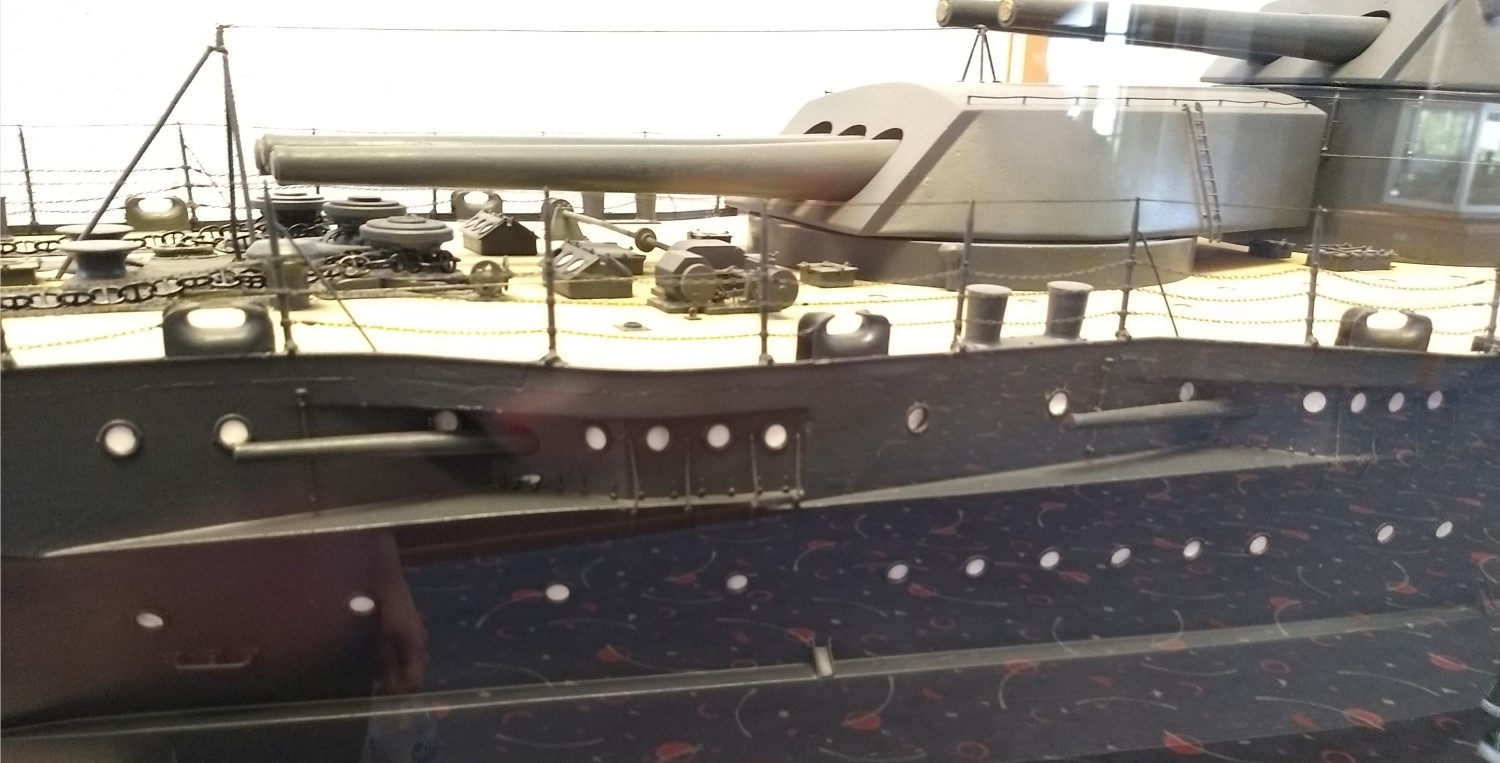

Forward casemate guns on a model of USS Oklahoma2

On the other side of the Atlantic, the US was following a model similar to the British, with the first American dreadnoughts of the South Carolina class having 3" secondaries, and the next class, the Delawares, had casemate-mounted 5"/50s. These were followed by improved 5"/51 guns in the follow-on Florida class, and this weapon was used in all subsequent American dreadnoughts until the building holiday in the 1920s.3 This was a powerful and high-velocity weapon, with a flat enough trajectory that it had a danger space longer than the range out to 3000 yards. However, the US investigated a much more radical solution for the Pennsylvania class, eliminating the secondary battery entirely and putting the weight into improved underwater protection, under the theory that the destroyer would always get through, and it was best to simply be prepared to deal with the results.

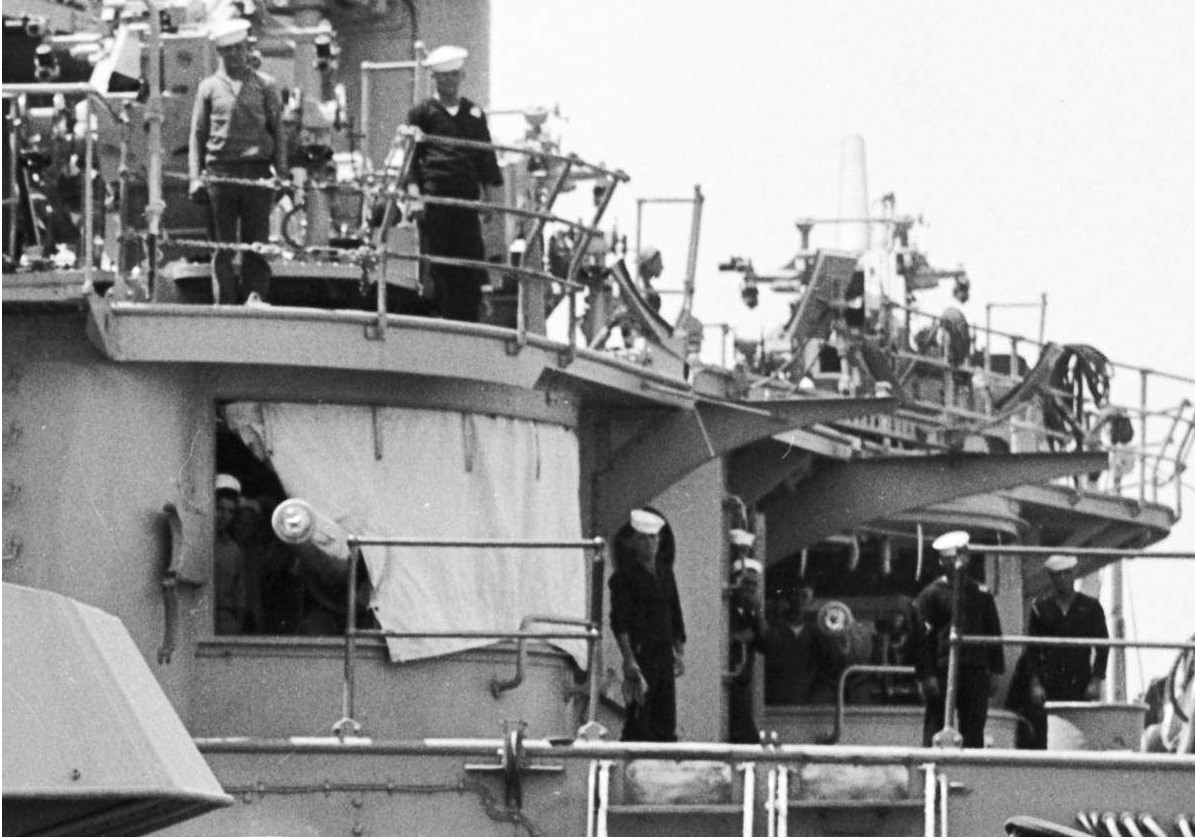

5"/51 guns in the superstructure of California

As battleships continued to grow, it became increasingly obvious that the secondary guns would need to be mounted higher to allow them to be fought in rough seas, particularly as destroyers were also growing and becoming more seaworthy. Casemates also compromised survivability, as openings in the side of the hull would let water into the ship before it reached the main deck if the ship began to sink. The US was an early adopted of the trend, moving many of the secondaries on the New Mexico class into the superstructure. These were still in casemate-style mountings, which limited elevation, and as the range of torpedoes was still increasing, other types of mounts were needed.


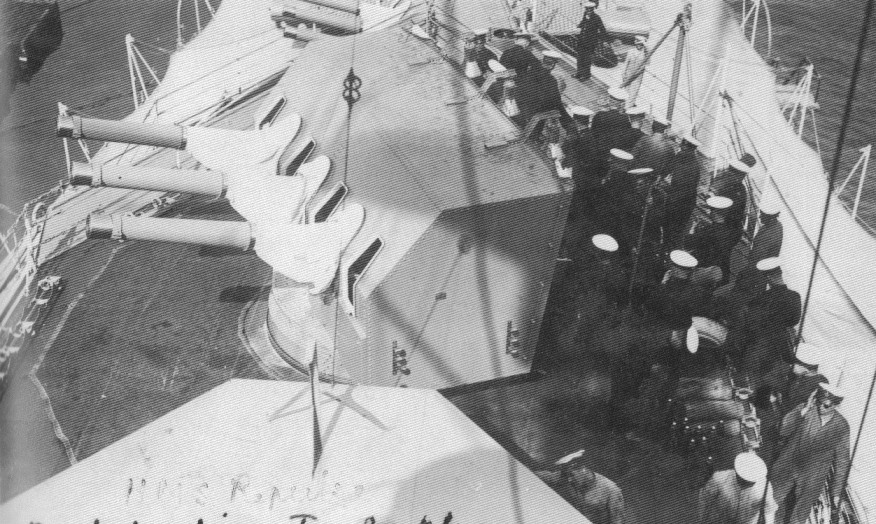

Triple 4" mount on HMS Renown

When WWI broke out, Jackie Fisher returned to the Admiralty, bringing with him his dislike of the 6" gun. Two new classes of battlecruisers were ordered, armed with 4" secondaries. Despite the regression in caliber, an important new innovation, the use of multiple-gun mountings, was employed on these ships. 15 of the 17 4" guns on the Renown class were in triple mounts, which allowed much more efficient use of deck space. However, these mounts were not power-driven, rendering them slow to train,4 and required a crew of 32 men each. Worse, the guns were too close together, and the loaders got in each other's way, reducing rate of fire. Because of these drawbacks, HMS Furious, the last ship built under Fisher's program, was armed with single 5.5" guns instead. The same weapons were used on HMS Hood, whose guns were fitted with shields, which, although open-backed, were the forerunners of later secondary mounts with full gunhouses.

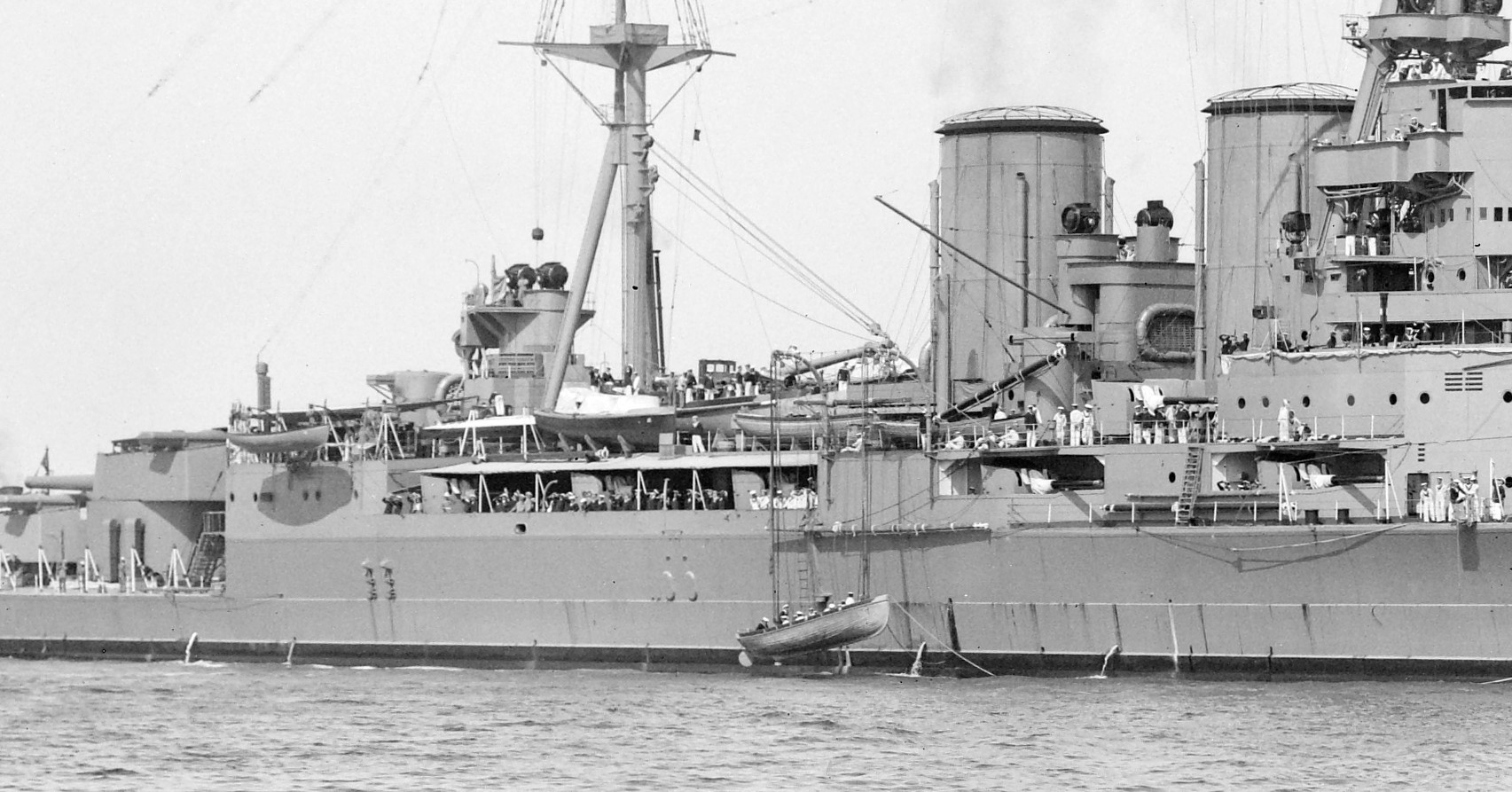

5.5" guns on HMS Hood

These two innovations came together in the postwar Nelson class, which had new 6" guns mounted in twin fully-enclosed turrets on the upper deck. These proved reasonably successful, and most later battleships used full turrets for their secondary armament. One interesting feature was the very high maximum elevation of 60°, intended to give the turrets a secondary anti-air capability. Due to their low elevation and traverse speeds, they were not successful in this role.

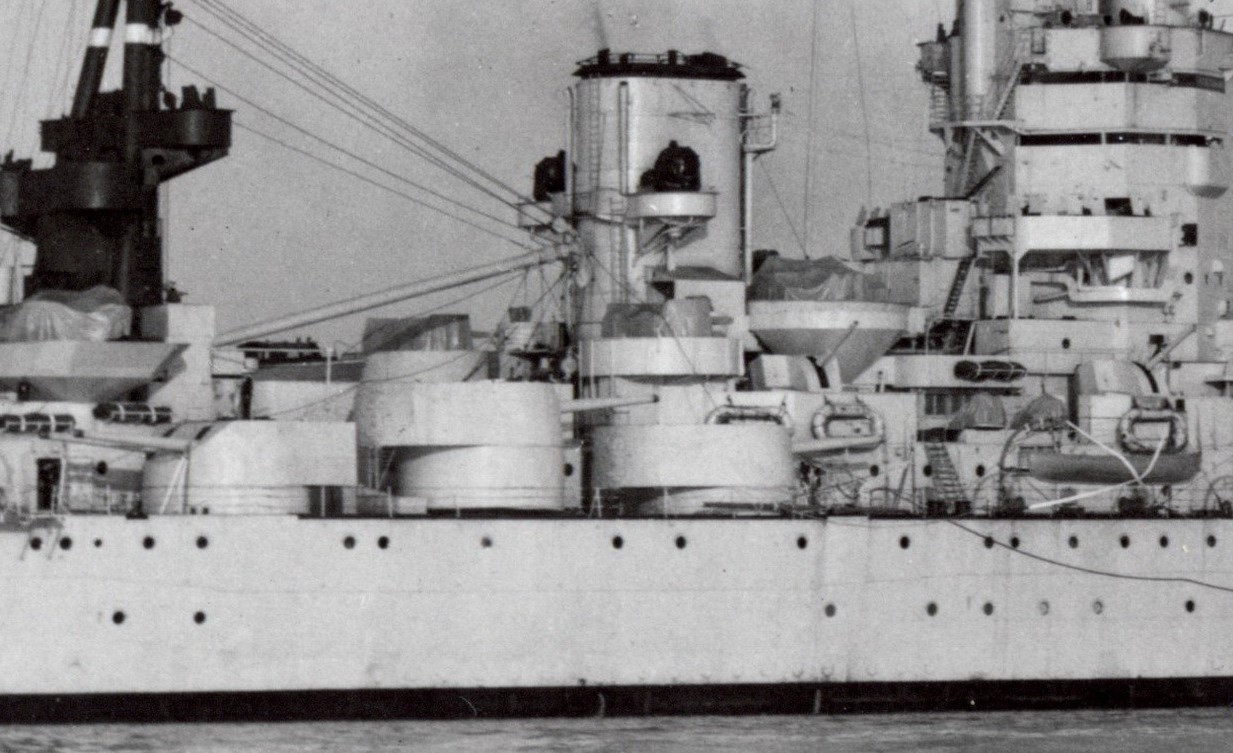

6" turrets aboard Nelson. Note the single 4.7" AA guns at top right.

When battleship building resumed worldwide in the 1930s, there was considerable disagreement about the best way to handle secondary armament. The US and Britain, found the idea of combining anti-surface and anti-air armament attractive and fitted their ships with dual-purpose secondary batteries. All other nations found the power of the big shell too compelling, and fitted their ships with separate batteries, such as the German 5.9" and Japanese 6" weapons. In practice, this choice did not prove particularly successful, as the majority of the ships so armed succumbed to air attack.

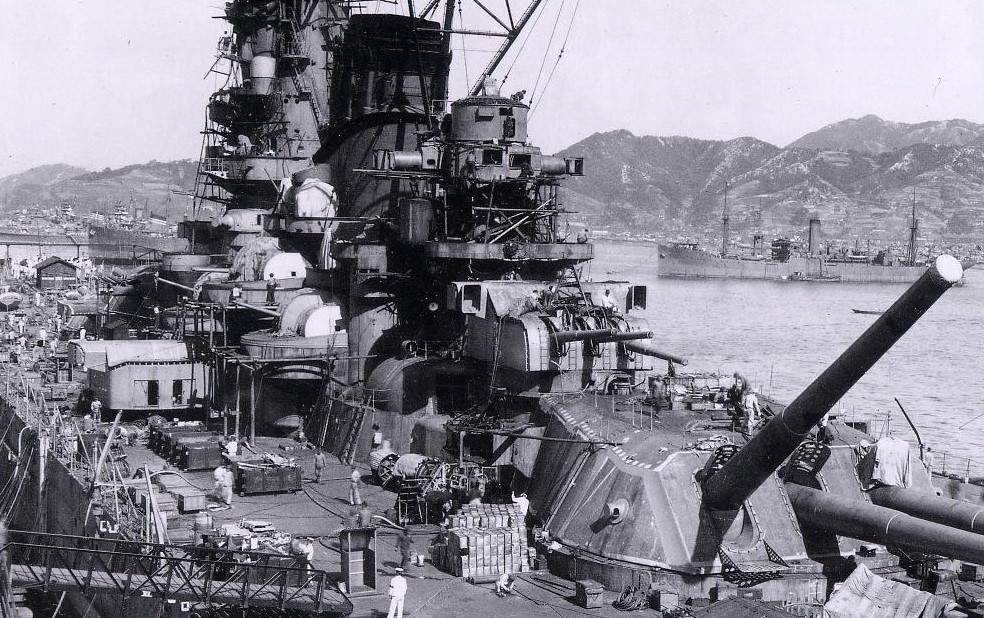

Yamato under construction. Note the triple 6" turret above the main 18" turret

Next time, we'll take a look at the early development of anti-aircraft weapons aboard battleships, as they went from a few small guns bolted to the deck to an integral part of the design.


1 Note that, to a first approximation, the weight of the gun is proportional to the cube of caliber, so going from 4" to 6" increased the weight of the guns by a factor of 3.375, not to mention the weight of the armor.

2 My photo, taken of the lovely model at the Science Museum of Oklahoma.

3 The first South Dakota class, cancelled by the treaty, would have had 6"/53s. The USN had wanted this caliber of secondary gun since the Floridas, but had been thwarted by the need to hold down size.

4 Apparently, standard procedure was to have part of the gun crew push on the muzzle to help the man at the training wheel.
