Given the current concern around drones, it seems worth surveying possible countermeasures in a reasonably systematic way, looking at each category of possible solution and listing the pros and cons of each. Now, this is a big and rapidly-evolving area, and I'm not a specialist in it. But I have done some looking around, and it seems worthwhile to bring this up as a counter to a lot of the triumphalism around drones these days.
First, I'm going to limit the scope here to direct measures aimed at a non-cooperative drone. There are a lot of ways of reducing the drone threat that fall outside this purview, from blowing them up before they launch to compromising their software to simply not being within range, but that gets even more complicated and messy. Second, it's worth pointing out that there are many different scenarios where drones may need to be dealt with, and that some systems may work well in certain situations but not in others. For instance, broad-spectrum RF jamming is absolutely standard on the battlefield, but is not a particularly good first-line solution if you're trying to defend the White House.
Electronic Warfare

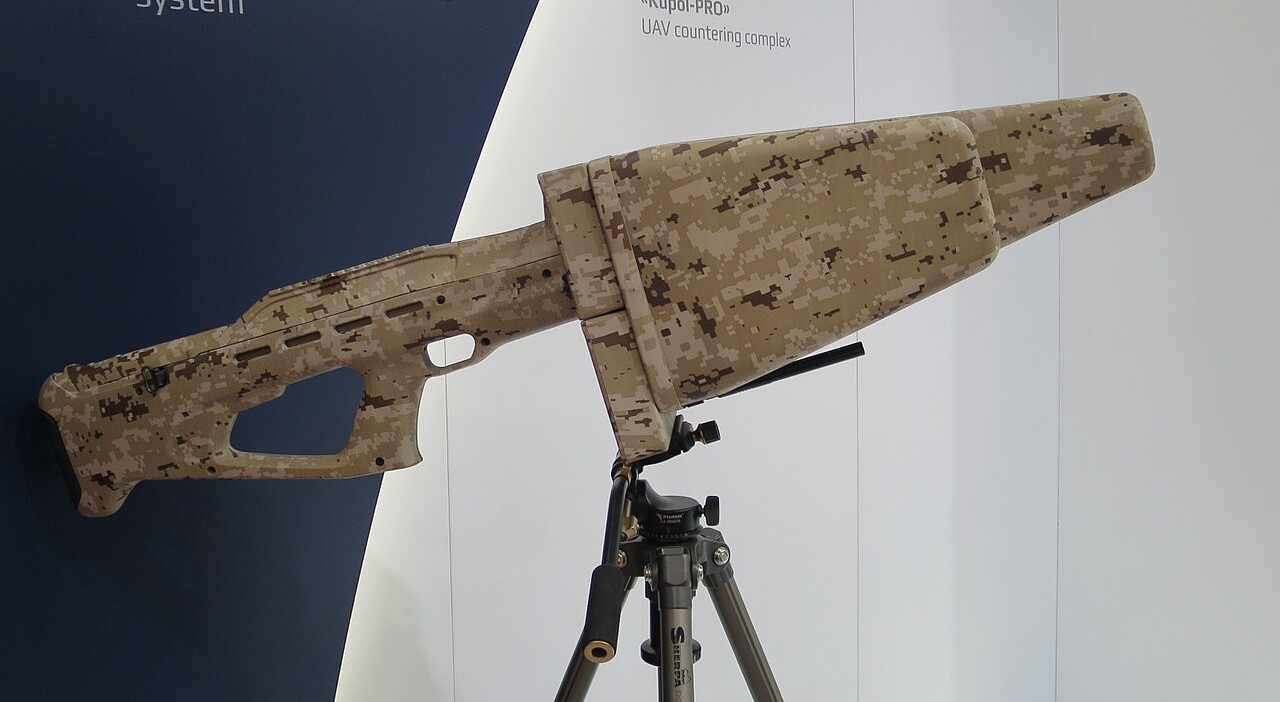

This category covers jammers that are intended to interfere with the link between the operator and the drone. This was one of the main countermeasures to the first guided missiles, and remains vital today.
Pros: The systems exist today, and are currently fielded. Extremely effective against civilian drones, less so against datalinks designed for jam resistance, although even these are not immune. Marginal cost of use is effectively free.
Cons: Doesn't work against drones that are autonomous or guided by wires/fiber optics, which are starting to dominate the battlefield in Ukraine today. Might interfere with legitimate use of the RF spectrum, so not a first-line choice for protecting a base in the US.
Lasers

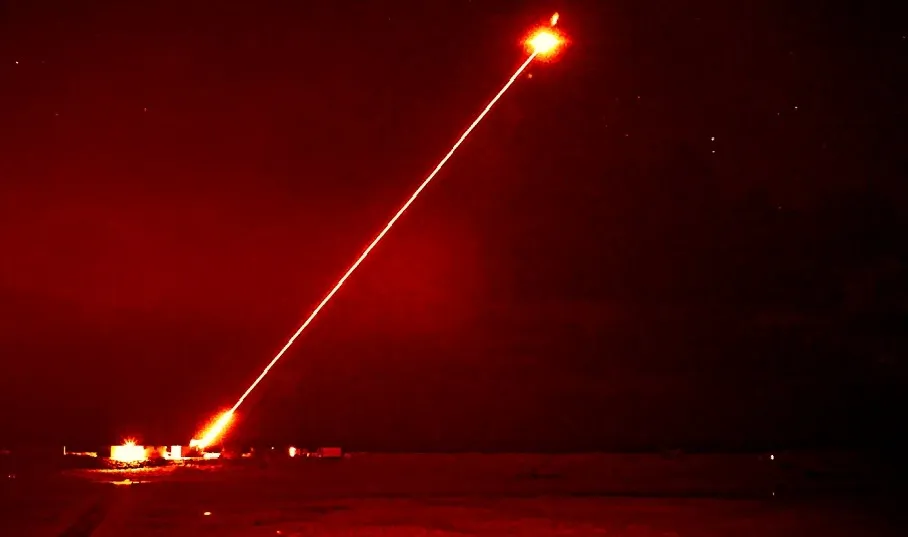

A laser, designed to focus visible or near-IR light onto a target and melt a hole through it so it falls out of the sky. These have gone from the lab to the field over the last decade, and have reportedly been used to shoot down drones by the US Army and probably others.
Pros: Extremely high precision, costs pennies per shot. Systems have begun fielding.
Cons: Limited range (<10 km), takes some time to kill a target so it works best against slower drones. Concerns about eye damage if used near civilian population, although these might be solvable with careful wavelength selection. Systems themselves are fairly expensive and not yet widely available, although this could change soon. Doesn't work well in bad weather.
High Power Microwaves (HPM)
Instead of using a laser to melt the target, why not use a burst of microwaves to fry it in midair? These are slightly behind lasers in deployment, but offer similar possibilities in terms of rapid response and low cost per shot. A few handheld systems, modeled on rifles, have been deployed in Ukraine, while larger systems capable of dealing with multiple targets are under development.
Pros: High precision, costs pennies per shot. Very effective against civilian-grade drones. Available as a secondary capability on high-power modern radars.
Cons: Bigger, automated systems are not yet fielded. Unclear how easy it is to harden drones against HPM attacks, or what sort of collateral damage they might do.
Guns
Basically, a device that shoots out a projectile which kinetically disrupts the drone, either by hitting it or by exploding nearby and peppering it with shrapnel. Simple, reliable, and can take advantage of automation to dramatically increase accuracy.
Pros: Relatively low cost per shot (dollars, most likely, although this can get much more expensive if advanced ammo is used). High probability of kill, useful against other targets.
Cons: Limited range, as the shells can't be controlled after being fired. Serious concerns about collateral damage, and while fancy self-destroying ammunition can mitigate this, it can't solve it entirely.
Active protection system
A cousin to the gun, this is a short-range system intended to take out things like anti-tank missiles and RPGs. These have been reasonably common on western tanks for the last few decades, and are mostly listed here for completeness.
Pros: In widespread service. Reportedly quite effective, although some drones have snuck through after being filtered out due to low speeds.
Cons: Tends to cause a lot of collateral damage. Extremely limited coverage area (basically, one tank/vehicle). Expensive projectiles.
Obstacles
Nets and the like that keep drones (at least small, slow-flying ones) away from the target. Can either be emplaced on a specific vehicle/target or to protect a route.
Pros: Cheap, quite effective.
Cons: Takes maintenance, kind of an eyesore, limited coverage area.
Missiles

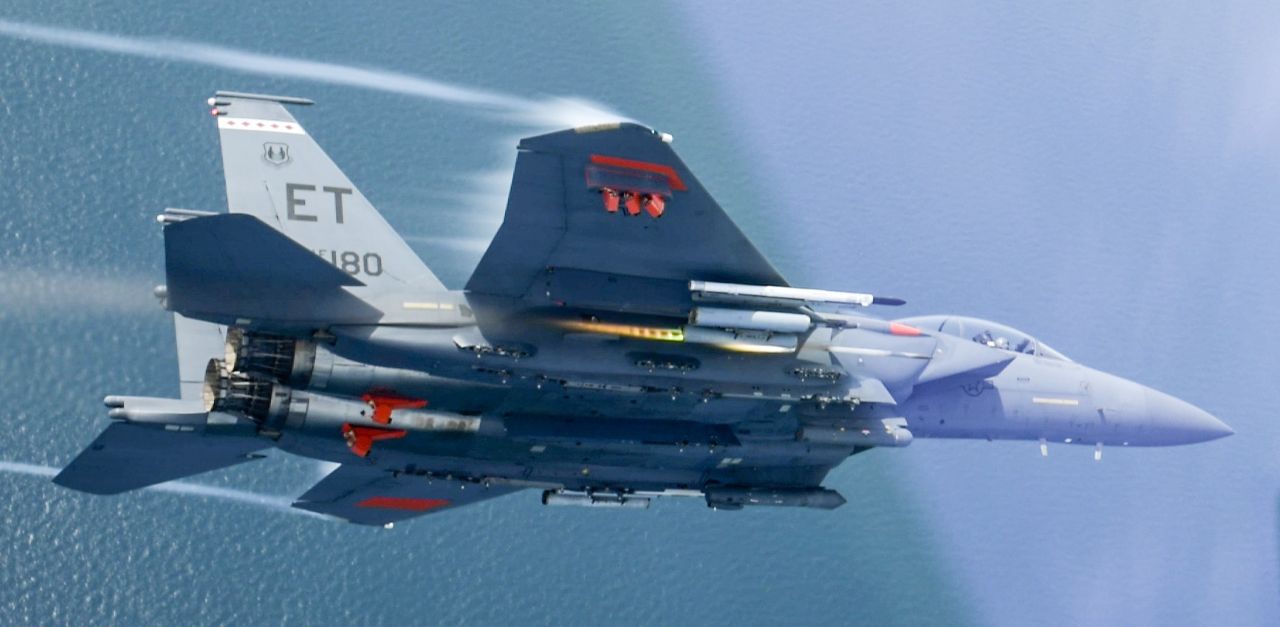

An F-15 loaded with APKWS
This is an extremely broad category, as it covers everything from existing SAMs like Standard to an FPV drone modified to attack other flying things. Obviously, using a million-dollar Standard against a $10,000 drone is probably not good economics, so there's been a lot of work on cheaper weapons in the last decade or so. The standout among currently-fielded missiles for anti-drone work has probably been APKWS, a laser-guided version of the standard 70 mm rocket that costs about $30,000 all-up, a third that of any serious competitor. But this is still a pretty capable weapon, and we should expect the development of cheaper missiles for lower-performance targets in the next few years. And given that I'm using a broad definition of missile here, this could be as simple as "high performance drone plane that crashes into other drones, hopefully in a way that minimizes the danger to people on the ground in the middle of the city".
Pros: Very effective, greatest control over engagement conditions to minimize collateral damage. Support system cost can be relatively low, as more capability is built into the missile.
Cons: Highest cost per shot by far.
One last note is that cost per shot isn't necessarily the best metric to use, because not all systems face the same threat profile. If you're on the front lines in Ukraine and deal with a dozen drones a day, then cost per shot is going to dominate. But a lot of users are not on the front lines in Ukraine. The DoD has said it saw 350 drone incursions over 100 US bases. Maybe it makes sense to roll out lasers at a few of the highest-threat ones, but in a lot of cases, a system with a $100,000 base station firing a $10,000 missile once a year is preferable to a million-dollar laser.
