July 19, 2020

Nuclear Weapons at Sea - Light Attack Part 2

In the 1950s, the nuclear mission was king. The US Navy fought hard to get into it, first with heavy planes to carry the early bombs, and then with more conventional attack aircraft armed with lighter weapons. These formed an important part of the nation's nuclear capability both for general war against the Soviet Union, and for specifically naval missions like attacking underground submarine bases.

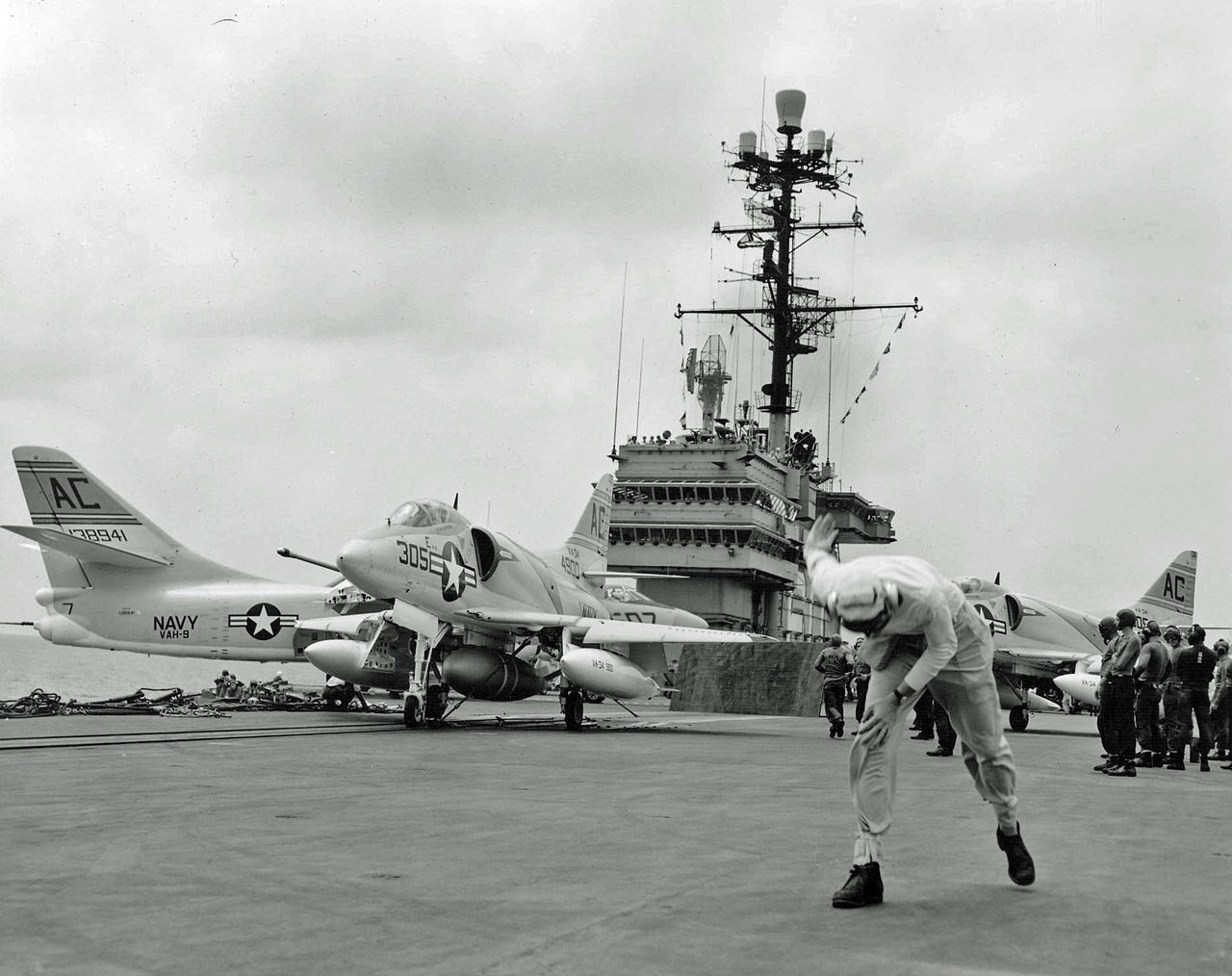

A4D-2 Skyhawk on the catapult with a nuclear bomb

In the late 50s, new aircraft entered service to add capability. The most famous was the A4D (later A-4) Skyhawk, product of legendary Douglas designer Ed Heinemann.1 It was designed around the nuclear delivery mission, and remained in use by the Marines until the 1990s. A few still serve with Argentina and Brazil. More obscure was the FJ-4 Fury, a derivative of the famous F-86 Saber.2 By using buddy refueling, where one aircraft carries extra drop tanks and a hose pod, it could strike targets over a thousand miles away, even further than the much larger A3D was capable of. Eventually, the Skyhawk also gained this capability, and the FJ-4 was retired in the early 60s.

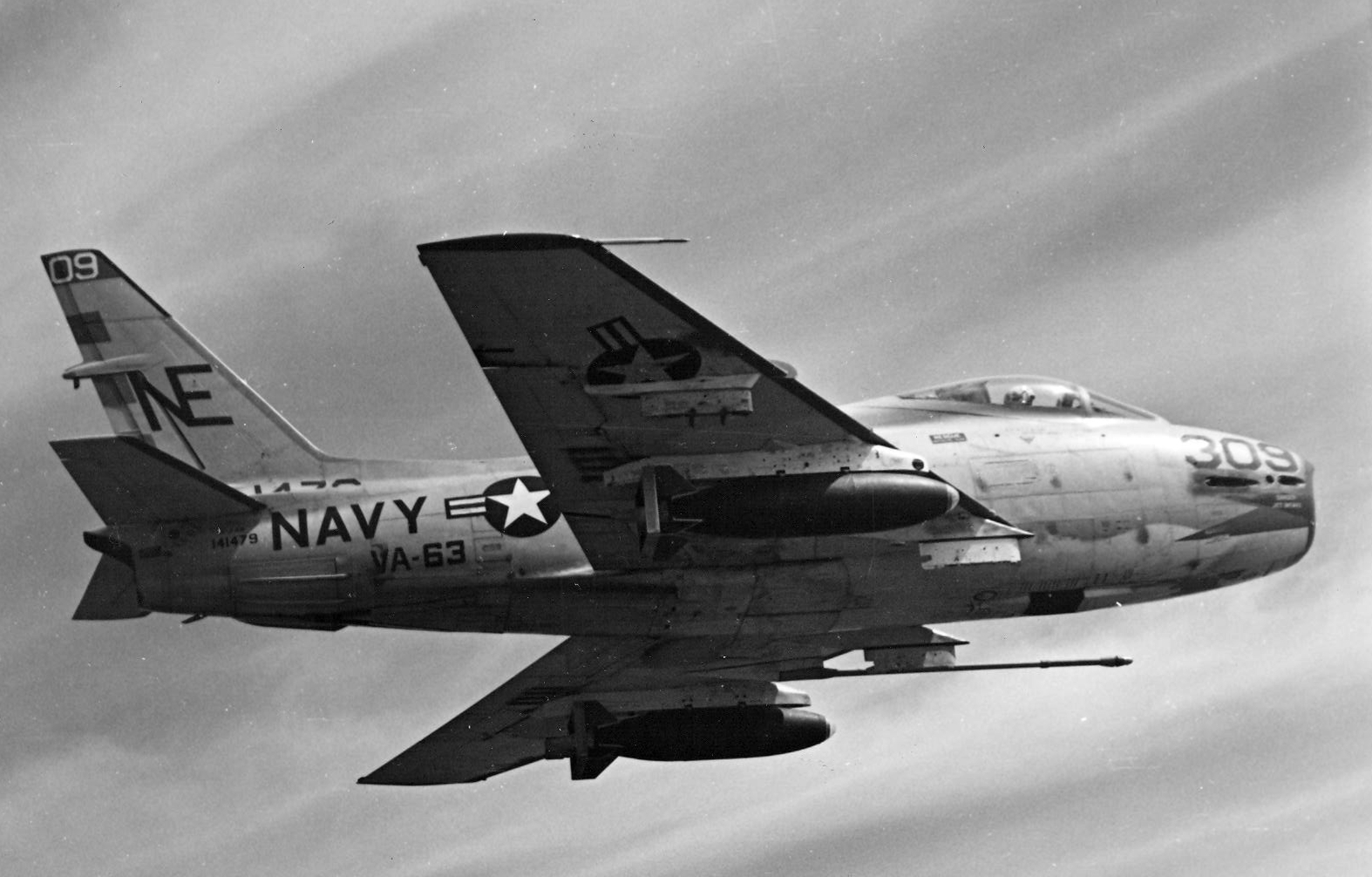

An FJ-4

Throughout the 1950s, the design of implosion weapons continued to improve, as boosting made them lighter and thermonuclear secondaries greatly increased yield. Some work had been done on making them more impact-resistant, largely in conjunction with work on nuclear depth charges, although not enough for a proper penetration bomb of the type used up until then for sub pens.3 The alternative was to use a bigger bomb, detonated on the surface. While it would in theory be possible to impact-fuze the new bombs and toss them at the target, the greater accuracy requirements for attacking hardened targets made this a poor solution. Instead, a new method, known as "laydown", was developed. In this delivery technique, which not only increased accuracy but also greatly improved survivability, the bomb would be released from an aircraft traveling at high speed as low as 200' above the ground. A ribbon parachute would slow it down just enough for the impact-absorbing structures in the bomb to work, keeping it intact while it buried itself in the ground. After the attacking aircraft was safely clear, a time fuze would set it off.

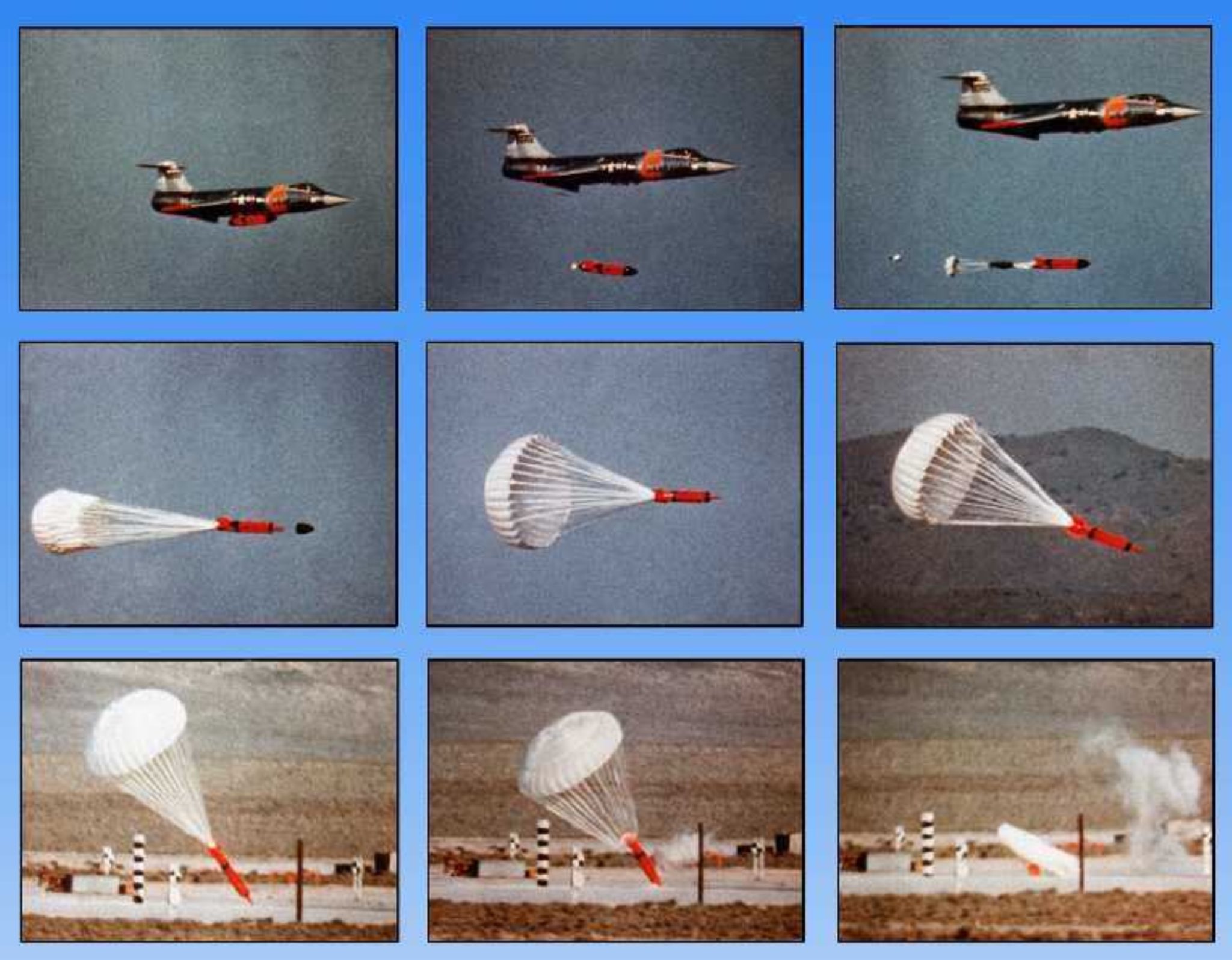

The laydown sequence of a B43 bomb. Note the nose cover being jettisoned, exposing the spike.

The first laydown bomb was the Mk 105 Hotpoint, which used the W34 warhead originally developed for the Lulu depth bomb. It was a relatively small weapon, with a yield of only 11 kT, but it held the line until the arrival of the B43 in the early 60s, a weapon with a yield of up to a megaton and a spike in its nose to keep it from ricocheting. Multiple fuzing options allowed for airburst, ground burst, and laydown, the choice being made depending on the type of target and the delivery method chosen. The B43 and three other weapons made up the bulk of the carrier arsenal throughout the Cold War. These were the B28, the standard US heavy nuclear bomb, the B61, which remains in service today, and the B57, a 500-lb weapon capable of being used as both a bomb and a depth charge.

https://youtu.be/JH7T2dvcUmM New aircraft also arrived to carry these weapons, planes which would see out the Cold War. The A-6 Intruder largely took the place of the heavy attack aircraft, relying on advanced avionics and a 2-man crew to enable long-range, low-level missions at night and in all weather. The last variants remained in US service until 2019. The Intruder's lighter stablemate, the A-7 Corsair II, was actually the result of a pivot away from the nuclear mission in the early 60s. Designed to replace the Skyhawk and drop conventional bombs at the lowest cost per target, it was retired in the early 90s, replaced in turn by the F/A-18 Hornet, which took over its nuclear mission.4

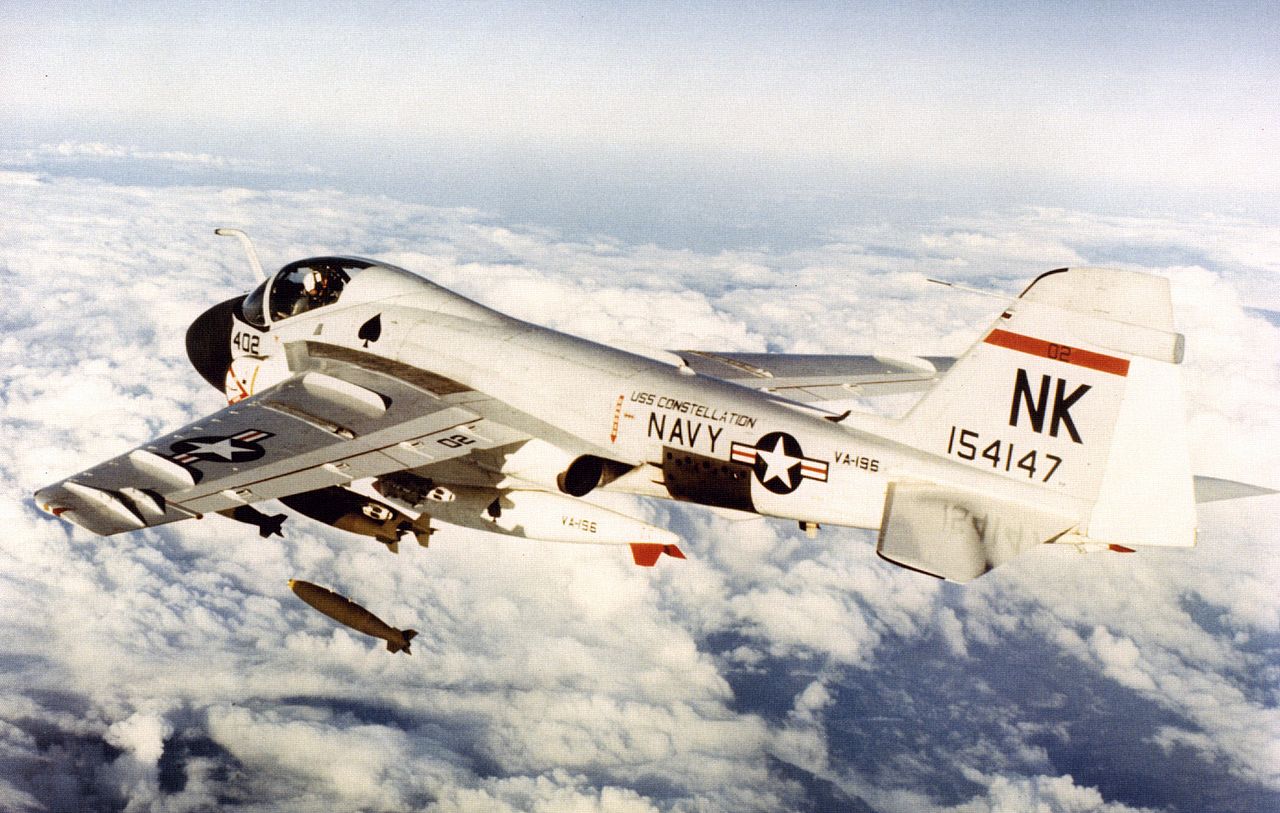

An A-6A Intruder drops bombs over Vietnam

Both of the A-6 and A-7 played important roles in the SIOP, the Single Integrated Operational Plan. This was the combined US nuclear warfighting plan, first set up in 1961, which ensured that the best mix of missiles and airplanes from all services was used to destroy targets as efficiently as possible. Each carrier attack pilot was assigned a specific target before deployment, and had to memorize the preplanned route. In theory, this would keep him clear of any other nuclear weapons, but most pilots were skeptical of their chances of getting back. Because the SIOP timeline was tightly integrated, the aircraft had to be launched from specific points. This tied the carriers to said launch points, limiting their geographical flexibility. In 1976, enough missiles and bombers were available to release the carriers from SIOP. This didn't mean the end of the nuclear mission, though. Instead, they would now form part of the nuclear reserve, hitting whatever targets were missed in the initial wave of attacks.

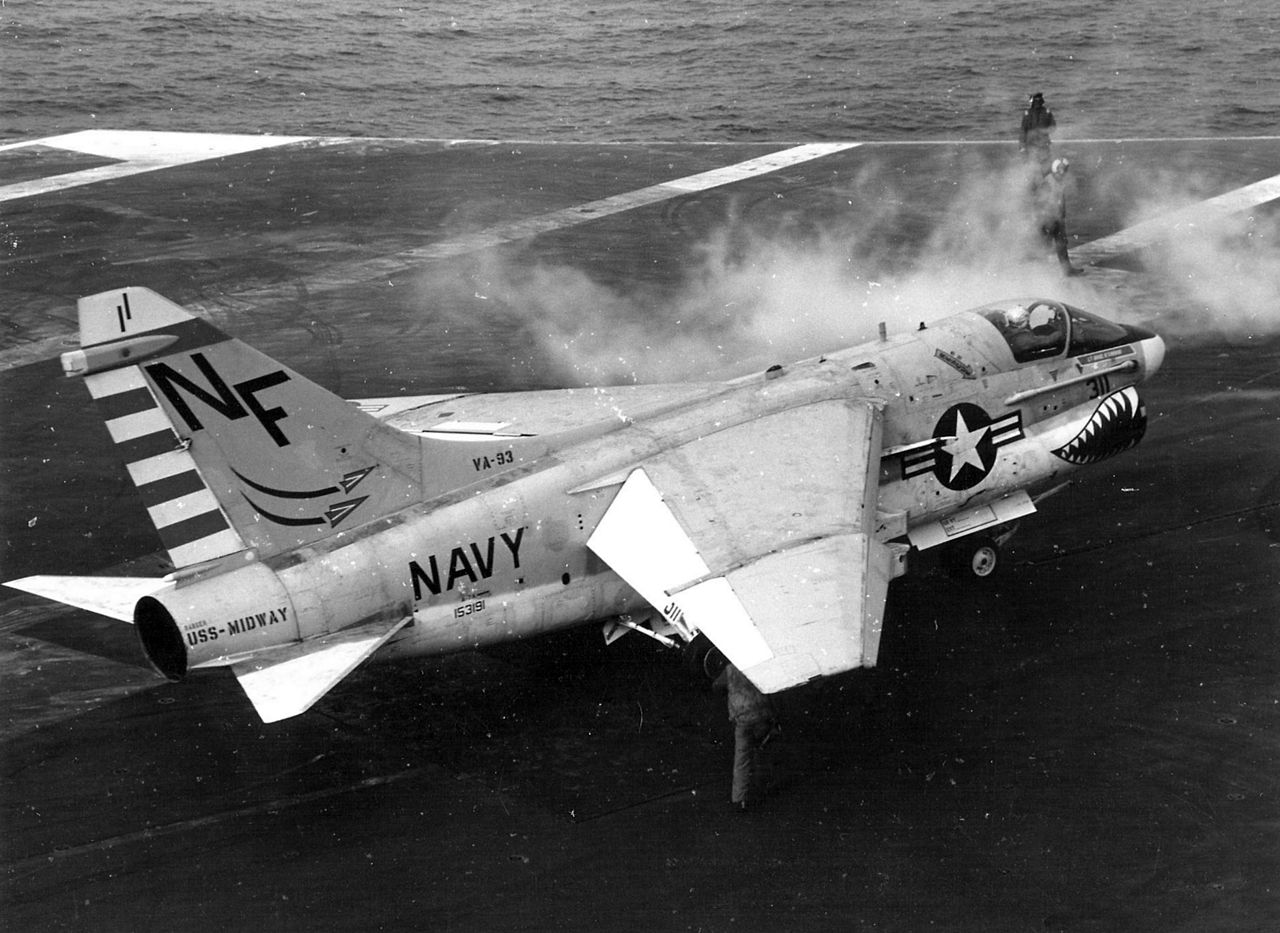

An A-7A Corsair aboard Midway

In September 1991, George Bush announced that the US would withdraw all tactical nuclear weapons deployed afloat, and the Navy's tactical nuclear capabilities have lapsed. Only a few squadrons of Marine Hornets still deploy aboard carriers, and while they may still have the wiring for the nuclear mission, their software and certifications became obsolete long ago. The Super Hornet, the Navy's current mainstay, has never even had a nuclear capability, although there is some talk of certification in connection with export sales to Germany.5 Some residual capability remains on the Nimitz class carriers, which were designed to handle nuclear weapons, although it would take time to restore it. The new Gerald R Ford class carriers are being designed without even that capability. All of this has been made possible by the development of modern guided weapons. In the 1950s and 60s, you could destroy targets with either a single plane and a nuclear weapon or by using massive air raids to hit it with enough conventional bombs. Today, a single plane with a JDAM can do the same job, at a much lower fiscal, environmental and political cost.

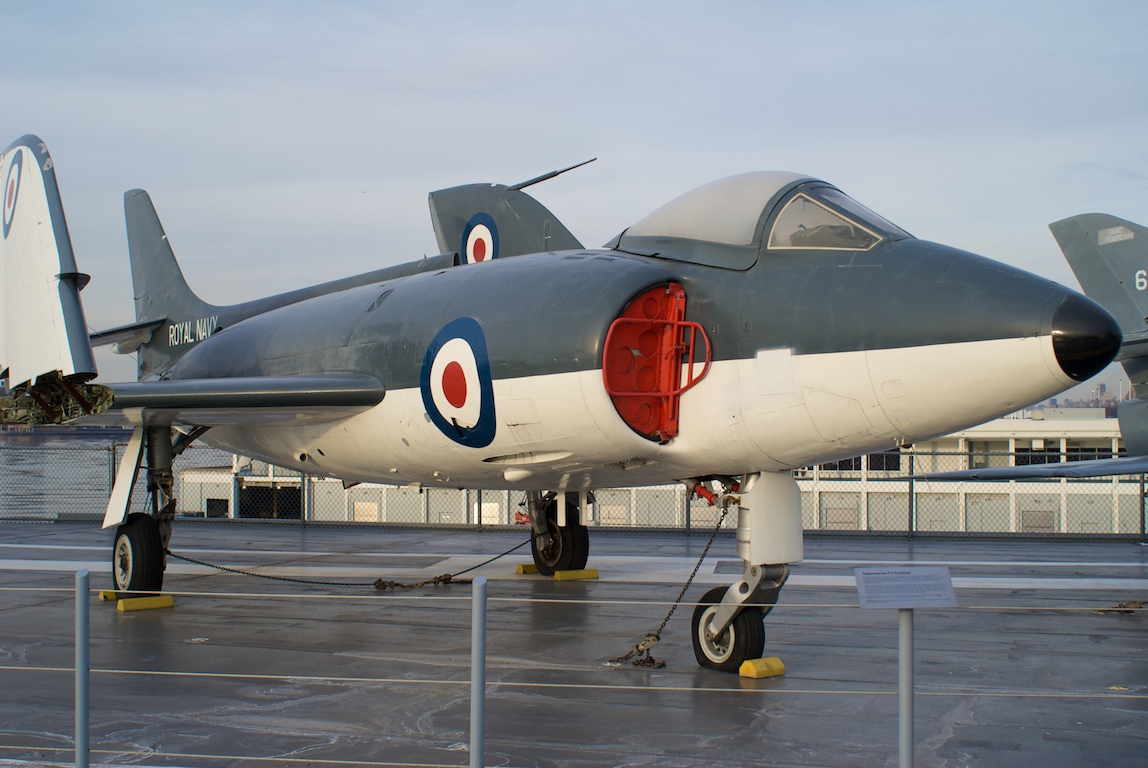

Supermarine Scimitar

But the US wasn't the only power to take nuclear weapons aboard its carriers. The British also fitted their carriers for the nuclear strike mission, although for rather different reasons. In the years immediately after the war, the British were extremely concerned that the new Soviet Sverdlov class cruisers would function as fast commerce raiders, sweeping away the ASW escort forces that they usually used to protect convoys. Any surface hunting group would be too slow to counter them, so they planned to attack them from the air, using a new strike aircraft, which became the Blackburn Buccaneer. To keep the Buccaneer outside the range of the ship's AA guns, it would attack with a nuclear weapon, initially the Red Beard bomb.6 But the Red Beard was ready before the Buccaneer, so it was fitted to the earlier Supermarine Scimitar and De Havilland Sea Vixen as well. And while the main focus of these weapons, five of which were taken to sea aboard each British carrier, was on naval strike, the RN also planned to attack land targets, primarily tactical ones like ports and airfields, as well. Nuclear capability was also important "East of Suez", as it gave the British the ability to bring atomic weapons to bear without the diplomatic and logistical headaches of land basing.

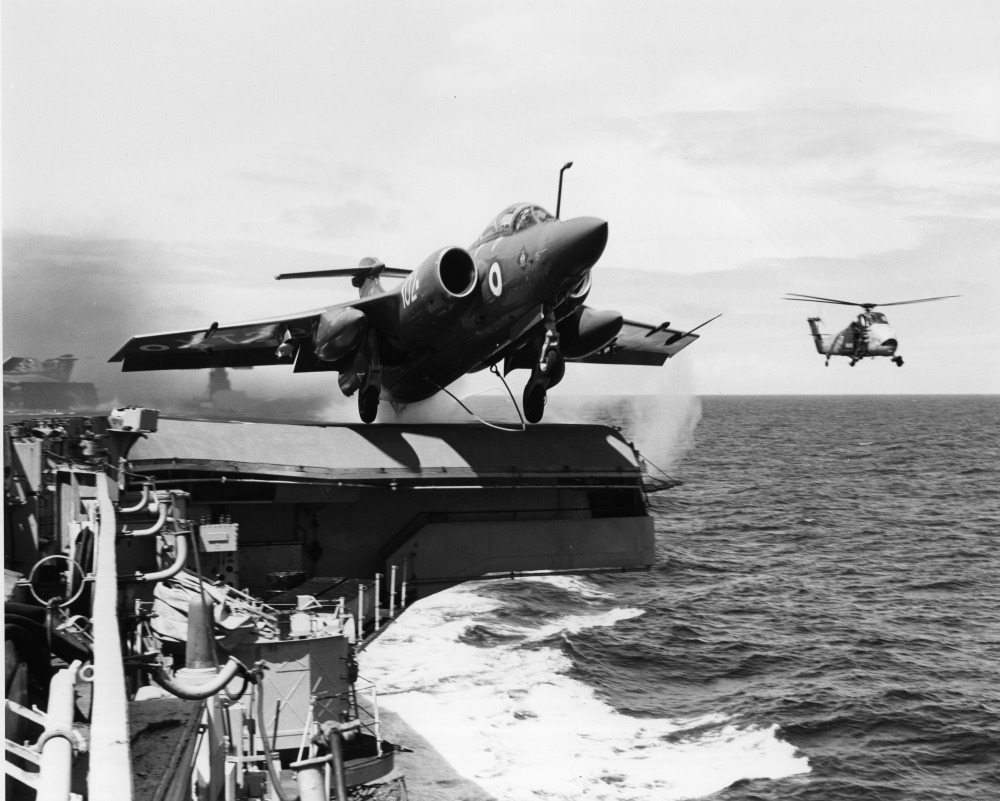

A Buccaneer is catapulted off

In the late 60s, Red Beard was replaced by the lighter WE.177, which could also be used as a nuclear depth charge. The Buccaneer, which in service proved tremendously successful and turned out to be one of the greatest low-level aircraft ever,7 was eventually retired by the RN when the last conventional carriers were withdrawn in the late 70s, but the nuclear mission was important enough that the Sea Harrier FRS.18 that replaced it retained nuclear capability, for largely the same anti-shipping role that the Buccaneer had originally been intended to fulfill. WE.177 was finally retired by the RN in 1992.

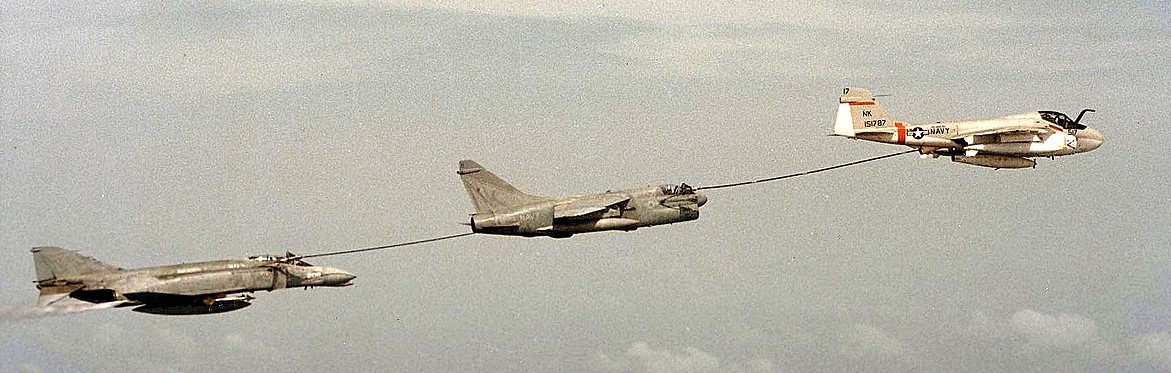

It's not particularly nuclear-related, but this is a KA-6D refueling an A-7E which in turn is refueling an F-4N

But not every nuclear weapon the that navies took to sea was intended to attack land or surface targets. Particularly during the 1950s, panic over the submarine threat led to wide investment in nuclear warheads on various anti-submarine weapons. We'll look at them next time.

1 Heinemann, when handed the spec sheet, offered the Navy an airplane half the size that everyone else thought would be required, and delivered the prototype 270 lb underweight. "Heinemann's Hot Rod" was so small that the wings didn't even need to fold.

2 By this point, the FJ was obsolescent as a fighter, which is why it ended up in the attack squadrons instead.

3 This doesn't seem to have become possible until the 1980s, with a number of plans being draw up in that era. The end of the Cold War meant that most were cancelled, and the first operational weapon was the B61-11, which entered service in 1997.

4 This isn't an exhaustive list of nuclear-capable planes flown off of carriers. The F-4 Phantom was also equipped to carry nuclear weapons, although as far as I'm aware it was not a major mission for the aircraft.

5 Germany is committed to supplying a certain number of nuclear delivery platforms to NATO, and is currently facing a shortfall in that role with the retirement of its Tornadoes.

6 Between 1942 and the late 50s, the British used Rainbow Codes, composed of a color and another word for most of their advanced projects.

7 There are many credible stories of Buccaneers flying under power lines and the like, apparently enabled by a quirk of aerodynamics that let the plane sit in a very stable ground effect.

8 Note that the S stood for Strike, which in NATO parlance at the time was explicitly nuclear.
